– Stereo amplifier– 500 W per channel @ 4 ohms– Class D topology– Bridged/70 V/100 V operation

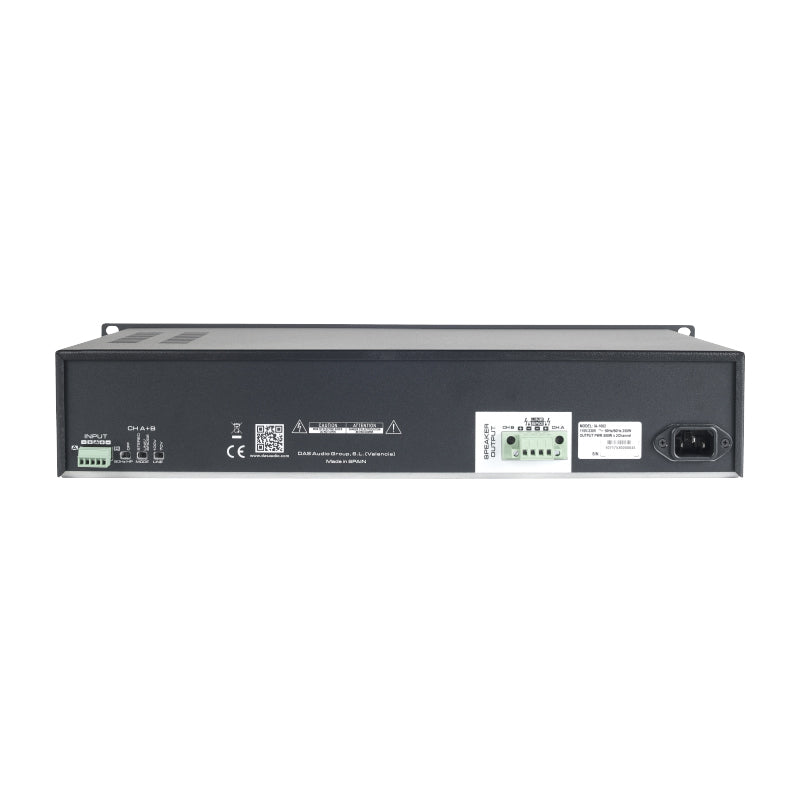

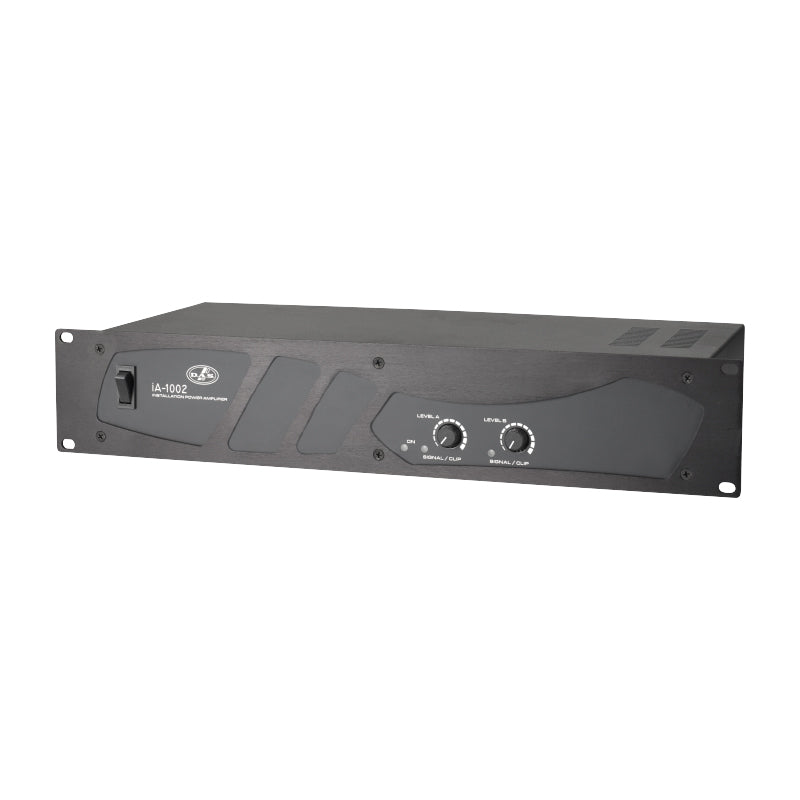

The IA Series IA-1002 offers 500 W per channel at four ohms. The amplifiers offer operation in bridge mode or powering 70/100 V lines. The rear panel incorporates switches for activating an 80 Hz high-pass filter, stereo or line/bridge modes and selection between 70 or 100 V lines. Input and output connections are made by way of Phoenix connectors. The IA-1002 is housed in a rugged 2-unit high steel chassis.

TECHNICAL DATA

Stereo Mode (both channels driven)
8 ohms EIA 1 kHz 1% THD 2 x 250 W
4 ohms EIA 1 kHz 1% THD 2 X 500 W
Bridge Mono Mode
8 ohms EIA 1 kHz 1% THD 1 x 1000 W
Frequency Response 0 / – 0.5 dB (20 Hz – 30 kHz)
Total Harmonic Distortion (20 Hz-20 kHz) 0.08
Voltage Gain 30 dB
Output Circuitry Class D
AC Requirements 1.75 A, 230 VAC
3.5 A 115 VAC
Dimensions (H x W x D) 8.84 x 48.3 x 20.8 cm
3.48 x 19 x 8.2 in)
Weight 3.45 kg (7.6 lb)
