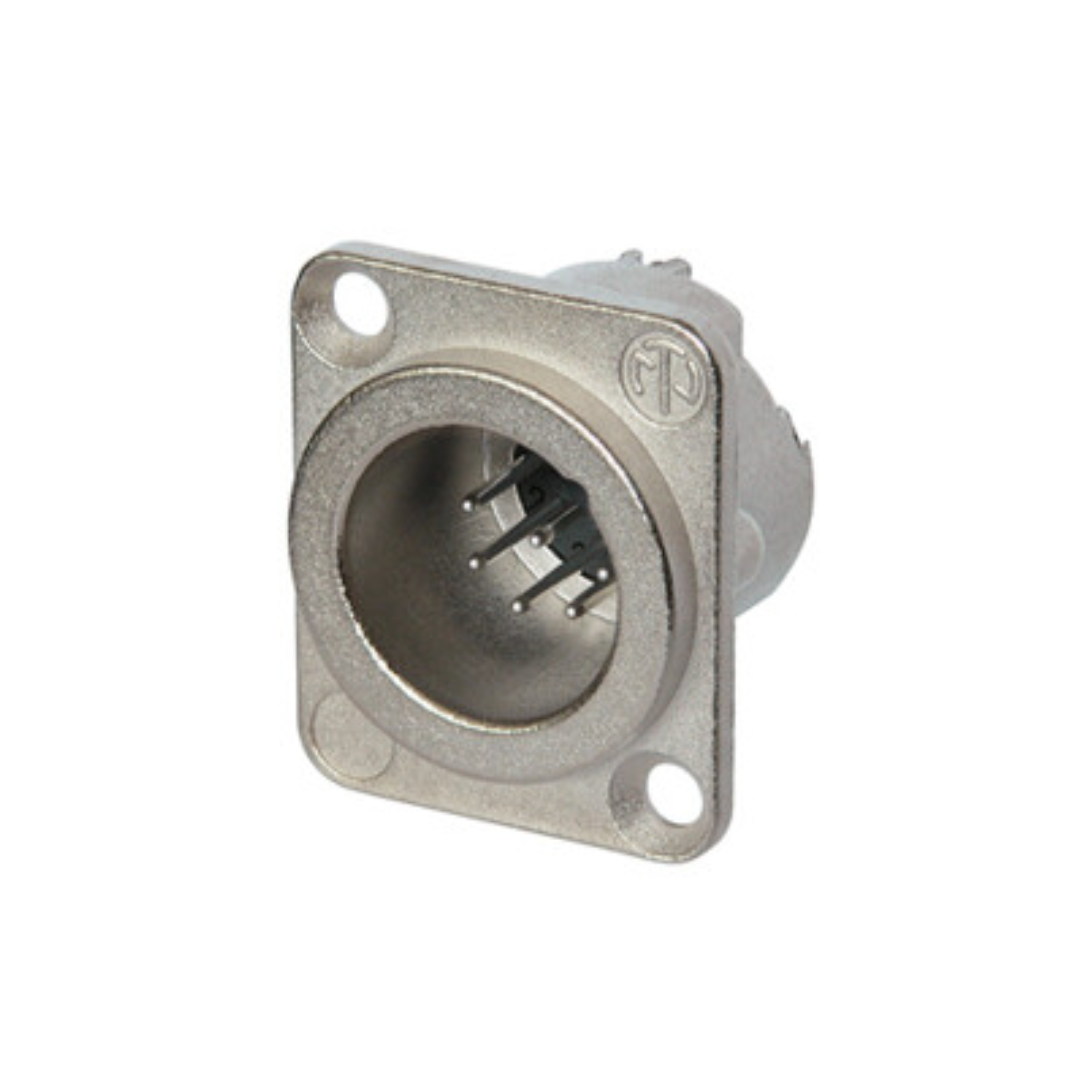

Key Features

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Male connector's retention bar replaces plastic design with all metal version improving pull-out force
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions.

Technical Information

Product

• Connection Type: XLR
• Gender: Male

Electrical

• Capacitance between contacts:   ≤ 9 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 5 A
• Rated voltage: < 50 V

Mechanical

• Insertion force:  ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: Max. 1.0 mm²
• Wiresize: Max. 18 AWG
• Wiring:  Solder contacts
• Locking device:  Latch lock
• Chassis shape: D

Material

• Contact plating: 2 µm Ag
• Contacts: Brass (CuZn35Pb2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental

• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
