Technical Specifications

Description

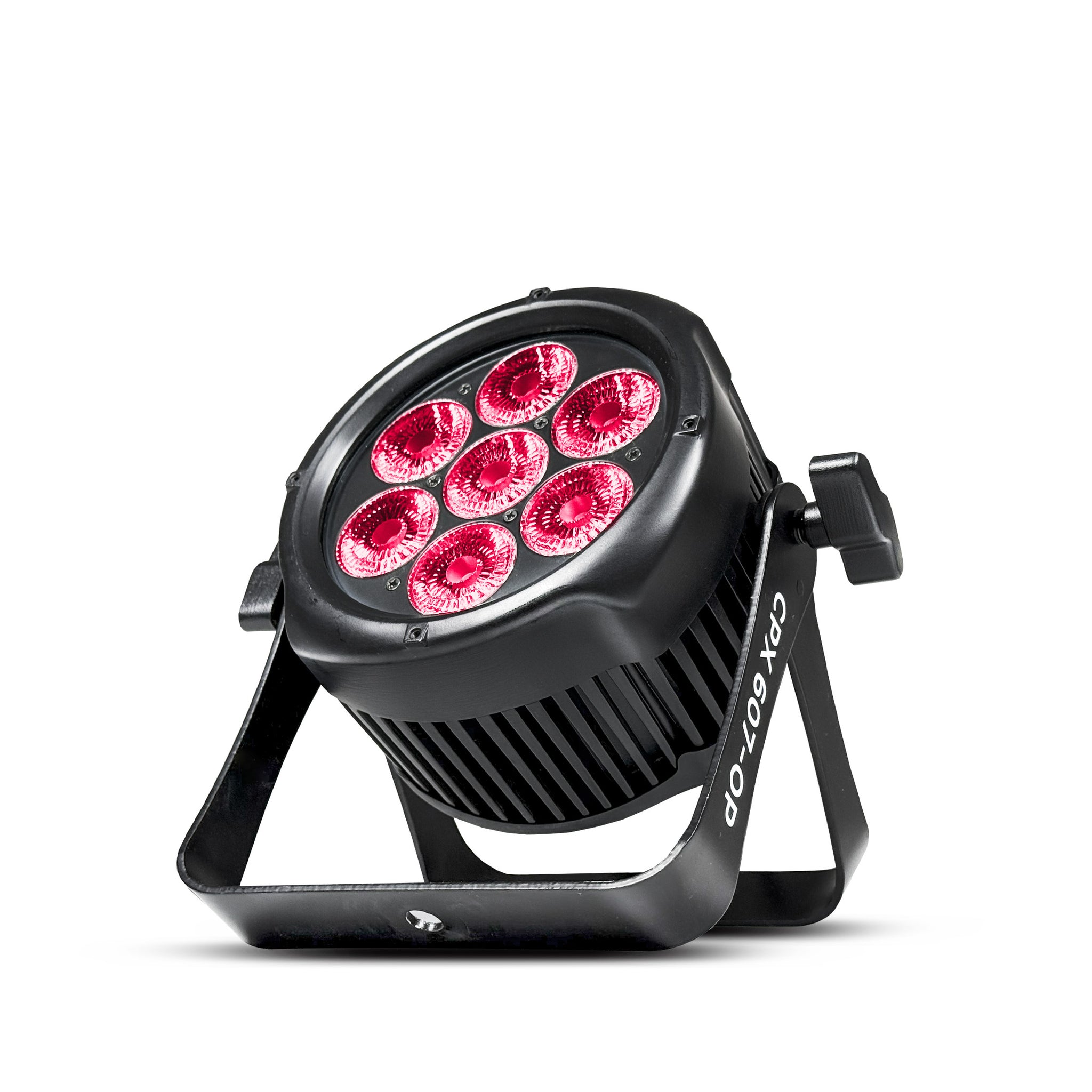

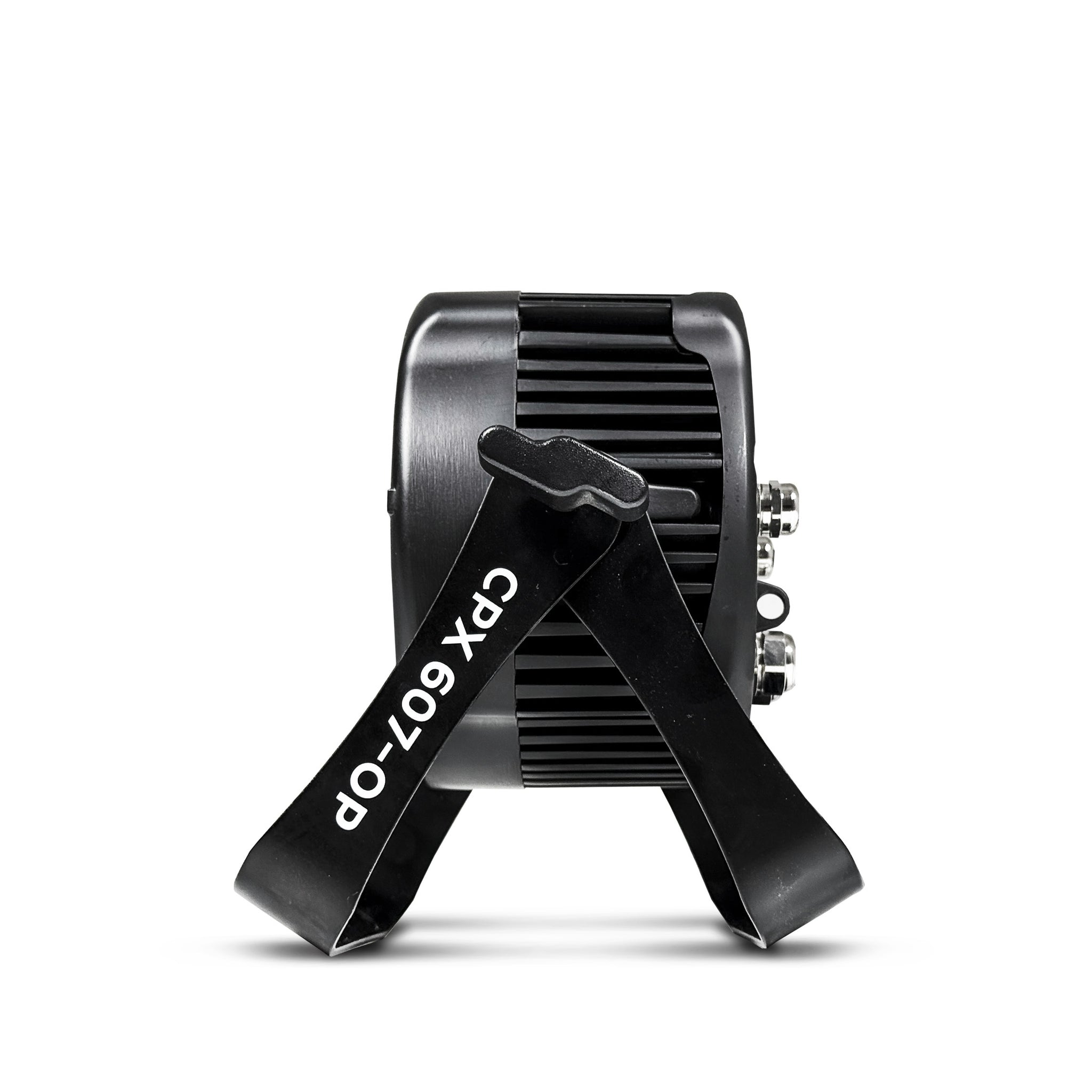

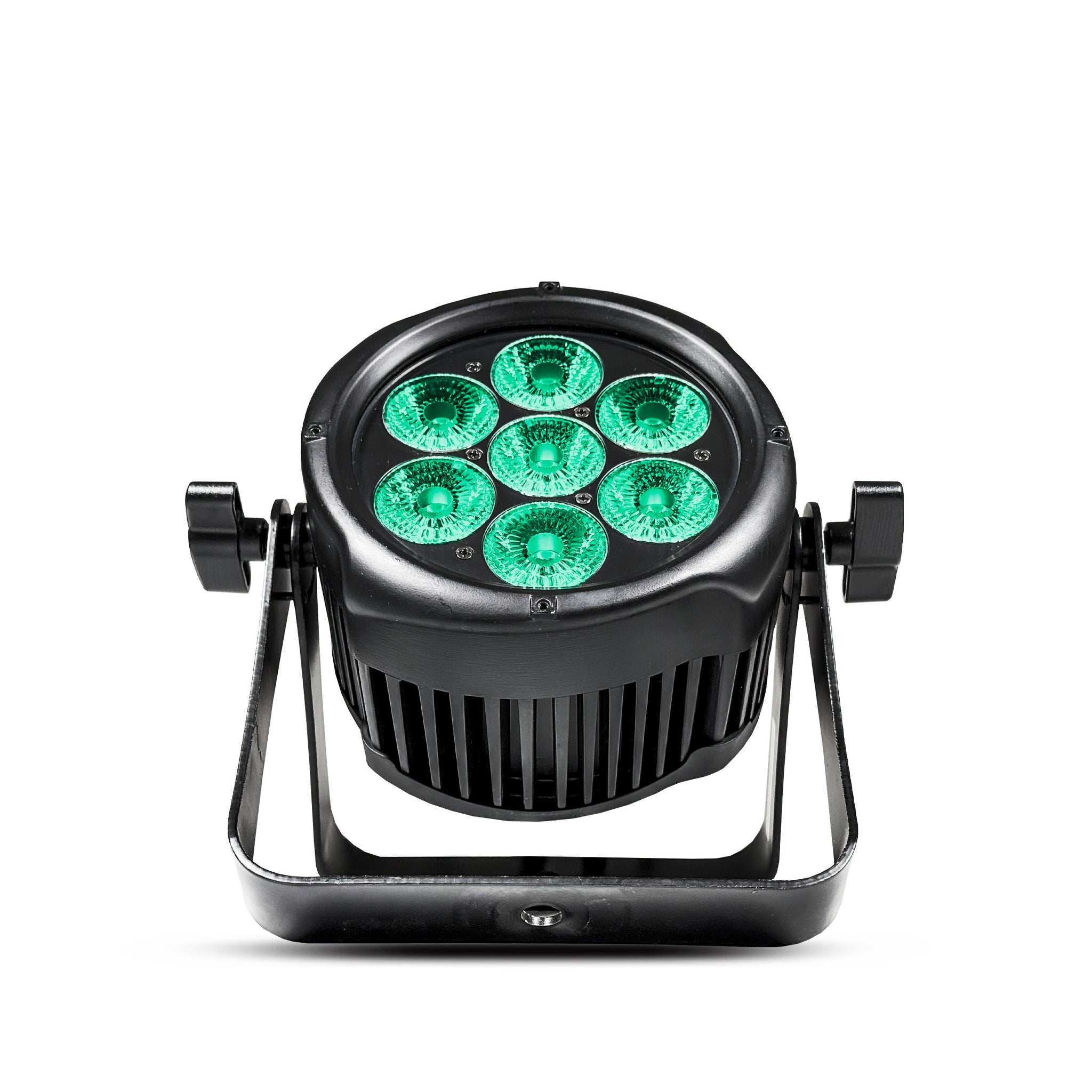

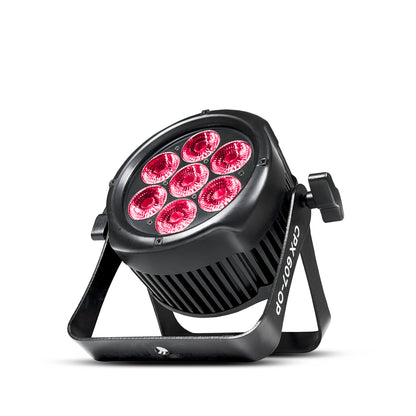

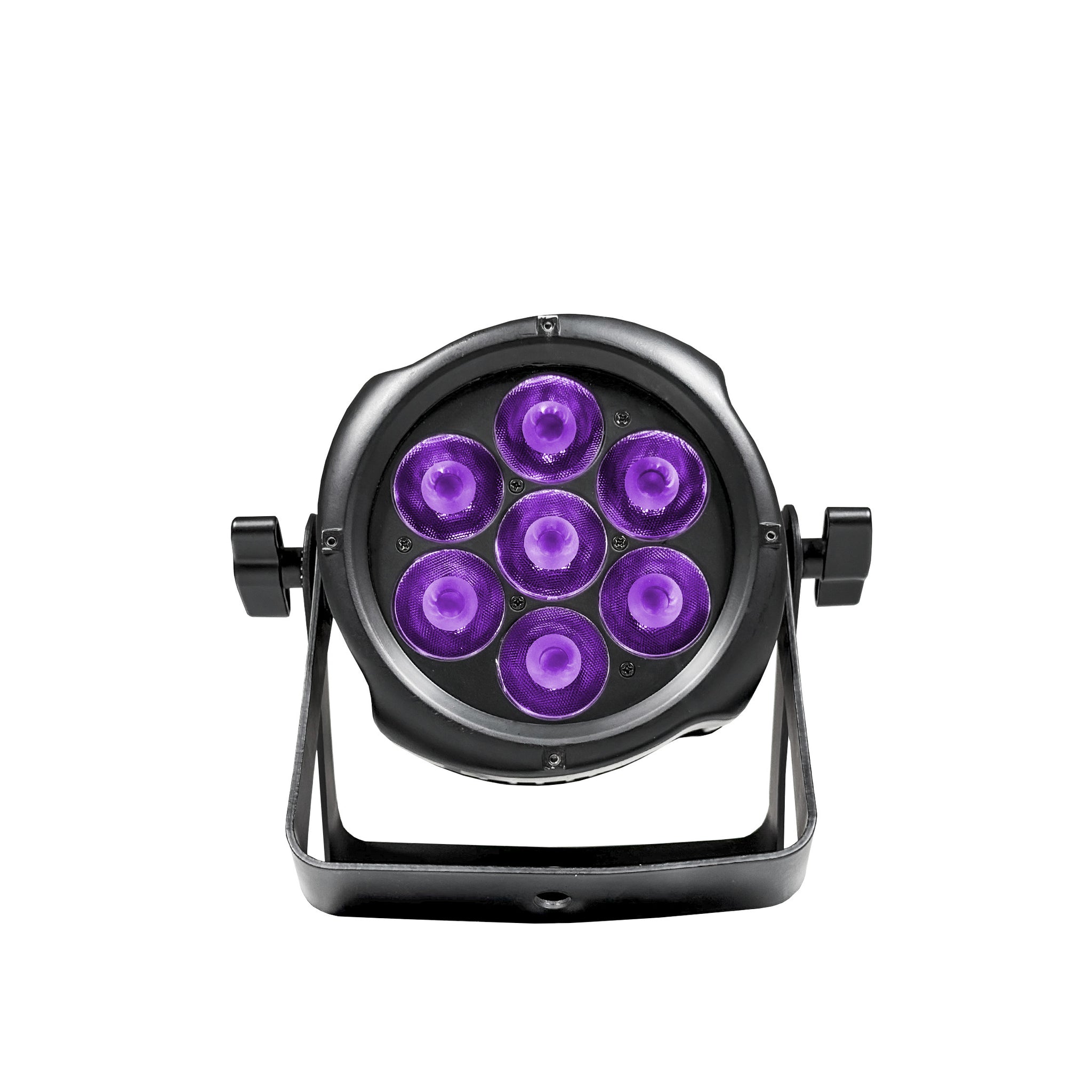

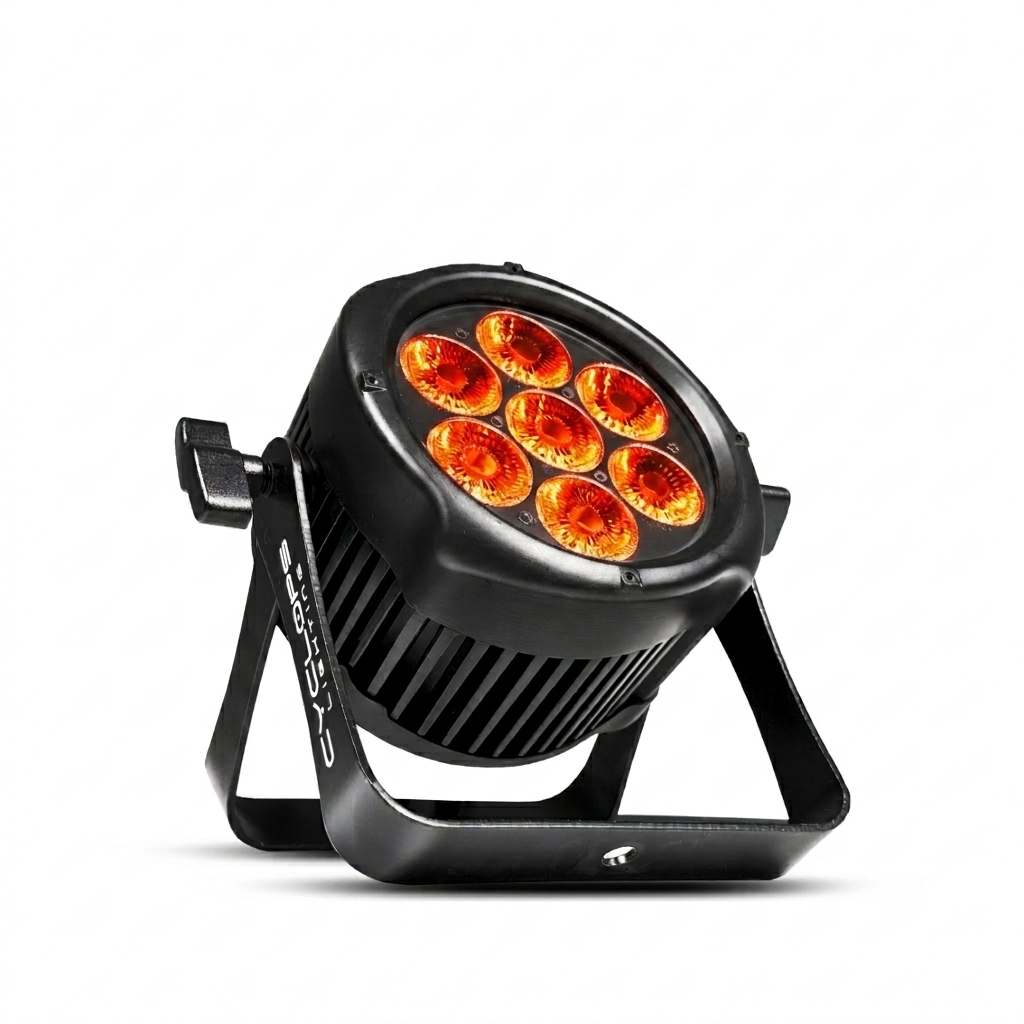

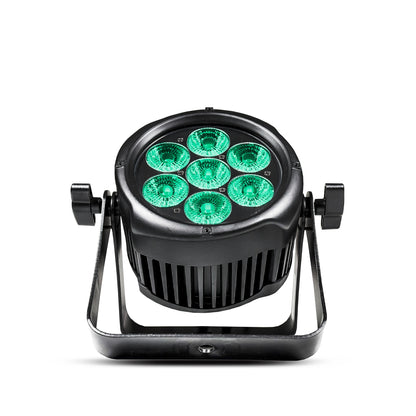

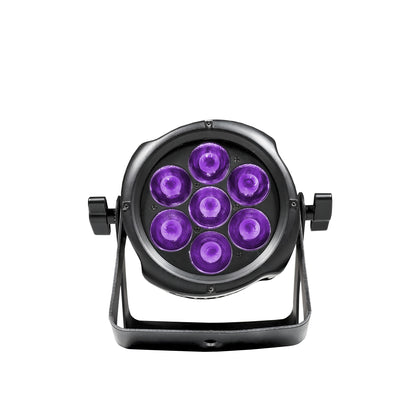

CPX 607OP

SOURCE

  • Light source: 7 x 10 watts, RGBWA + UV 6 in 1 LEDs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 15°

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • Color mixing: RGBWA+UV
  • Strobe and fade effect
  • Built-in color and dynamic macros

 CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • Display: TFT displayer with 4 buttons
  • Control channels: 3, 6, 8 , 10, 13 CHs

 ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 75 watts

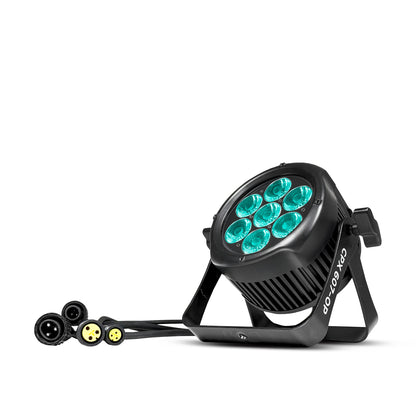

CONNECTIONS

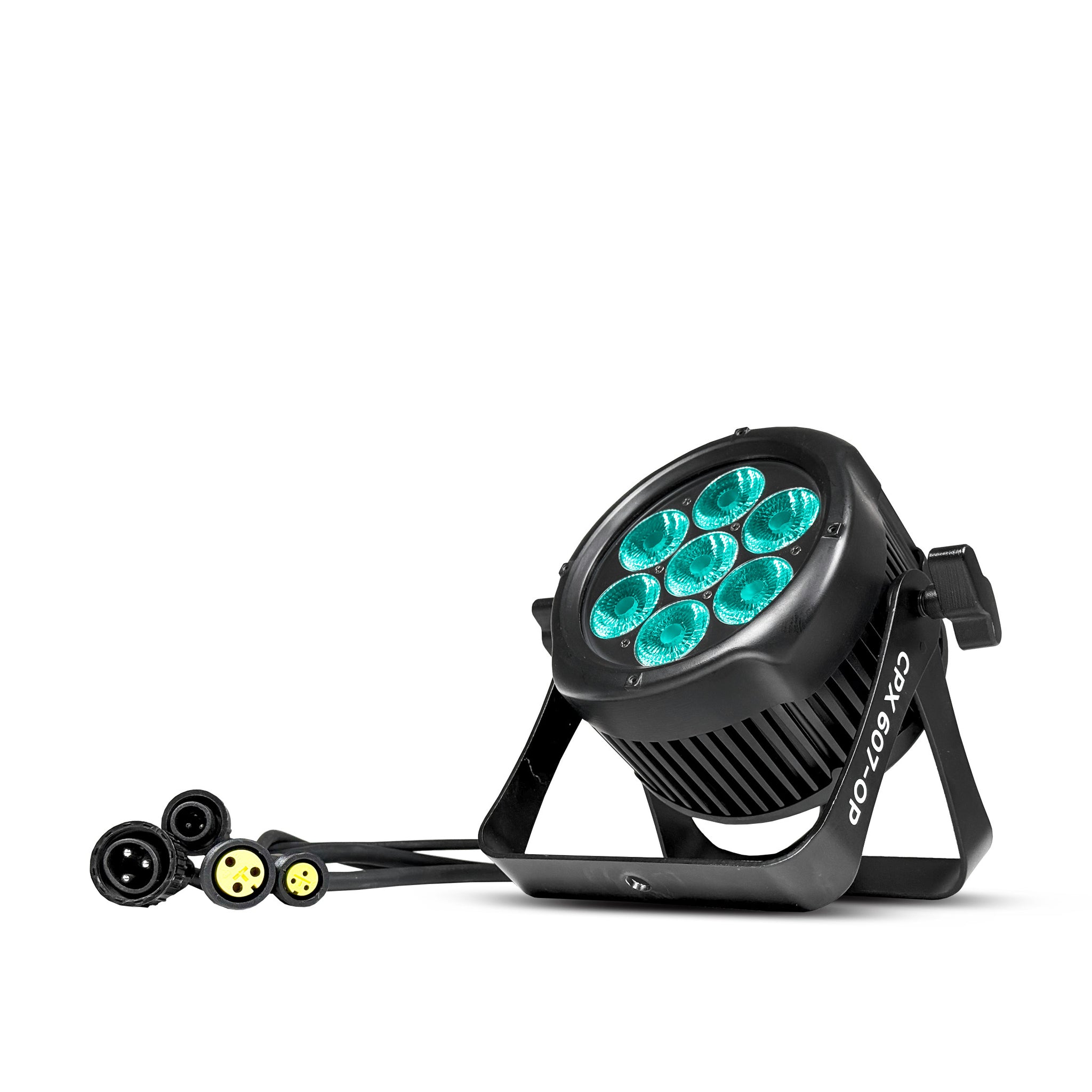

  • DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
  • Power connections: IP Power In/Out cable, 3 pin screw lock connectors

PHYSICAL

  • Dimensions: 219 x 113 x 225mm
  • Net weight: 3.4 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -30°C/45°C
