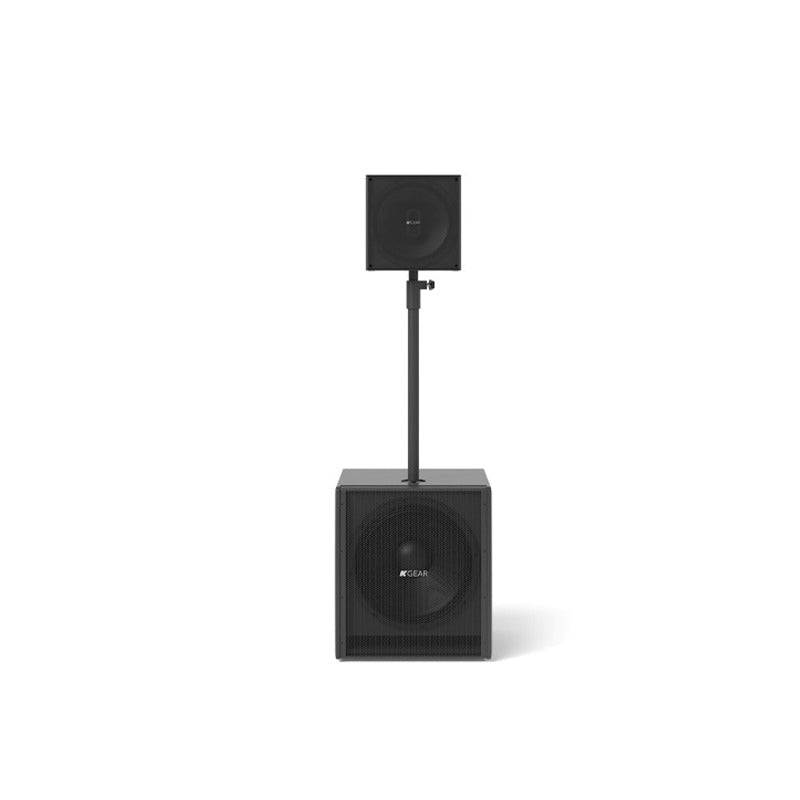

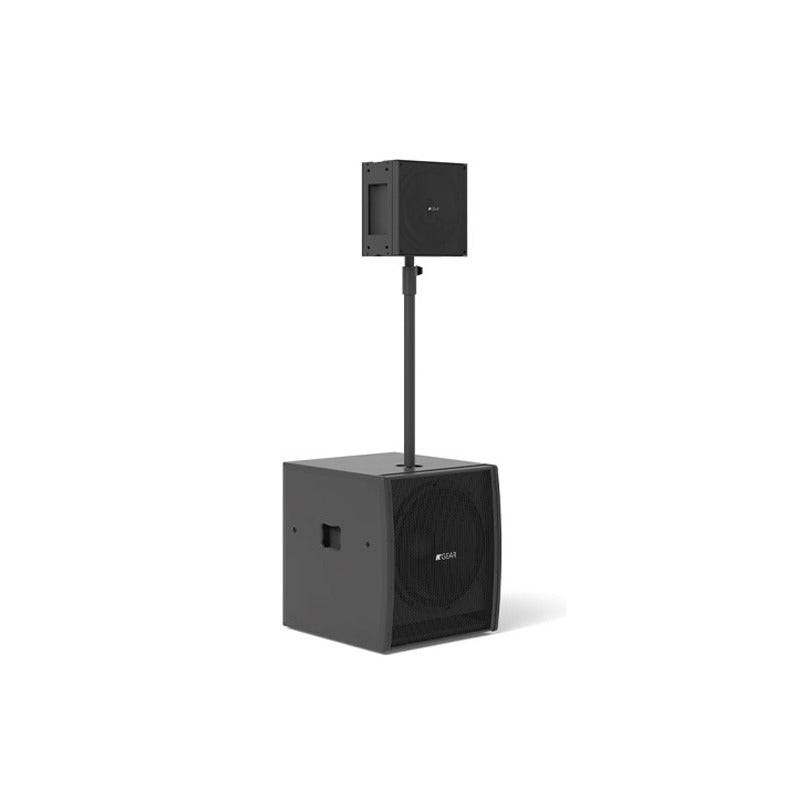

KGEAR GP1812 - Subwoofer + Slim Array Element (Passive)

Name: KGEAR GP1812 - Subwoofer + Slim Array Element (Passive)
Brand: KGEAR
SKU: GP1812

Brand: KGEAR

Categories: Portable Speaker Systems

SKU: GP1812

Heavy duty 18” passive subwoofer combined with GH12, our 12” passive coaxial satellite featuring K-array™ SAT® (Slim Array Technology).

Designed for small to medium high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditoriums, pubs and clubs.

High performance to size/weight ratio featuring easy and fast setup possibility.

User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.

Product variants

Available

Pairs well with

Technical Specifications

Description

GENERAL Power Handling: 750W subwoofer + 200W satellitePeak Power: 1500W subwoofer + 400W satelliteImpedance: 8Ω subwoofer + 32Ω satelliteFrequency Range: 45 Hz - 20 KHz (-6 dB average)Maximum SPL(1): 129dB (peak)Continuos SPL: 117 dBCoverage: V.30° - H.90°

TRANSDUCERS Subwoofer: 18” ferrite magnetMid High Frequency: 12” coaxial with 1” compression driver ferrite magnet

AUDIO I/O Speakon

PHYSICAL OVERVIEW

SUBWOOFER Width: 545mm (21,46in)Height: 610mm (24,02in)Depth: 600mm (23,6in)Weight: 34,4kg (75,84lbs)Material: birch plywoodRating: IP41

SATELLITEWidth: 327mm (12,87in)Height: 334mm (13,15in)Depth: 198mm (7,79in)Weight: 13,8kg (30,43lbs)Material: stainless steelRating: IP54
