PIXIBAR - RGB Digital LED Bar Series

Name: PIXIBAR - RGB Digital LED Bar Series
Brand: Cyclops Lighting
SKU: PB5IS24RGB12425028

Brand: Cyclops Lighting

Categories: LED Pixels

SKU: PB5IS24RGB12425028

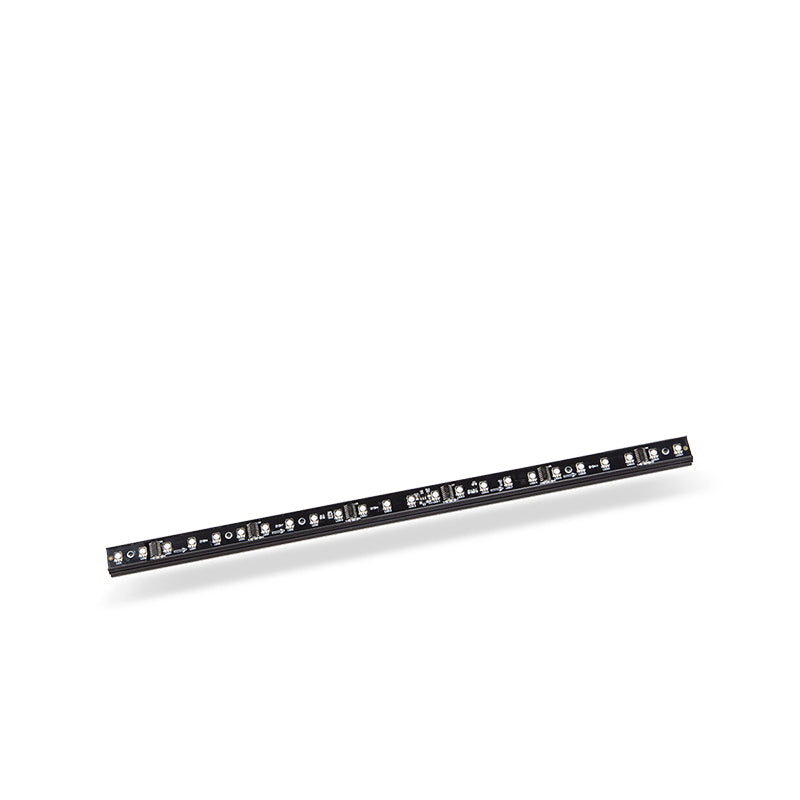

The PIXIBAR is a versatile RGB LED pixel bar designed for dynamic lighting effects across diverse installations. From compact variations like the PIXIBAR Mini 24-IC (24 LEDs) to full-length variations such as the PIXIBAR 48-ID (1m, 48 LEDs), this pixel bar deliver vibrant color mixing and stunning pixel effects for linear and grid setups on walls, ceilings, and custom rigs.

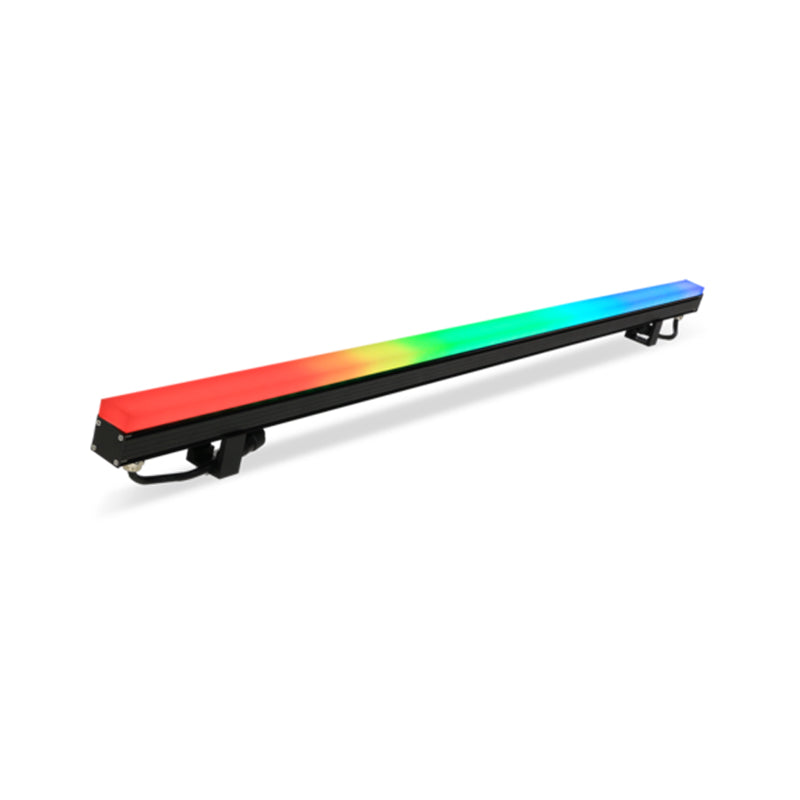

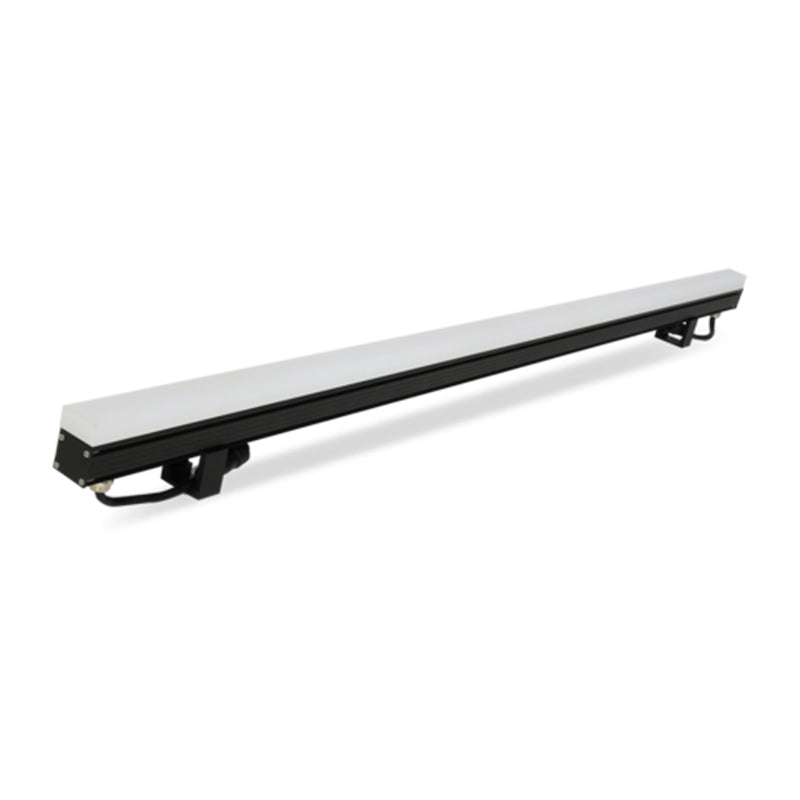

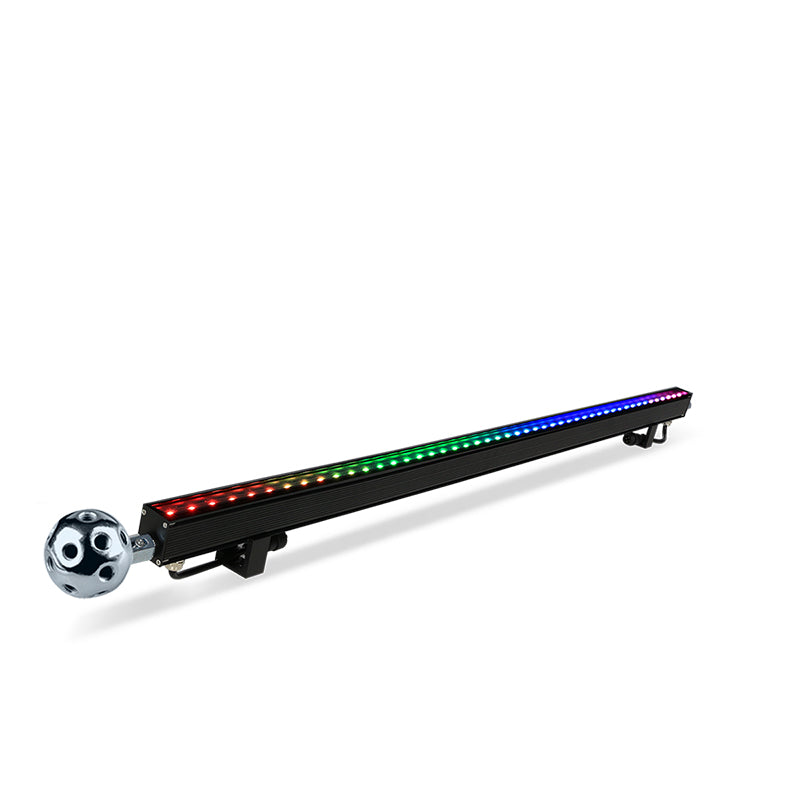

The PIXIBAR 12-IS (0.25m, 12 LEDs) and PIXIBAR 24-IS (0.5m, 24 LEDs) are ideal for smaller spaces or subtle accents, while the PIXIBAR 36-IS (0.75m, 36 LEDs) provides a balanced mid-sized option. For advanced, multi-dimensional 3D installations, the double-sided PIXIBAR D 48-IC (1m, 48 LEDs) features a fixing ball for multi-directional mounting. Whether building a small layout or a large-scale stage design, the PIXIBAR offers powerful control, flexible mounting, and vivid visual performance for clubs, stages, and indoor events.

Variations: PIXIBAR 12-IS

PIXIBAR 12-IS
PIXIBAR 24-IS
PIXIBAR 36-IS

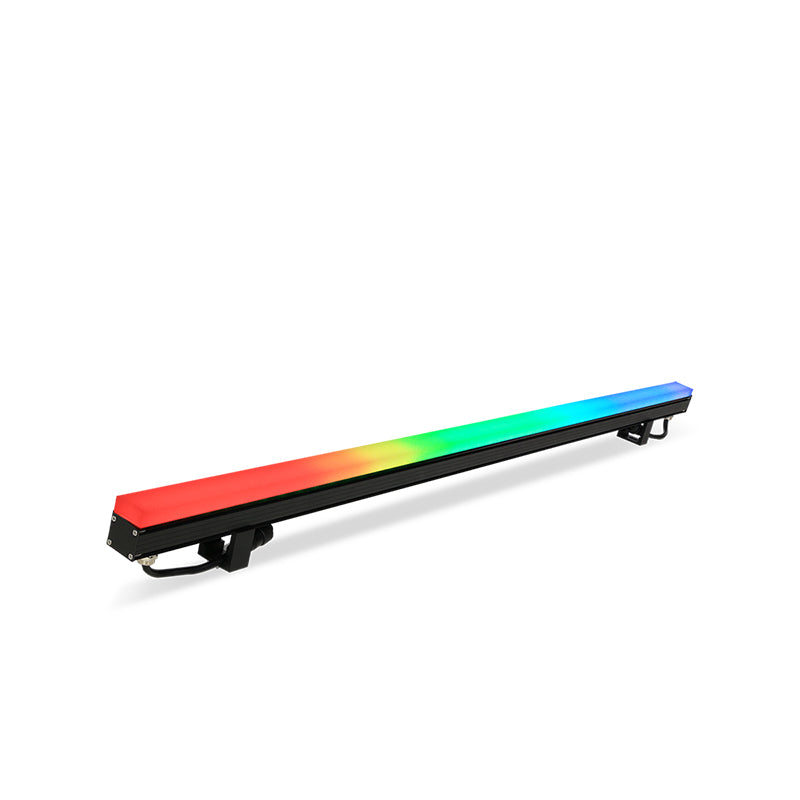

PIXIBAR 48-IS
PIXIBAR 48-ID

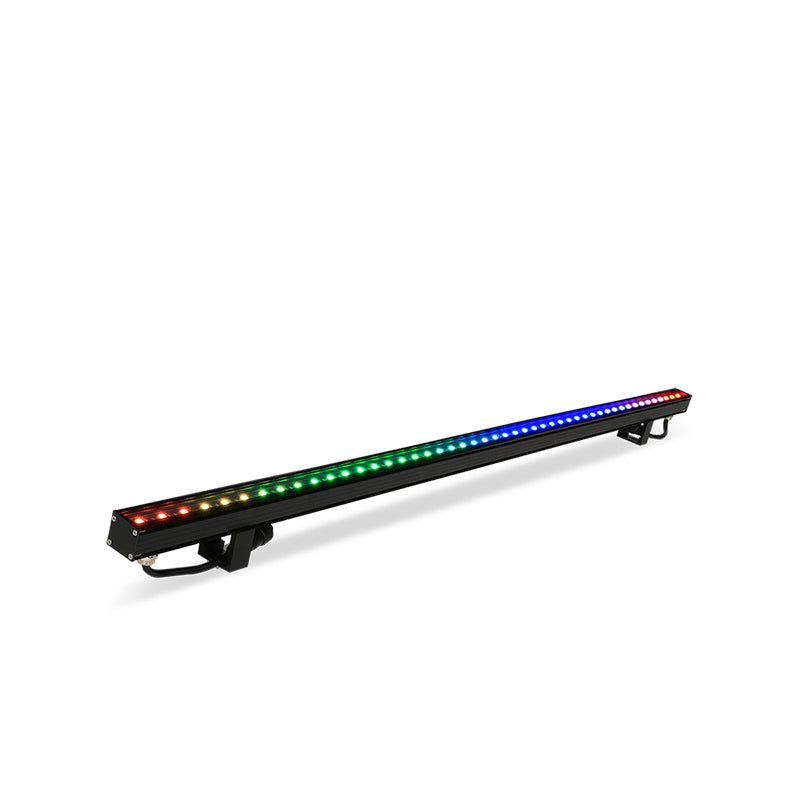

PIXIBAR 48-IC
PIXIBAR MINI 24-IC
PIXIBAR D 48-IC

Product variants

Available

Pairs well with

PIXIBAR - RGB Digital LED Bar Series

PIXIBAR 12-IS

Technical Specifications

Description

SOURCE

Light Source: SMD5050 RGB LEDs
LED Quantity: PIXIBAR 12-IS: 12 LEDs | PIXIBAR 24-IS: 24 LEDs | PIXIBAR 36-IS: 36 LEDs | PIXIBAR 48-IS: 48 LEDs | PIXIBAR 48-IC: 48 LEDs | PIXIBAR D 48-IC: 48 LEDs | PIXIBAR 48-ID: 48 LEDs | PIXIBAR MINI 24-IC: 24 LEDs

OPTICAL SYSTEM

View Angle: 120° (All models)
Cover:PIXIBAR 12-IS, 24-IS, 36-IS, 48-IS: Square opal diffuserPIXIBAR 48-ID: Dome opal diffuserPIXIBAR 48-IC, PIXIBAR D 48-IC, PIXIBAR MINI 24-IC: Clear diffuser

CONTROL & PROGRAMMING

Color Mixing: RGB
Control Protocols: DMX, 44 FPS
Address Setting: Manual
Pixels Control:PIXIBAR 12-IS: 4 pixelsPIXIBAR 24-IS: 8 pixelsPIXIBAR 36-IS: 12 pixelsPIXIBAR 48-IS, 48-IC, D 48-IC, 48-ID: 16 pixelsPIXIBAR MINI 24-IC: 24 pixels
Control Channels:PIXIBAR 12-IS: 12 CHsPIXIBAR 24-IS: 24 CHsPIXIBAR 36-IS: 36 CHsPIXIBAR 48-IS, 48-IC, D 48-IC, 48-ID: 48 CHsPIXIBAR MINI 24-IC: 72 CHs

ELECTRICAL

Input Voltage: 24V DC
Power Consumption:PIXIBAR 12-IS: 3 WattsPIXIBAR 24-IS: 5 WattsPIXIBAR 36-IS: 8 WattsPIXIBAR 48-IS, 48-IC, D 48-IC, 48-ID: 10 WattsPIXIBAR MINI 24-IC: 6 Watts

CONNECTIONS

Power & Data Connection: 15cm 5-pin male and female connection
Cable Entry: Bottom
Power & Data Cable: 4-core (1-24V DC)
DMX Connections: 3-pin and 5-pin XLR In/Out (male & female)
Power Connections: PowerCon In and Out (for specific models)

PHYSICAL & ENVIRONMENTAL

IP Rating: IP20 (All models)
Dimensions:PIXIBAR 12-IS: 250 x 28 x 50mm (without bracket) / 250 x 35 x 90mm (with bracket)PIXIBAR 24-IS: 500 x 28 x 50mm (without bracket) / 500 x 35 x 90mm (with bracket)PIXIBAR 36-IS: 750 x 28 x 50mm (without bracket) / 750 x 35 x 90mm (with bracket)PIXIBAR 48-IS: 1000 x 28 x 50mm (without bracket) / 1000 x 35 x 90mm (with bracket)PIXIBAR 48-IC: 1000 x 28 x 22mm (without bracket) / 1000 x 35 x 62mm (with bracket)PIXIBAR D 48-IC: 1000 x 28 x 39mm (without bracket) / 1000 x 35 x 79mm (with bracket)PIXIBAR 48-ID: 1000 x 28 x 50mm (without bracket) / 1000 x 35 x 90mm (with bracket)PIXIBAR MINI 24-IC: 400 x 20 x 16mm (without bracket) / 400 x 25 x 18mm (with bracket)
Housing Color:PIXIBAR 12-IS, 24-IS, 36-IS: BlackPIXIBAR 48-IS, 48-ID, 48-IC, D 48-IC, MINI 24-IC: Silver
Operating Temperature:PIXIBAR 12-IS, 24-IS, 36-IS, 48-IS, 48-ID, 48-IC, D 48-IC: -40°C to 50°CPIXIBAR MINI 24-IC: -20°C to 50°C
Weight:PIXIBAR 12-IS: 0.6 kgPIXIBAR 24-IS: 0.8 kgPIXIBAR 36-IS: 1.2 kgPIXIBAR 48-IS, 48-ID, 48-IC, D 48-IC: 1.5 kgPIXIBAR MINI 24-IC: 0.5 kg
