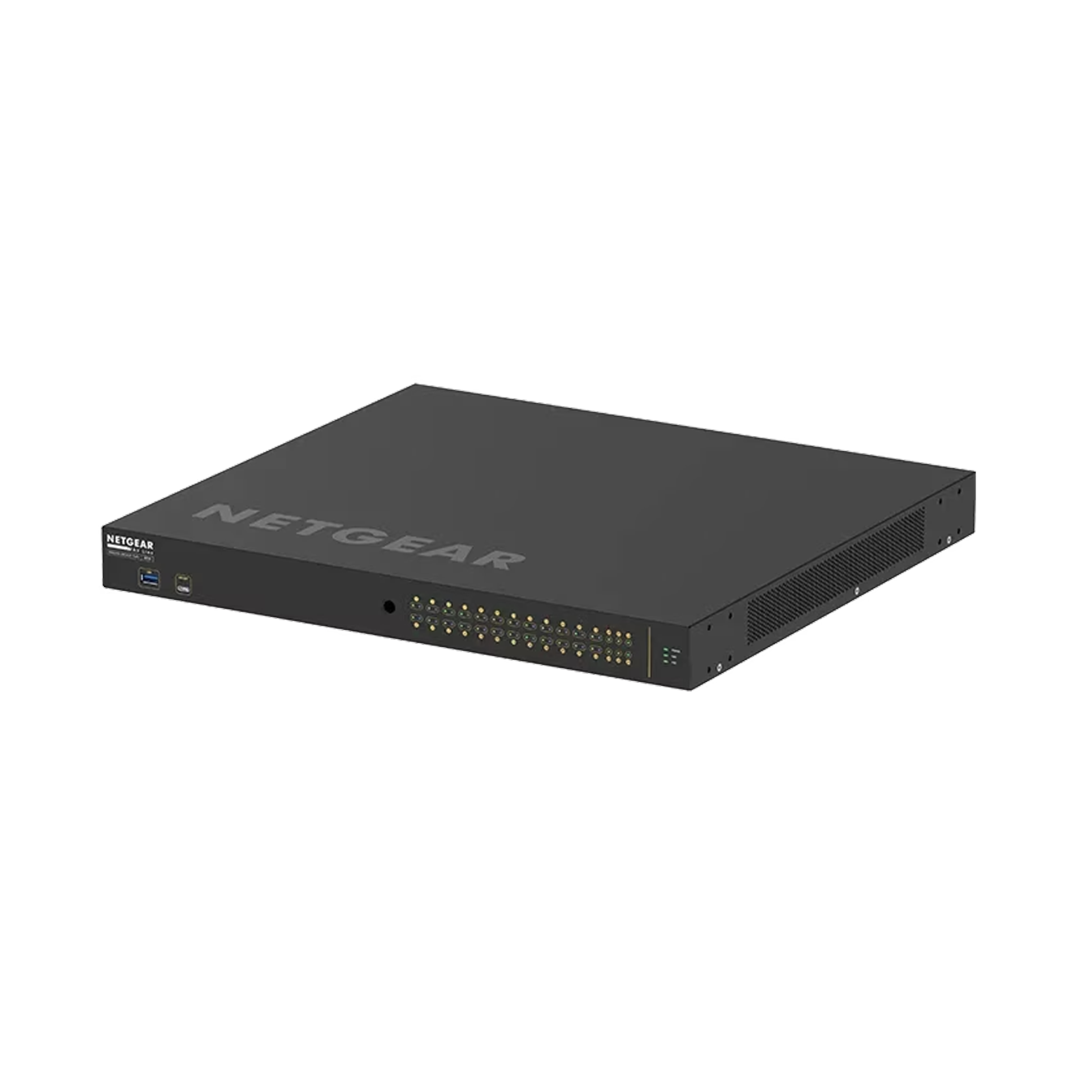

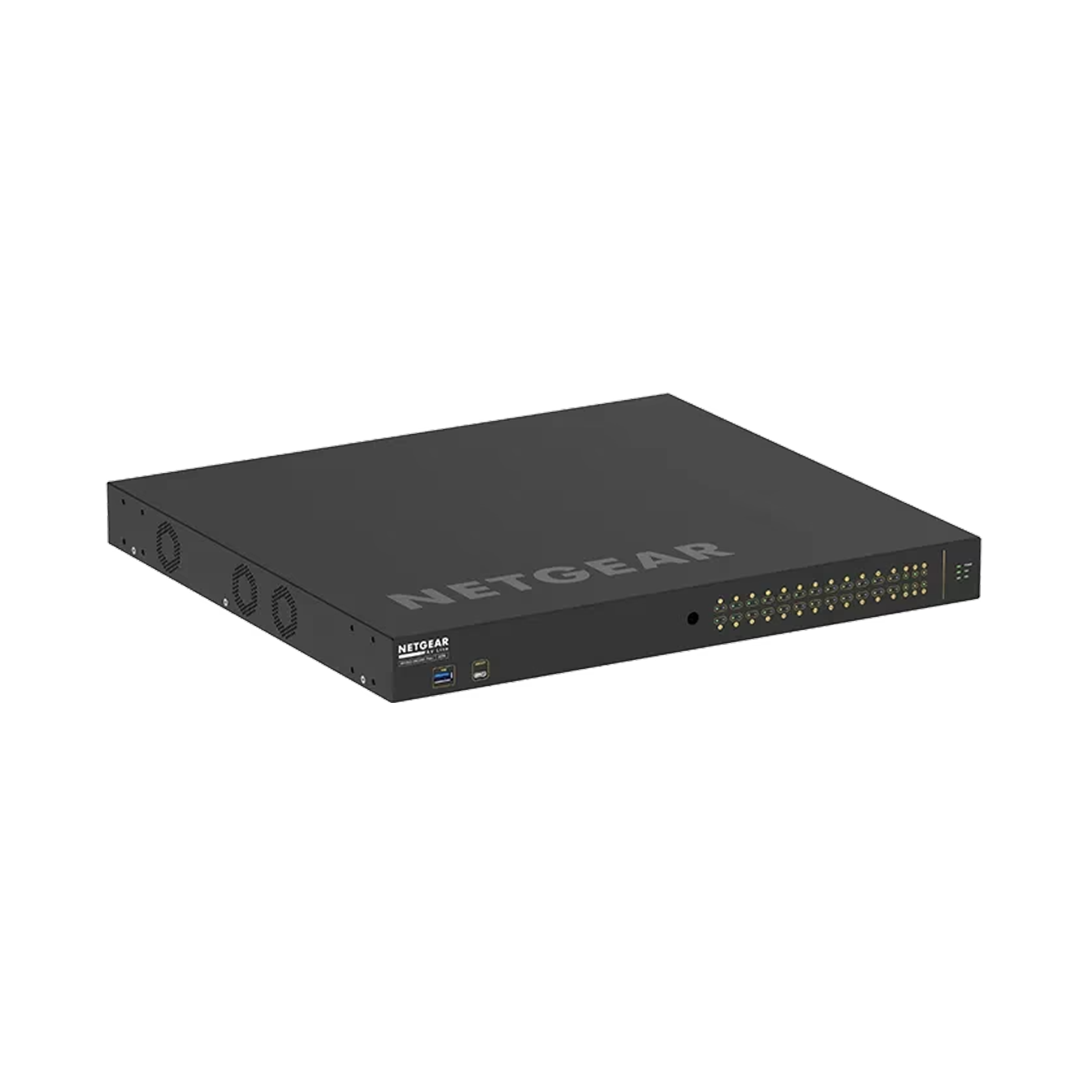

Name: Netgear ProAV AV Line GSM4230PX 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
Brand: Netgear ProAV
SKU: GSM4230PX-100EUS

Brand: Netgear ProAV

Categories: Network Switches

SKU: GSM4230PX-100EUS

24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch

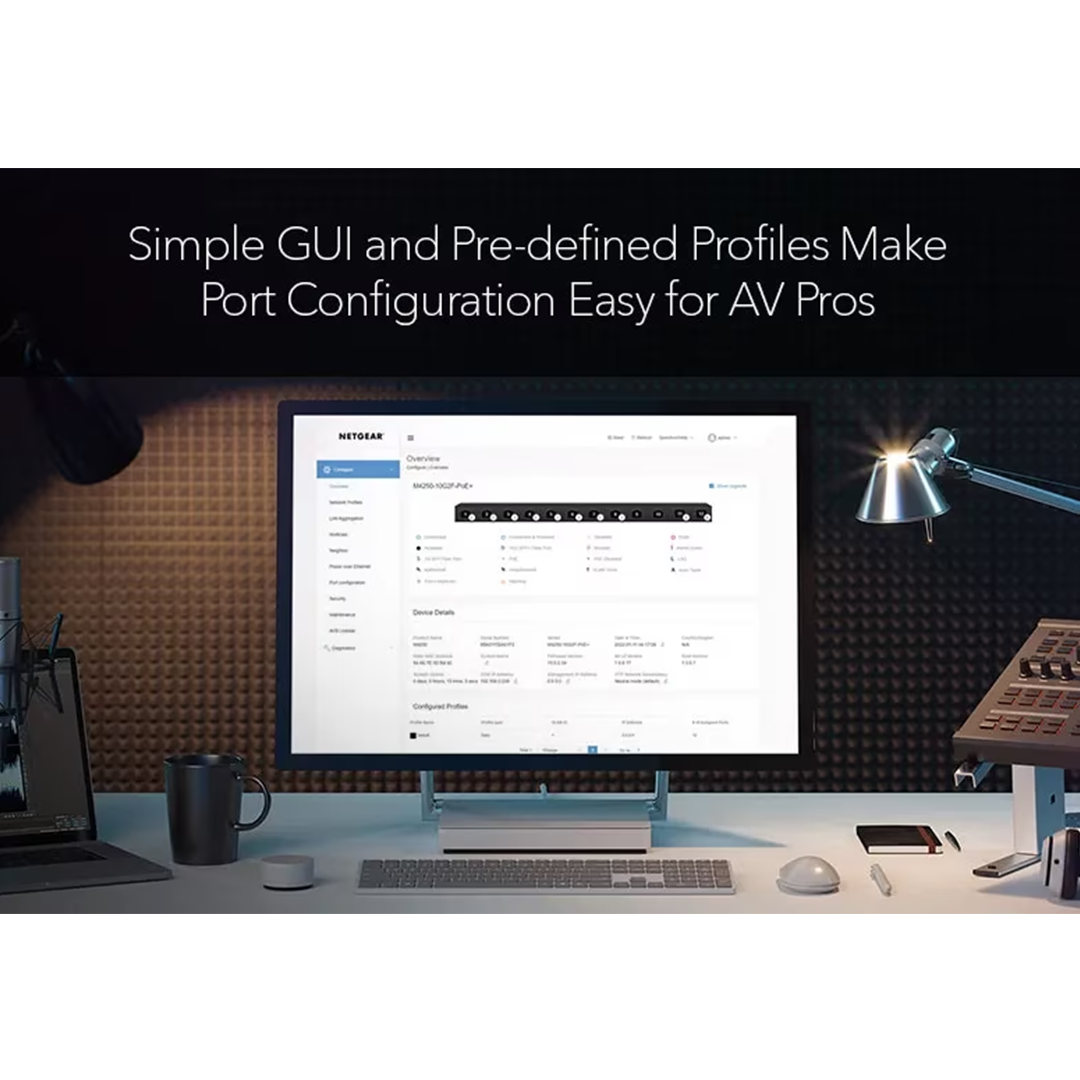

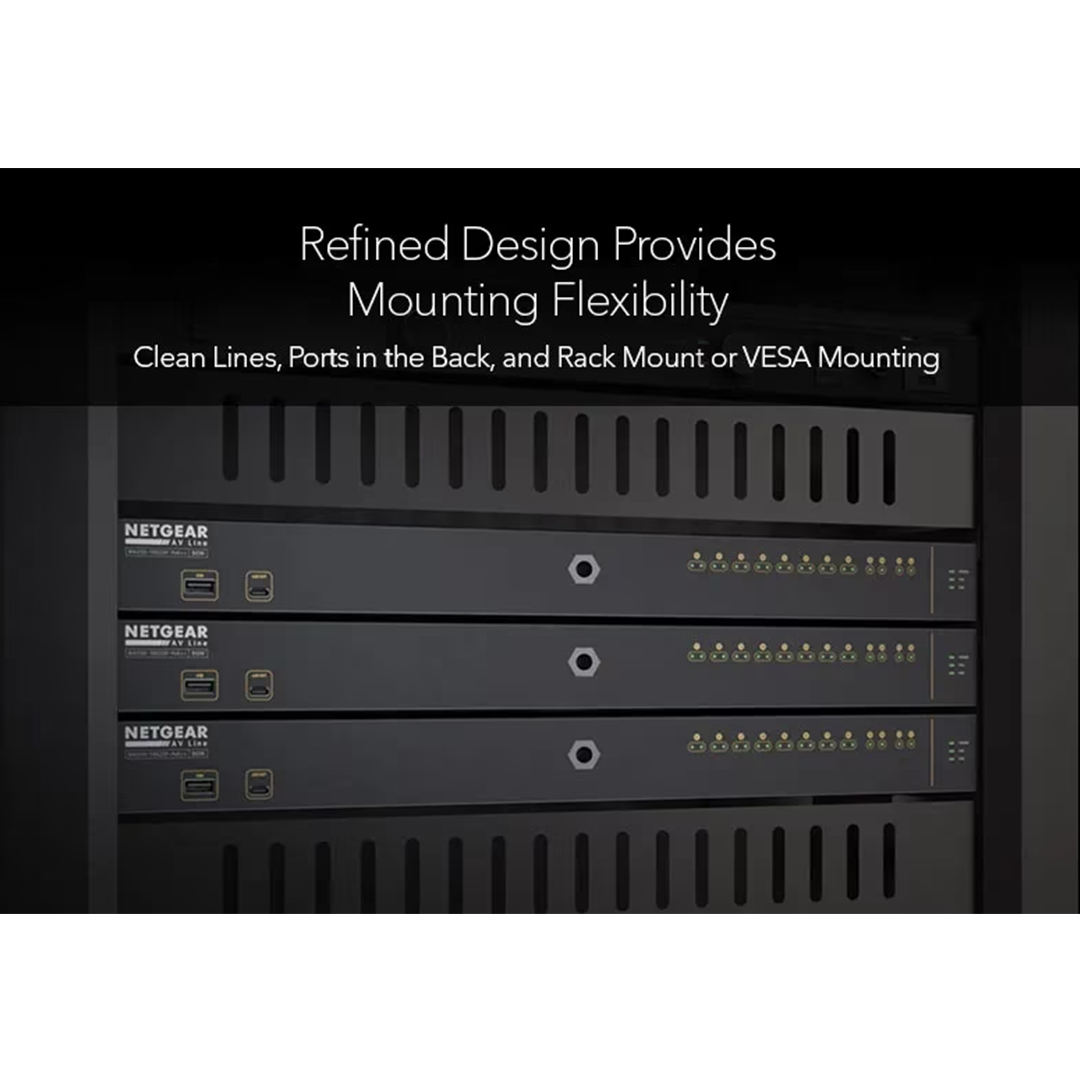

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality

Product variants

Available

Pairs well with

Netgear ProAV AV Line GSM4230PX 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch

Technical Specifications

Description

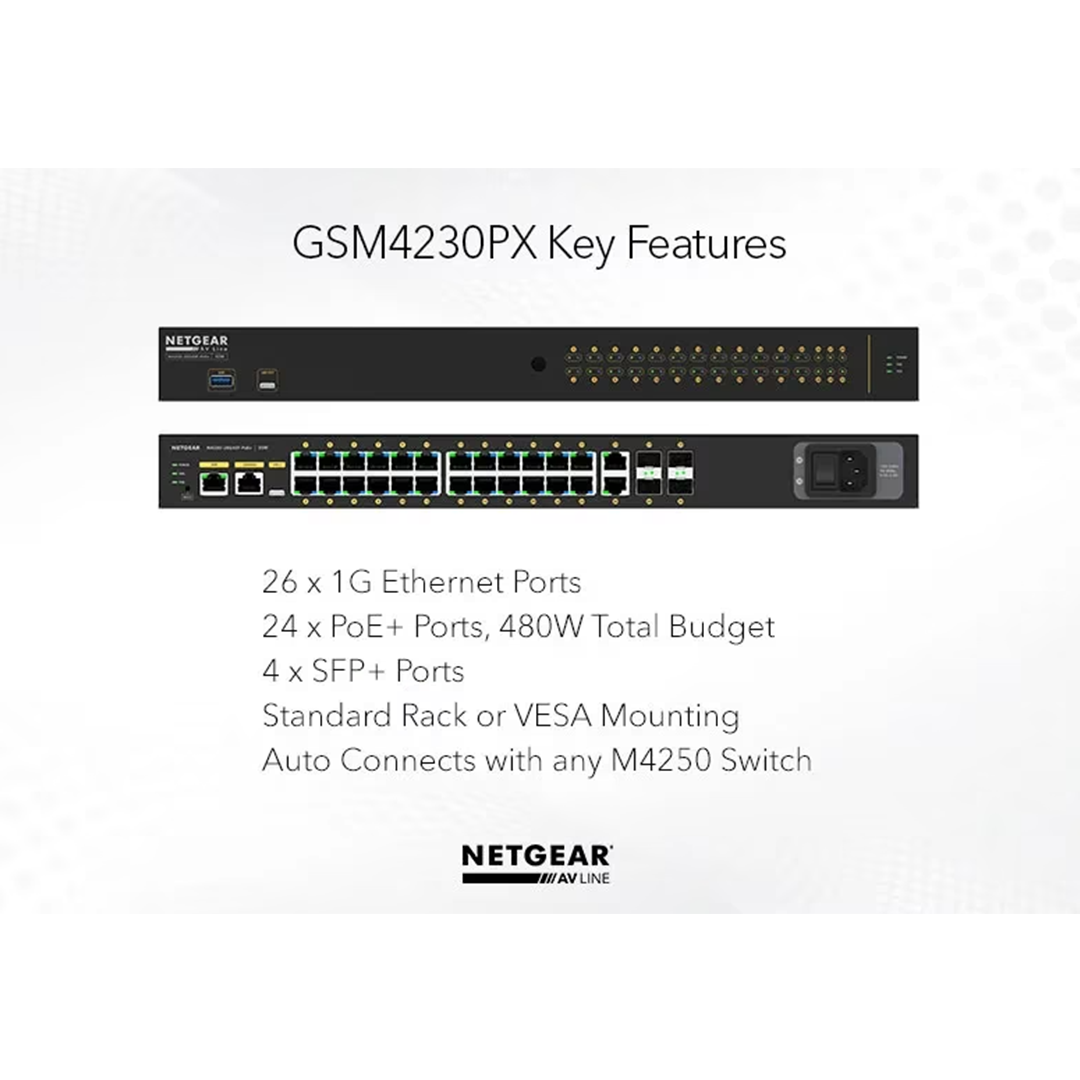

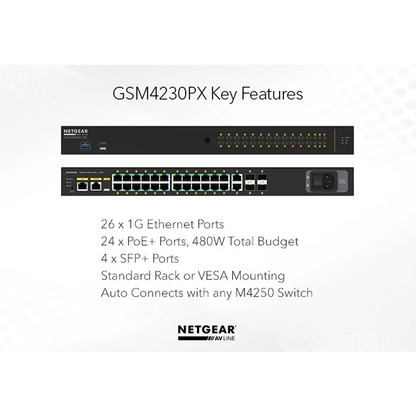

Ports: 30

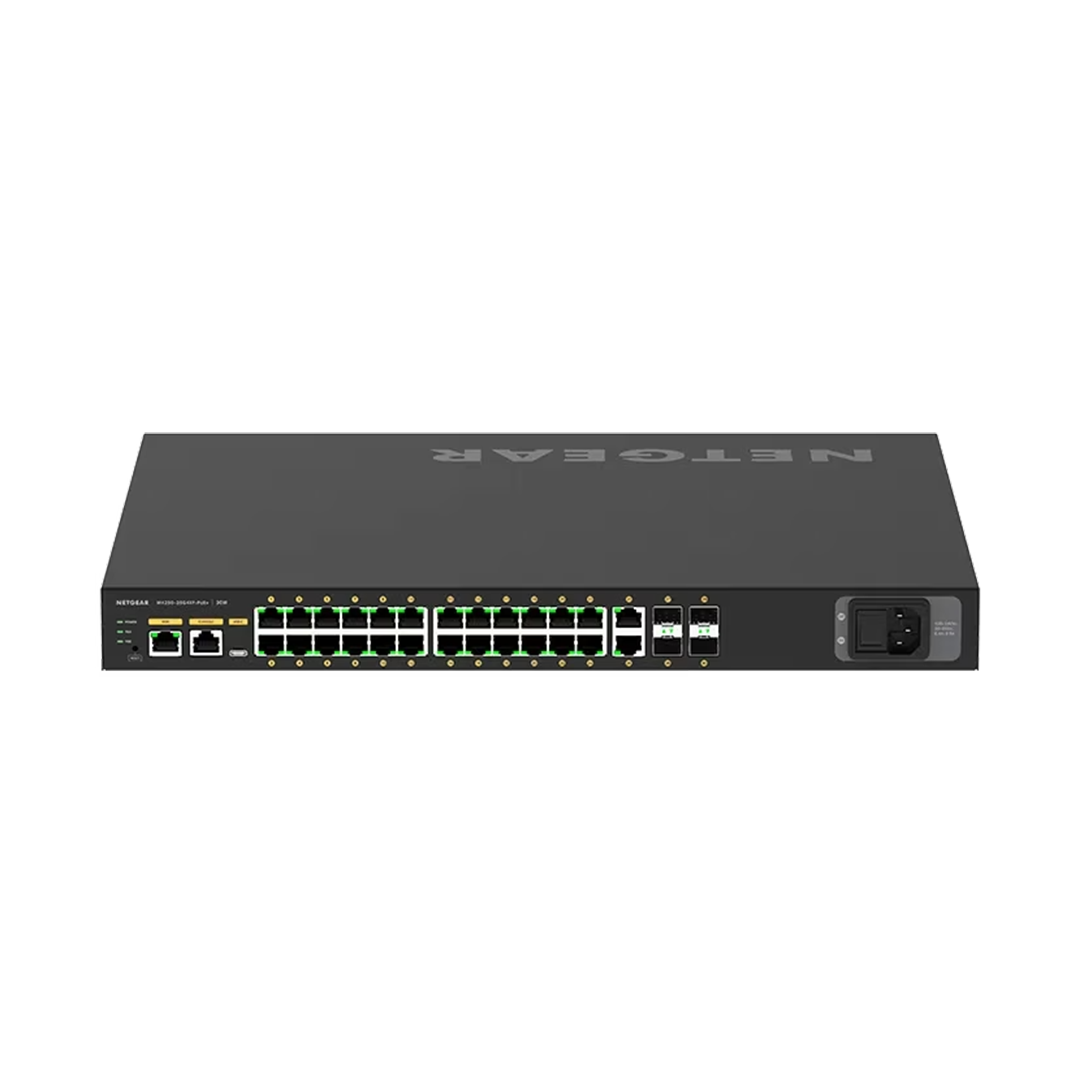

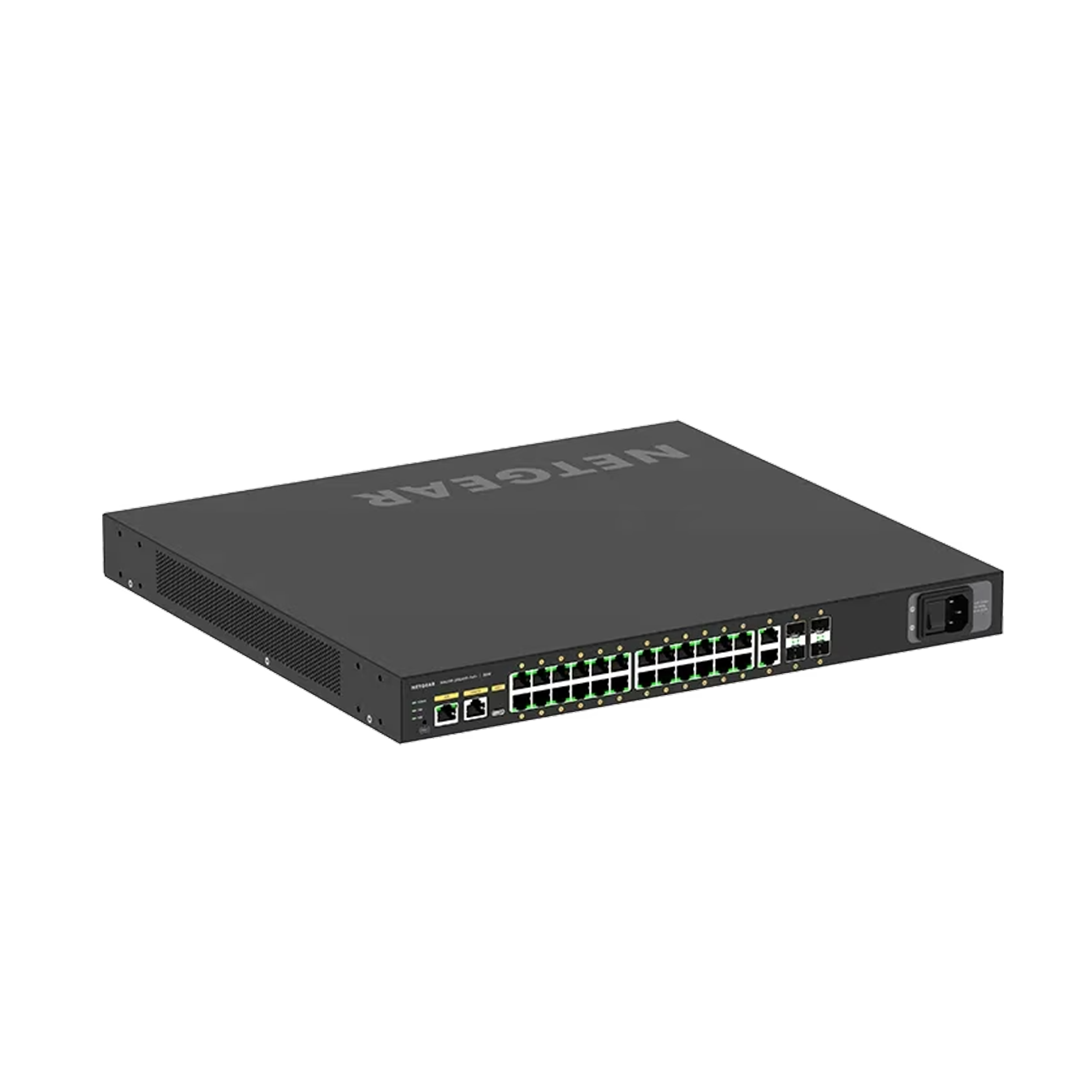

Port Types: 24 × 1G PoE+, 2 × 1G, 4 × SFP+
Primary Port Speed: 1 Gigabit
Number of Ports: 30 (24 × 1G PoE+, 2 × 1G, 4 × SFP+)
PoE Ports / Budget: 24 PoE+ (30W/port), 480W total budget
IGMP Support: Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support: Yes, up to 12KB
AVB Support: Yes (license required, activation key via email – AVB4230PX-10000S)
Acoustics: Fanless or 42 dB @ 25°C

Power Consumption:
With PoE: 614W / 2096.2 Btu/hr
Without PoE: 46.8W / 159.78 Btu/hr

Standby (no ports connected): 33.9W / 115.73 Btu/hr
