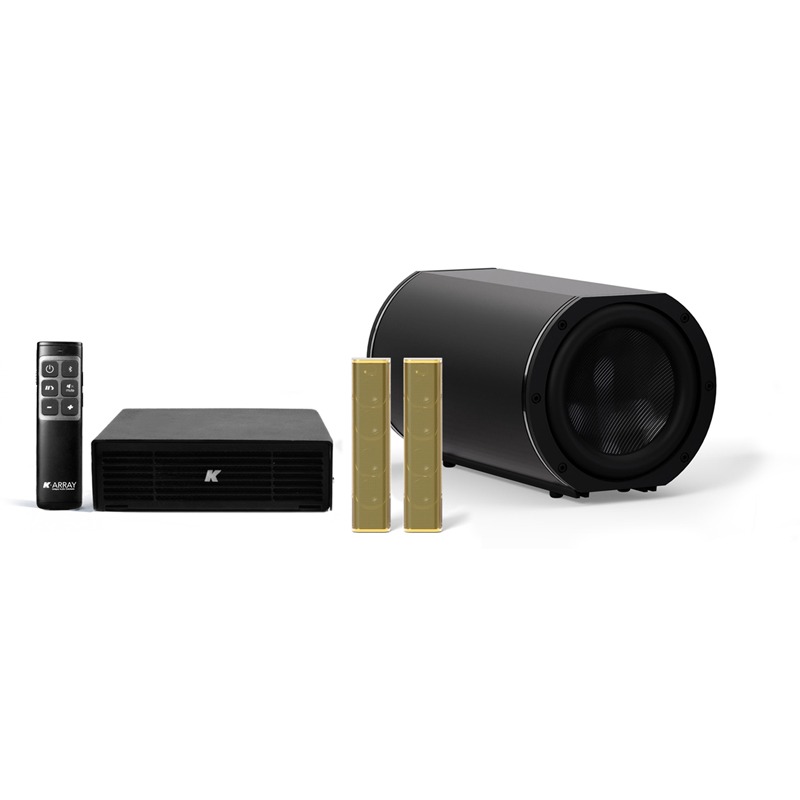

Azimut-KAMUT2L14 - Discreet Installed Audio System

General:

• Power Handling Lyzard-KZ14 (mid-high): 15W, Truffle-KTR25 (subwoofer): 80W
• Impedance Lyzard-KZ14 (mid-high): 16Ω, Truffle-KTR25 (subwoofer): 4Ω
• Frequency range (1) 45Hz – 18kHz (-6dB)
• Maximum SPL Lyzard-KZ14 (mid-high): 98dBSPL (peak) (2)
• . Truffle-KTR25 (subwoofer): 115dBSPL (peak) (3)
• Coverage Lyzard-KZ14 (mid-high): V. 40° | H. 140°
• . Truffle-KTR25 (subwoofer): omni

Transducers:

• Subwoofer 5.25″ woofer + passive radiator
• Mid-High frequency 4 x 0.5” neodymium magnet with 0.5” voice coil

Audio Input:

• Analog Balanced 2 x 3-pin euroblock (Phoenix MC 1,5/ 3-ST-3,81)
• Analog Unbalanced 3.5mm Jack Stereo
• Optic Toslink Connector
• USB 4 x USB 2.0
• Bluetooth 4.1 Bluetooth Low Energy

Remote:

• Remote Controller wired or wireless
• Hardware Control 4 x GPIO ports (Phoenix MC 1,5/ 5-ST-3,81 BK)
• Network 10-100 Mbps Ethernet (RJ45), Wirelss LAN 802.11n

DSP Processing:

• Sample Rate 96 kHz
• Bit Depth 32 bit
• Processing loudspeaker preset, EQ, signal routing, local streaming

Amplifier:

• Type 4-channel Class-D audio amplifier
• Power 4 x 50W @ 4Ω
• Protection Output Short Protection, DC Offset, Overtemperature, Undervoltage and Overvoltage, Open Ground and Power Tolerant
• Power Dedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output

Physical Overview:

• Dimensions Lyzard-KZ14: 22 x 100 x 11 mm (0.9 x 3.9 x 0.4 in)
• Truffle-KTR25: 152 x 147 x 258 mm (6.0 x 5.8 x 10.2 in)
• Kommander-KA02: 144 x 144 x 46 mm (5.7 x 5.7 x 1.8 in)
• Weight Lyzard-KZ14: 0,059 kg (0.130 lb)
• Truffle-KTR25: 2,5 kg (5.51 lb)
• Kommander-KA02: 0.5 kg (1.10 lb)
