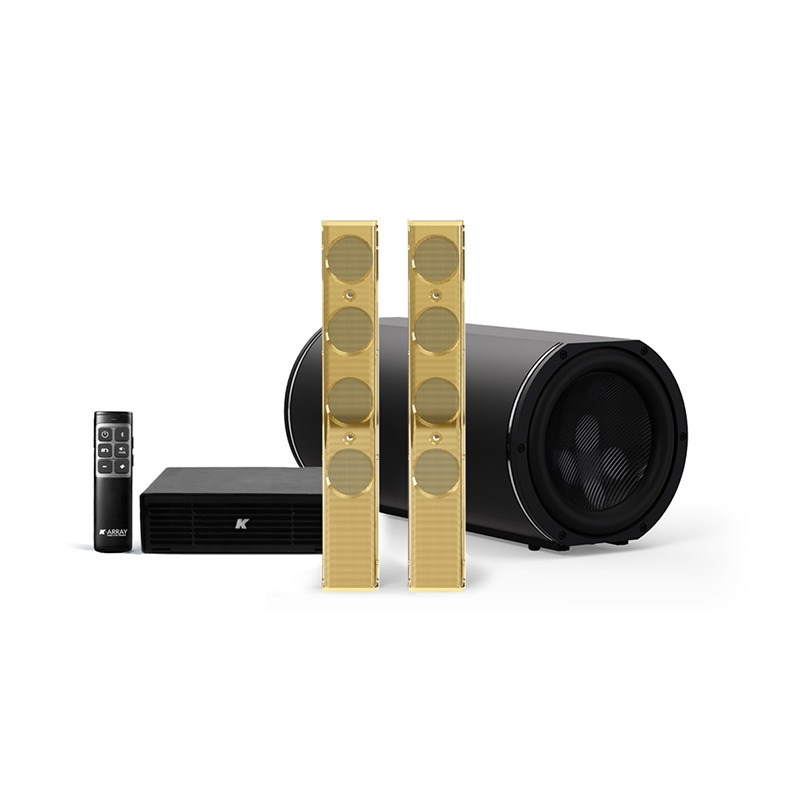

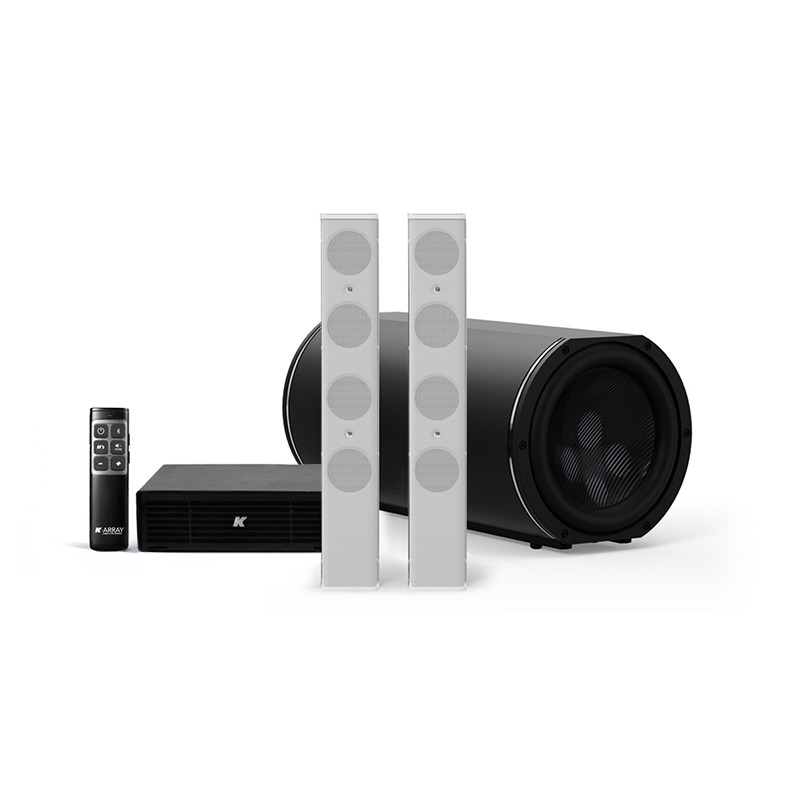

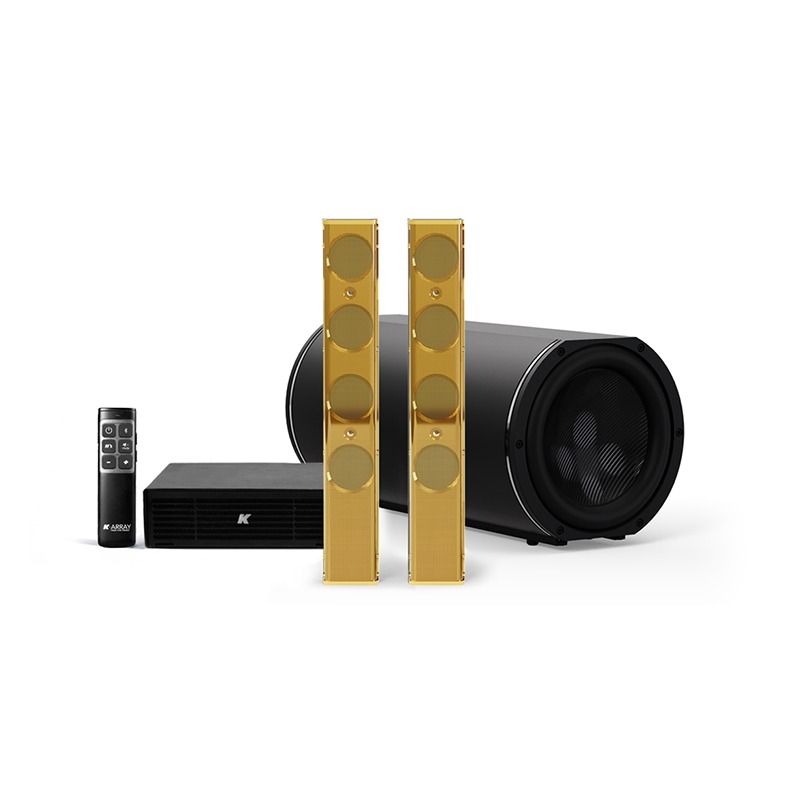

Azimut-KAMUT2V25 - Discreet Installed Audio System

Product Description

GENERAL

• Power HandlingVyper-KV25 (mid-high): 75W, Truffle-KTR26 (subwoofer): 100W
• ImpedanceVyper-KV25 (mid-high): 8 Ω / 32 Ω selectable
• Truffle-KTR26 (subwoofer): 2 Ω
• Frequency range (1)45 Hz – 18 kHz (-6 dB)
• Maximum SPLVyper-KV25 (mid-high): 108 dB SPL (peak) (2)
• Truffle-KTR26 (subwoofer): 120 dB SPL (peak) (3)
• CoverageVyper-KV25 (mid-high): V. 25° | H. 140°
• Truffle-KTR26 (subwoofer): omni

TRANSDUCERS

• Subwoofer6.5″ woofer + passive radiator
• Mid-High frequency4 x 1″ neodymium magnet woofers

AUDIO INPUT

• Analog Balanced2 x 3-pin euroblock (Phoenix MC 1,5/ 3-ST-3,81)
• Analog Unbalanced3.5 mm Jack Stereo
• OpticToslink Connector
• USB4 x USB 2.0
• Bluetooth4.1 Bluetooth Low Energy

REMOTE

• Remote Controllerwired or wireless
• Hardware Control4 x GPIO ports (Phoenix MC 1,5/ 5-ST-3,81 BK)
• Network10-100 Mbps Ethernet (RJ45), Wirelss LAN 802.11n

DSP PROCESSING

• Sample Rate96 kHz
• Bit Depth32 bit
• Processingloudspeaker preset, EQ, signal routing, local streaming

AMPLIFIER

• Type4-channel Class-D audio amplifier
• Power4 x 50W @ 4Ω
• ProtectionOutput Short Protection, DC Offset, Overtemperature, Undervoltage and Overvoltage, Open Ground and Power Tolerant
• PowerDedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output

PHYSICAL OVERVIEW

• DimensionsVyper-KV25: 40 x 260 x 22 mm (1.6 x 10.2 x 0.9 in)
• Truffle-KTR26: 182 x 176 x 341 mm (7.1 x 6.9 x 13.4 in)
• Kommander-KA02: 144 x 144 x 46 mm (5.7 x 5.7 x 1.8 in)
• WeightVyper-KV25: 0,4 kg (0.88 lb)
• Truffle-KTR26: 3,5 kg (7.72 lb)
• Kommander-KA02: 0.5 kg (1.10 lb)
