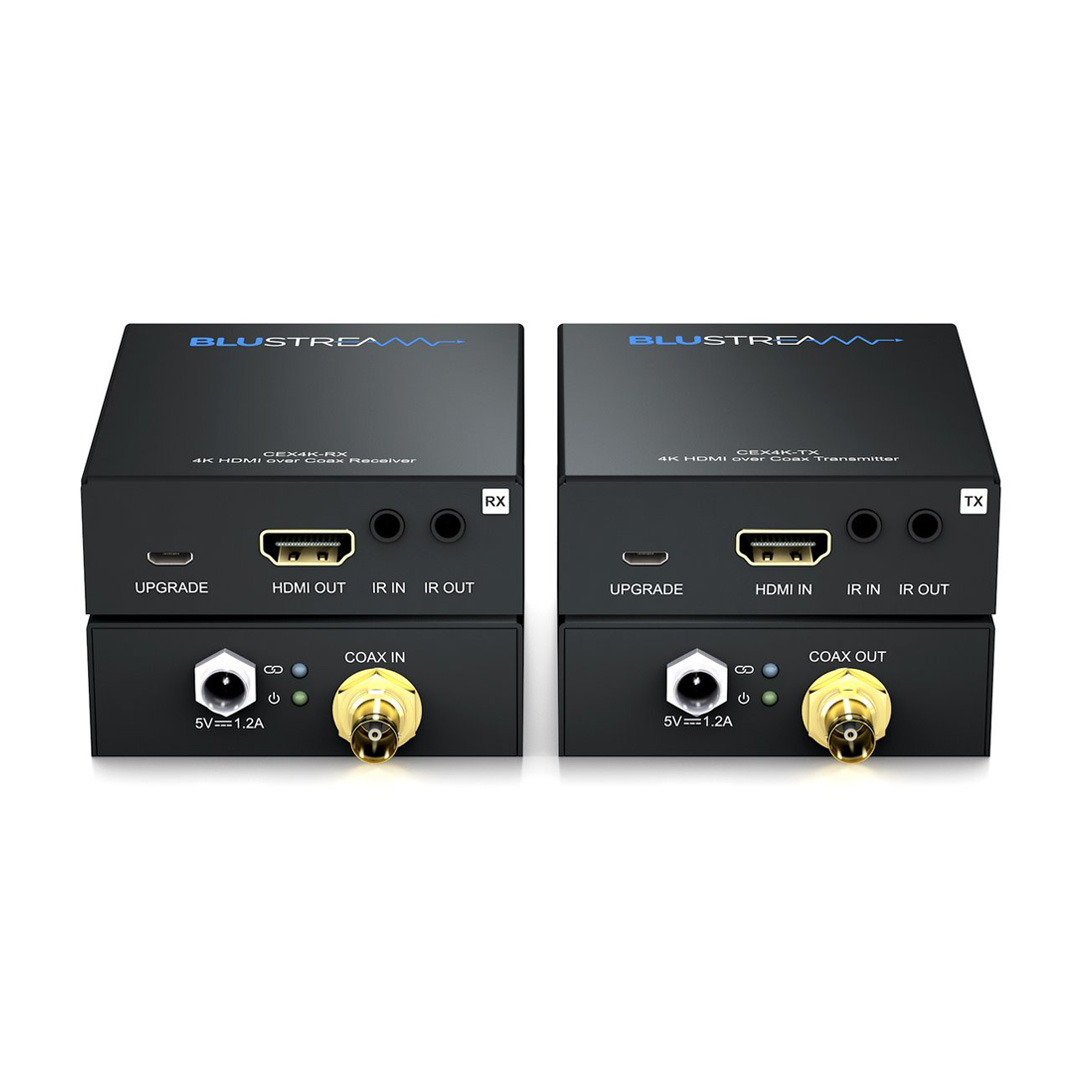

CEX4K-KIT - HDMI over Coax Extender Set

Product Description

Key Features

• Extends 4K HDMI signals up to a distances of 100m over a single 75 ohm coaxial cable
• Supports up to 4K 60Hz 4:4:4 UHD video*
• Supports Bi-directional IR from input and output locations
• Supports PCM 2.0 channel audio
• Supplied with Blustream IR receiver and emitter
• Smart EDID management
• HDCP 2.2 compliant

*Note: HDR 10/12 bit formats not supported

  Requires local power at both Transmitter and Receiver devices

Specifications – TX

• Video Input Connectors: 1 x HDMI Type A
• Video Output Connectors: 1 x BNC connector
• IR Input ports: 1 x 3.5mm stereo jack
• IR Output ports: 1 x 3.5mm mono jack
• Product upgrade: 1 x Micro USB, female
• Dimensions (Casing – W x D x H): 72.7mm x 88.8mm x 24mm
• Dimensions Including Connections (W x D x H): 72.7mm x 106.8mm x 24mm

Specifications – RX

• Video Input Connectors: 1 x BNC connector
• Video Output Connectors: 1 x HDMI Type A
• IR Input ports: 1 x 3.5mm stereo jack
• IR Output ports: 1 x 3.5mm mono jack
• Product upgrade: 1 x Micro USB, female
• Dimensions (Casing – W x D x H): 72.7mm x 88.8mm x 24mm
• Dimensions Including Connections (W x D x H): 72.7mm x 106.8mm x 24mm

Please Note: 4K HDR Video formats are not supported
Supports PCM 2.0 channel audio

Box Contents:

• 1 x CEX4K-TX
• 1 x CEX4K-RX
• 2 x 5V/1.2A DC power supply
• 1 x IRE1 emitter
• 1 x IRR receiver
• 2 x Mounting brackets
• 2 x F-type to BNC adaptor
• 1 x Quick reference guide
