CL-6-TB 2-way Passive Co-axial

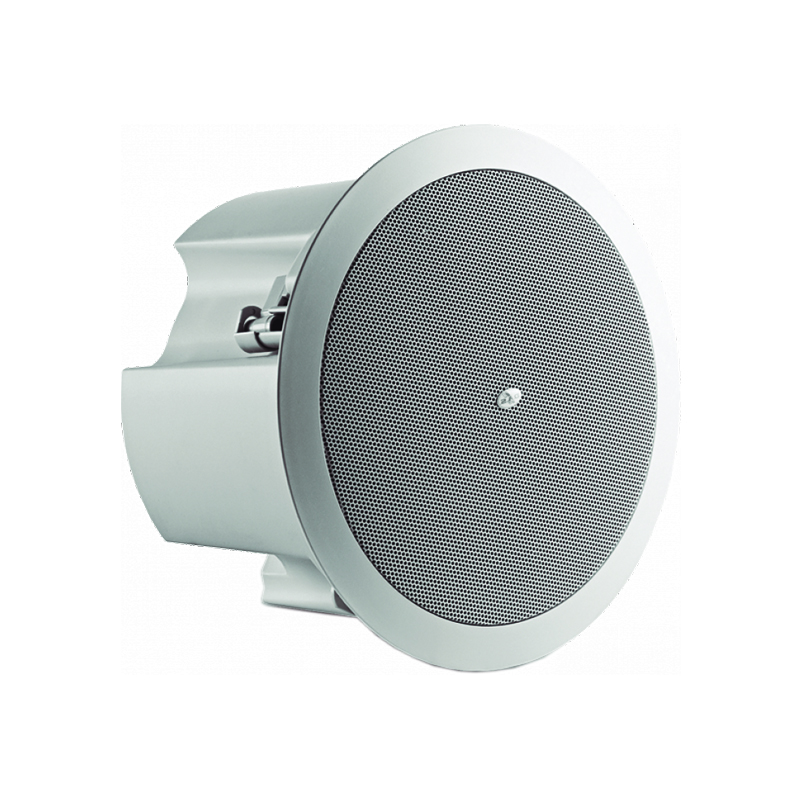

The CL-6TB is a 2-way passive full-range ceiling loudspeaker incorporating a 6.5″ cone low frequency transducer and a ferrofluid cooled soft dome high frequency unit with integral diffraction-ring. The unit is equipped with a multi tap line transformer and back can. The system´s low frequency driver is mounted on a plastic support with mounting tabs for fixing to ceiling surfaces. The front of the system is covered with a perforated metal grille.

SKU: CL-6-TB Categories: , Brand: Series:

Product Description

The CL-6TB is a 2-way passive full-range ceiling loudspeaker incorporating a 6.5″ cone low frequency transducer and a ferrofluid cooled soft dome high frequency unit with integral diffraction-ring. The unit is equipped with a multi-tap line transformer and back can. The system´s low frequency driver is mounted on a plastic support with mounting tabs for fixing to ceiling surfaces. The front of the system is covered with a perforated metal grille.

Features

Performance
Frequency Range (-10 dB) 70 Hz – 20 kHz
Horizontal Coverage (-6 dB) 95º
Nominal Impedance 8 ohms
Transformer Taps 70 V Tap0, Low Z. Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
Transformer Taps 100 V Tap0, Low Z. Tap1, 5 W. Tap2, 10 W. Tap3 15 W.
On-axis Sensitivity 1W/1 m 90 dB SPL
Recommended Amplifier IA-402
IA-404
Connectors
Audio Input Connector Spring Terminals
Audio Output Connector Spring Terminals
Enclosure
Enclosure Construction Plastic
Enclosure Geometry Round
Color White
Net Weight 2,3 kg ( 5,1 lb )
Shipping
Carton Dimensions ( H x W x D ) 310 x 300 x 450 mm
12,2 x 11,8 x 17,7 in
Shipping Weight 2,8 kg ( 6,1 lb )




Additional information

Weight 5.0 kg
Dimensions 44.0 × 29.0 × 30.0 cm

Download

Catalogue
