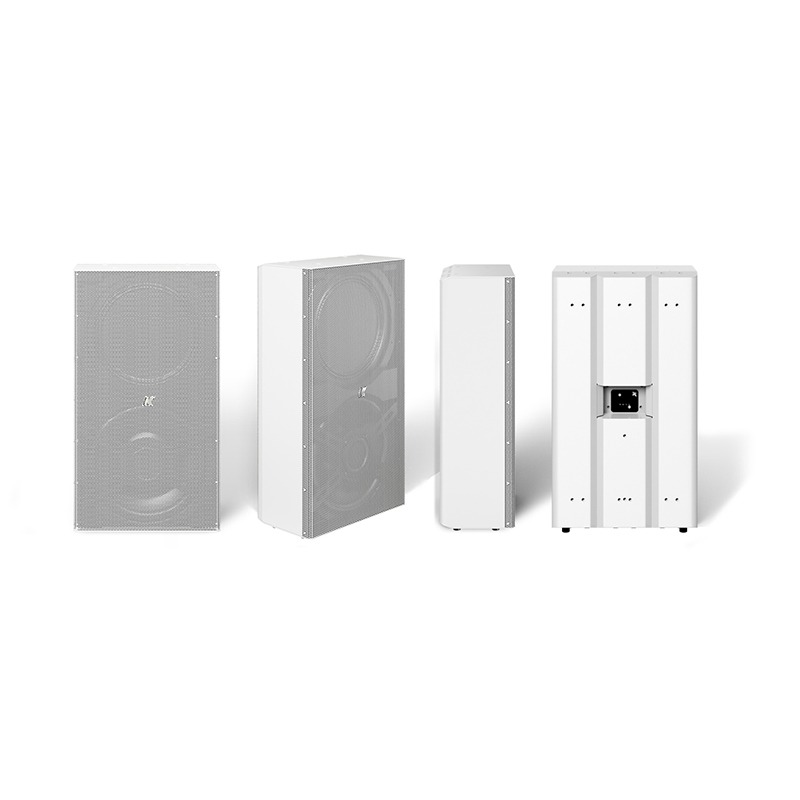

Domino KF210 – Ultra-compact, Passive Full-range Speaker

The KF210 is the mid-sized option of the Domino line that has a 10” and a 3” neodymium magnet woofer coaxially mounted in addition to a 10” passive radiator. Like the KF26, the KF210 has selectable impedance and wide vertical and horizontal coverage

Clear
SKU: N/A Categories: , , Brand: Series:

Product Description

Domino is the new full-range speaker line from K-array. These compact stainless steel speakers with plug and play capabilities do not require presets and can be driven by any amplifier making them the perfect solution for applications from intimate restaurants to live concert settings.

The KF210 is the mid-sized option of the Domino line that has a 10″ and 3″ neodymium magnet woofer coaxially mounted in addition to a 10″ passive radiator. Like the KF26, the KF210 has selectable impedance and wide vertical and horizontal coverage.

Features & Information
  • Unique performance-to-size ratio
  • Full-range frequency response
  • Plug and play capabilities
  • Compatible with any amplifier
  • Weather-proof stainless steel frame
  • Dedicated mounting accessories for flush mount
Colors Available
  • Black
  • White
  • Specific RAL code for a customized painted model
  • Brushed, Polished, Gold Plated and Stainless steel finishes
Technical Specifications Acoustics
  • Power handling: 320 W
  • Impedance: 4/16 Ohm selectable
  • Frequency range (-10 dB): 40Hz-19000Hz passive version
  • SPL 1W/1mt: 95db
  • Maximum SPL:
    • 117dB (cont) – 123dB (peak) passive version
    • 121dB (cont) – 127dB (peak) with KA
Coverage
  • Horizontal: 90°
  • Vertical: 90°
Crossover
  • Type: internal passive crossover
Transducers
  • Type:
    • Low-mid frequency: 1 x 10” Neodymium magnet with 2 voice coils of 2”+ 1 x 10” passive transducer
    • High frequency: 3” Neodymiun magnet Woofer with 2 voice coils of 1”
Power Audio In/Out
  • Connectors: 1 x 4-pin phoenix connector
Recommended Amplifiers
  • Type: KA24 – KA84
Certification
  • IP: 56 (More complete water protection with K-KUIP accessory)
Physical
  • Dimensions:
    • 28.2 cm x 50.0 cm x 15.1 cm
    • (11.1“ x 19.6” x 5.9“)
  • Weight: 12 Kg (26.45 lb)

Additional information

Color

Black, White

Download

Data Sheet
