Domino KF212 – Ultra-compact, passive full-range speaker

The largest and most powerful of the Domino line is the KF212. Comprised of a 12” coaxial transducer with a titanium dome and a 12” passive radiator, the KF212 really packs a punch. With a depth of 20 cm, the KF212 is the ideal solution for clubs and lounges to live concerts

Categories: , Brand:

Product Description

Domino is the new full-range speaker line from K-array. These compact stainless steel speakers with plug and play capabilities do not require presets and can be driven by any amplifier making them the perfect solution for applications from intimate restaurants to live concert settings.

The largest and most powerful of the Domino line is the KF212. Comprised of a 12” coaxial transducer with a titanium dome and a 12” passive radiator, the KF212 really packs a punch. With a depth of 20 cm, the KF212 is the ideal solution for clubs and lounges to live concerts

Features & Information

  • Unique performance-to-size ratio
  • Full-range frequency response
  • Plug and play capabilities
  • Compatible with any amplifier
  • Weather-proof stainless steel frame

Colors Available

  • Black
  • White
  • Specific RAL code for a customized painted model

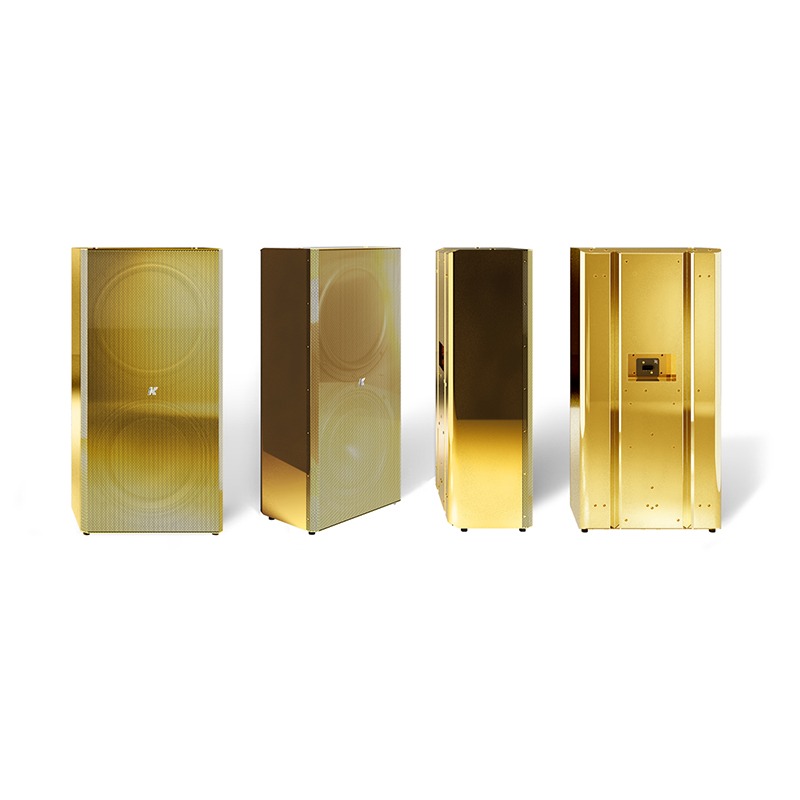

  • Brushed, Polished, Gold Plated and Stainless steel finishes

Technical Specifications

ACOUSTICS

  • Power handling: 700W
  • Impedance: 8 Ohm
  • Frequency range (-10 dB): 40Hz-19000Hz
  • SPL 1W/1mt: 100db
  • Maximum SPL: 124dB (cont) - 130dB (peak)

COVERAGE

  • Horizontal: 90°
  • Vertical: 60°

CROSSOVER

  • Type: internal passive crossover
  • Frequency: 2500 Hz

TRANSDUCERS

  • Type:
    • 1 x 12” Coaxial: LF ferrite magnet with voice coil of 3” + HF titanium dome with voice coil of 1.7”
    • 1 x 12” passive transducer

POWER AUDIO IN/OUT

  • Connectors: 1 x 4-pin phoenix connector only 2-pin used

RECOMMENDED AMPLIFIERS

  • Type: KA84

CERTIFICATION

  • IP: 56 (More complete water protection with K-KUIP accessory)

PHYSICAL

  • Dimensions:
    • 33.0 cm x 65.5 cm x 20.0 cm
    • (12.9” x 25.7” x 7.8”)
  • Weight: 23.5 kg (51.8 lbs)
