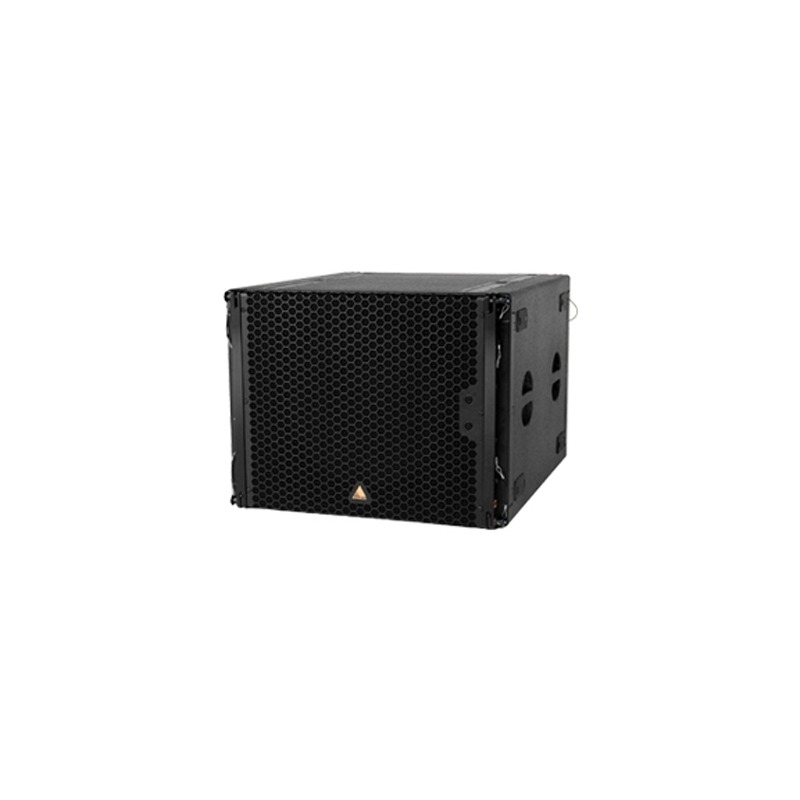

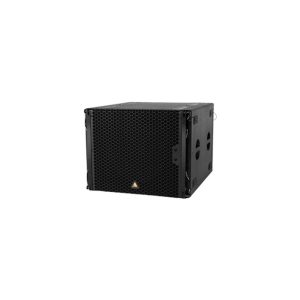

E119 - Light Weight Long Excursion 19'' Subwoofer

The E119 Subwoofer was developed to bolster the low-end of the E-Series line of products. The enclosure is loaded with a light weight, long excursion, 19” SD19 Kevlar® Neodymium driver utilizing Adamson’s Advanced Cone Architecture and Symmetrical Drive Technology. The driver employs a dual 5” voice coil for exceptional power handling, with a dual-spider suspension system for extra stability even under extreme excursion. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. Users will appreciate the lower fundamental notes of this design.

SKU: 994-0003 Category: Brand: Series:

Product Description

The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with four Speakon™ NL4 connectors, two parallel In/Out rear plugs and two dedicated cardioid input connecters in the front.  The integrated rigging system allows for either 0° or 3° splay between adjacent cabinets. The E119 can travel on installed casters, or on a 3-high covered dolly.

Specifications:

  • Frequency Range (+/-3 dB): 30 Hz – 100 Hz
  • Maximum Peak SPL**: 138
  • Components LF: SD19 19″ Kevlar® Neodymium Driver
  • Nominal Impedance LF: 8Ω
  • Power Handling (AES / Peak) LF: 1600 / 6400 W
  • Rigging: Integrated Rigging System
  • Connection: 4x Speakon™ NL4: 2x Rear Parallel (Pins 1 +/-) and 2x Front
  • Cardioid Input (Pin 2 to 1)
  • Height Front (mm / in): 572 / 22.5
  • Width (mm / in): 749 / 29.5
  • Depth (mm / in): 889 / 35
  • Weight (kg / lbs): 66.5 / 146.5
  • Supported Processing: Lake

**12 dB crest factor pink noise at 1m, half space, using specified processing and amplification

Download

Data Sheet
