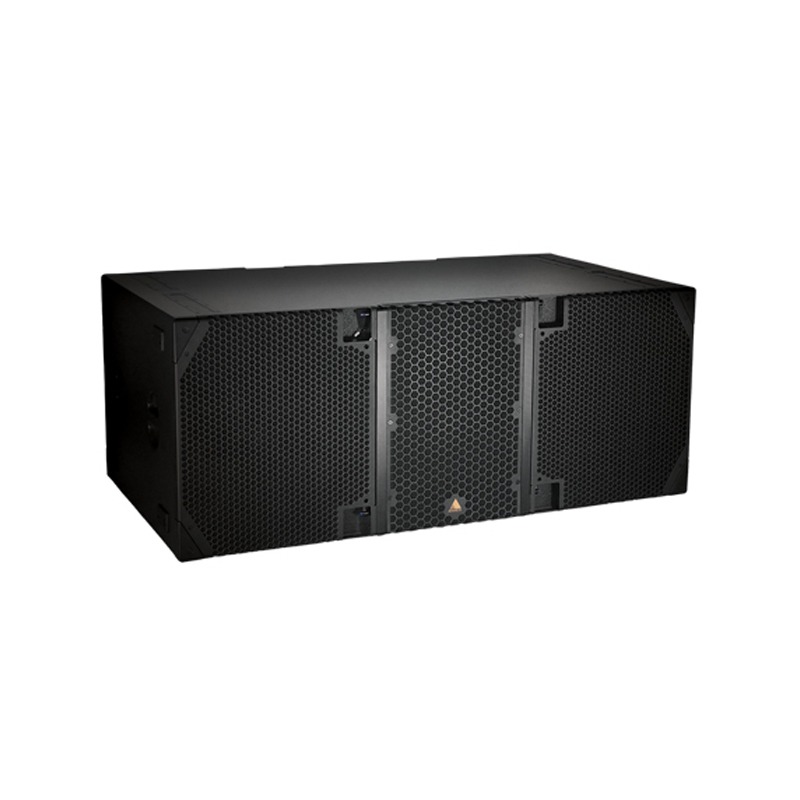

E219 - Two Light Weight Long Excursion 19'' Subwoofer

The E219 can be ground stacked or flown utilizing the E-Frame Full Line Adapter.  The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with three Speakon™ NL8 connectors, two parallel In/Out plugs and one dedicated output connection to optimize speaker cabling.  The integrated rigging system allows for either 0° or 3° splay between adjacent cabinets.

Specifications:

• Frequency Range (+/-3 dB): 28 Hz – 90 Hz
• Maximum Peak SPL**: 144
• Components LF: 2x SD19 19″ Kevlar® Neodymium Driver
• Nominal Impedance LF: 2x 8 Ω
• Power Handling (AES / Peak) LF: 2x 1600 / 6400 W
• Rigging:Integrated Rigging System
• Connection: 3x Speakon™ NL8
• Height Front (mm / in): 597 / 23.5
• Width (mm / in): 1440 / 56.7
• Depth (mm / in): 889 / 35
• Weight (kg / lbs): 106.6 / 235
• Supported Processing: Lake

**12 dB crest factor pink noise at 1m, half space, using specified processing and amplification
