FD33- Circular truss

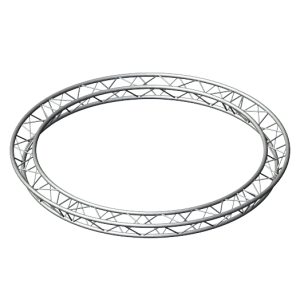

FD33 circle is a circle truss with a triangular profile geometry for medium loads.

Clear
Category: Brand:

Product Description

FD33 circle is a circle truss with a triangular profile geometry for medium loads.

  • Tolerance free connection with conical connector
  • High Stability aluminum alloy
  • Optimum manufacturing quality
  • TuV Tested
  • Available in any non-standard length and shape

Next to all the standard lengths and the various range of corners Eurotruss manufactures Truss circles and curved trusses. These curved trusses are made with full accuracy which guarantees a perfect fitting. All curved parts are made with special tools ensuring that all parts are identical. Every curved segment of a circle is fully interchangeable.

The number of curved parts is depending on the maximum length of each segment. The maximum length per segment may not exceed 5,5m (18ft.). Eurotruss advises the purchase of an even number of parts (2, 4 or 8 parts) in order to obtain full flexibility and exchangeability with standard lengths and corner elements. Further, it is advisable to check upon load bearing capacity as a circle or curved structure needs to be calculated differently.
