FLASH 8 – 32 x 2.34 watts Green, 32 x 2.34 watts Blue, 16 x 2.34 watts White, 16 x 2.34 watts Amber

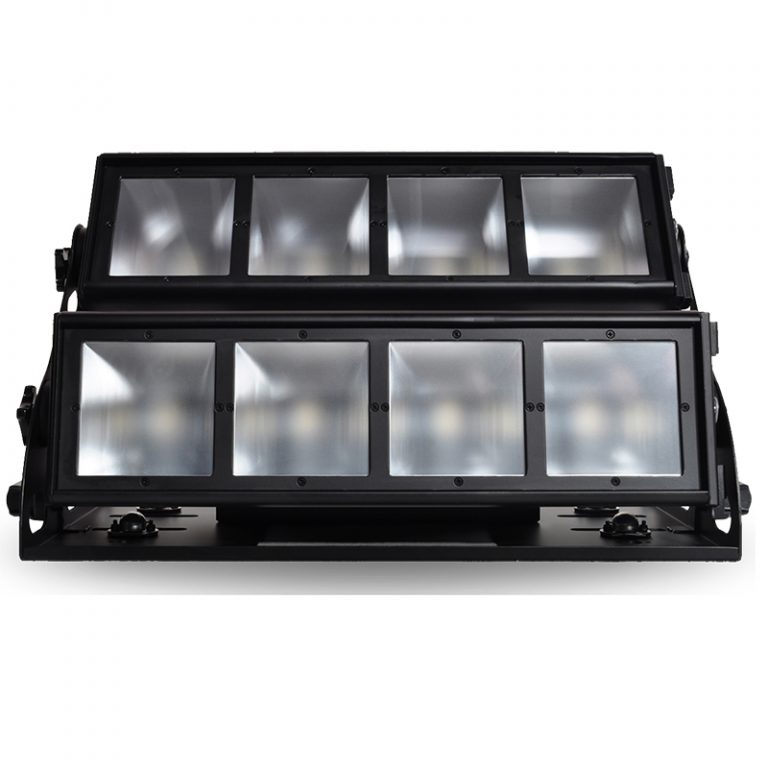

FLASH 8 is powerful rugged LED fixture designed as one of the most powerful cyclorama fixtures with RGBWA color mixing. It delivers a homogeneous color mixed wash output with additional amber LEDs to achieve any color temperature or tint required. With a beam angle of 58°, it can cover large and high areas in a smooth even wash.

SKU: FLASH8 Categories: , , Brand: Series:

Product Description

FLASH 8 is powerful rugged LED fixture designed as one of the most powerful cyclorama fixtures with RGBWA color mixing. It delivers a homogeneous color mixed wash output with additional amber LEDs to achieve any color temperature or tint required. With a beam angle of 58°, it can cover large and high areas in a smooth even wash. SOURCE
  • Light source: 32 x 2.34 watts Green, 32 x 2.34 watts Blue, 16 x 2.34 watts White, 16 x 2.34 watts Amber
  • LED life expectancy: 50,000 Hrs.
OPTICAL SYSTEM
  • Beam angle: 58°
  • Light output: 1800 Lux @ 2m @ 58°
  • Peak Intensity: 8400 cd
DYNAMIC EFFECTS
  • Color mixing: RGB
  • Strobe: 0-20Hz
  • Built-in color and dynamic macros
CONTROL & PROGRAMMING
  • Control protocols: DMX
  • Display: for Auto, Static color and custom control
  • Control Channels: TOUR, TR16, ARC1, ARC1.D, ARC.2, ARC.3,AR3.D, AR3.S,HSV, PIX.1, PIX.3 CHs
 ELECTRICAL
  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 310 watts
CONNECTIONS
  • DMX Connections: 3 pin XLR In/Out Male and Female
  • Power Connections: PowerCon In/Out
PHYSICAL
  • Dimensions: 622 x 310 x 327.5mm
  • Net weight: 15 Kg
  • Color: Black
  • Housing: Aluminum
  • Operating temperature: -20°C/45°C

Download

Data Sheet
