Technical Specifications

Description

SOURCE

  • Light source: 360 x 1 watt White LEDs | 384 x 0.5 watt RGB LEDs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 90°

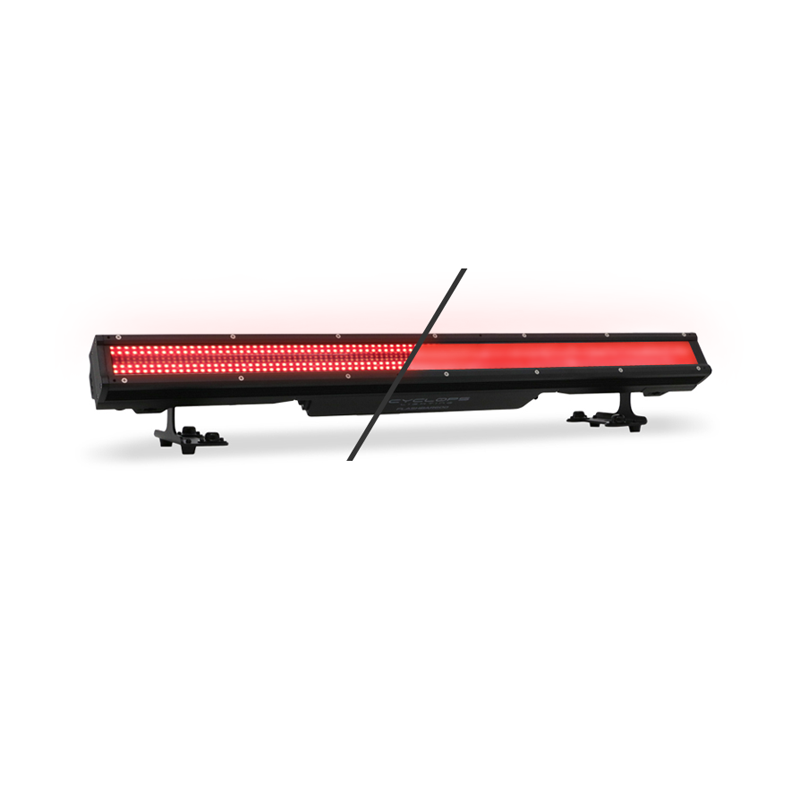

  • DMX Controlled Frost Glass

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • 12 Pixel Zones Strobe White LEDs
  • 24 Pixel Zones Effect RGB LEDs
  • Strobe Intensity, Duration and Rate control
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Auto Run
  • Display: TFT displayer with 4 buttons
  • Control channels: 3, 9, 22, 36, 50, 92 CHs

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Power consumption: 300 watts

CONNECTIONS

  • DMX connections: IP outdoor 3 pin XLR In/Out
  • Power connections: IP outdoor PowerCon In/Out

PHYSICAL

  • Dimensions: 1017 x 85 x 165 mm
  • Net weight: 6 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/40°C
