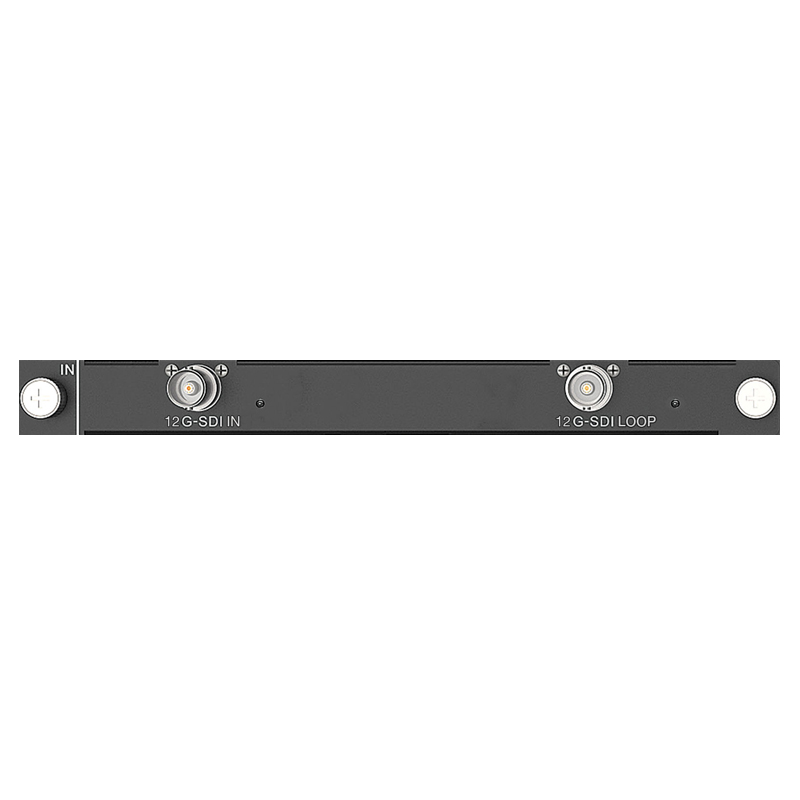

H Series 1 x 12G-SDI Input Card

The H Series 1x 12G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It supports resolutions of up to 4096×2160 @60 Hz and 1080i/576i/480i de-interlacing processing. It supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD) SDI signals. The 12G-SDI Loop output forwards the 12G-SDI input signal. Two status LEDs indicate if the input signal is valid.

SKU: H_IN_1x12GSDI Categories: , , Brand:

Product Description

Key Features:

  • Max. resolution 4096×2160 @60 Hz
  • Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
  • Supports 1080i, 576i, and 480i
  • Two status LEDs

Technical Specifications:

Inputs

  • 12G-SDI: 1
  • Input Slots: 1

Outputs

  • 12G-SDI (Loop): 1

Control and Programming

  • Maximum Input Resolution: 4096 x 2160

Mechanical Specifications

  • Weight: 0.8 kg
  • IP Rating: IP20 (indoor use only)
  • Colour: Black

Additional information

Weight 0.0 kg
Dimensions 0.0 × 0.0 × 0.0 cm
