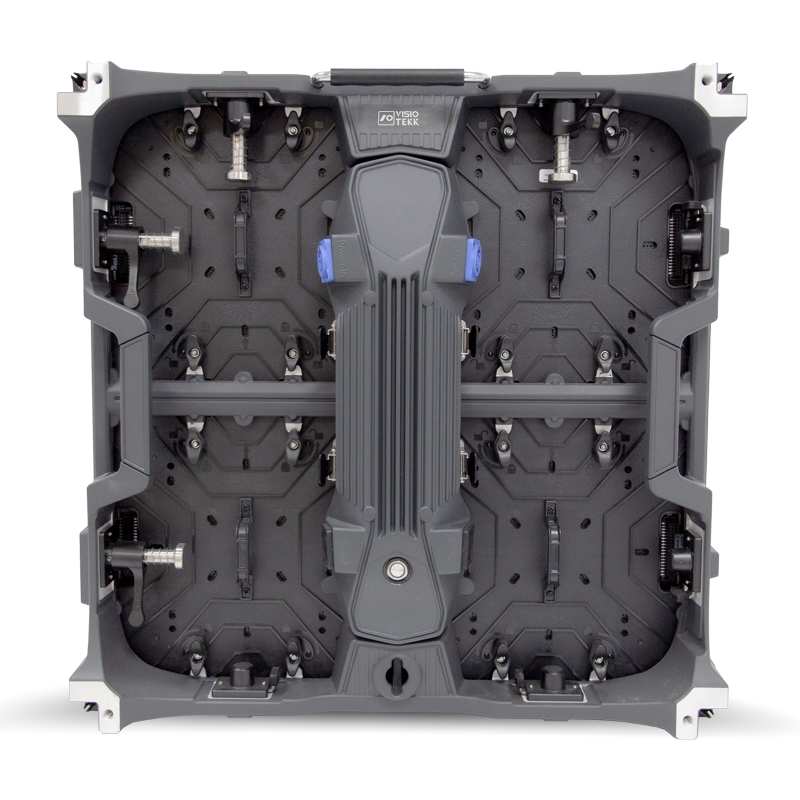

LiveTekk LED Screen

... ... ...

LiveTekk: The perfect solution for the everyday event. It features a fast lock system, making it easy to set up and dismantle. The pixel pitch options (1.9 to 3.9mm) give you the choice to balance image resolution, price, and power considerations without compromising on quality or reliability. You can also choose a curved screen option, fully or partially, convex and concave. Request a quote today or consider LiveTekk WP for outdoor applications.

Clear
SKU: N/A Categories: , Brand:

Product Description

Key Features:

  • Pixel Pitch (mm): 1.95/3.91
  • Maximum Brightness (cd/m²): ≤ 1000
  • Curved: 5° / 10°
  • Refresh Frequency (Hz): ≤ 3840

Technical Specifications:

  P1.95-50×50 P2.5-50×50 P2.604-50×50 P2.976-50×50 P3.91-50×50
Order Number (SKU) Straight Panel VT-ID-P195-500×500-LT VT-ID-P250-500×500-LT VT-ID-P260-500X500-LT VT-ID-P297-500×500-LT VT-ID-P391-500X500-LT
Curved Panel VT-ID-P195-500×500-C-LT VT-ID-P250-500×500-C-LT VT-ID-P260-500X500-C-LT VT-ID-P297-500×500-C-LT VT-ID-P391-500X500-C-LT
Resolution Pixel Pitch (mm) 1.95 2.5 2.604 2.976 3.91
Cabinet Resolution 256×256 200×200 192×192 168×168 128×128
LED Configuration SMD1515 SMD1515 SMD1515 SMD1515 SMD1515
Image Output Maximum Brightness (cd/m²) ≤ 1000 ≤ 1000 ≤ 1000 ≤ 1000 ≤ 1000
Refresh Frequency (Hz) ≤ 3840 ≤ 3840 ≤ 3840 ≤ 3840 ≤ 3840
Scan Ratio 1/32 1/32 1/32 1/32 1/32
Panel Features IP Rating Indoor Indoor Indoor Indoor
Cabinet Material Die-Cast Aluminum Die-Cast Aluminum Die-Cast Aluminum Die-Cast Aluminum Die-Cast Aluminum
Serviceability Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
Curving Concave – 5° / 10° for curved model 5° / 10° for curved model 5° / 10° for curved model 5° / 10° for curved model
Curving Convex – 5° / 10° for curved model 5° / 10° for curved model 5° / 10° for curved model 5° / 10° for curved model
Viewing Angle Vertical 140° 140° 140° 140° 140°
Viewing Angle Horizontal 140° 140° 140° 140° 140°
Transparency Solid Solid Solid Solid Solid
Operational Temperature -20°C ~ 60°C -20°C ~ 60°C -20°C ~ 60°C -20°C ~ 60°C -20°C ~ 60°C
Operational Humidity (RH) 10% ~ 60% 10% ~ 60% 10% ~ 60% 10% ~ 60% 10% ~ 60%
Power Consumption Maximum Power Consumption (Watts/m²) 800 800 800 800 800
Average Power Consumption (Watts/m²) 250 250 250 250 250
Size & Weight Cabinet Size (LxWxH) (mm) 500 x 500 x 75 500 x 500 x 75 500 x 500 x 75 500 x 500 x 75 500 x 500 x 75
Module Size (LxW) (mm) 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250
Cabinet Weight (Kg) 8 8 8 8 8



Additional information

Panel Type

Curved Panel, Straight Panel
Pixel Pitch (mm)

P1.95-50×50, P2.5-50×50, P2.604-50×50, P2.976-50×50, P3.91-50×50
