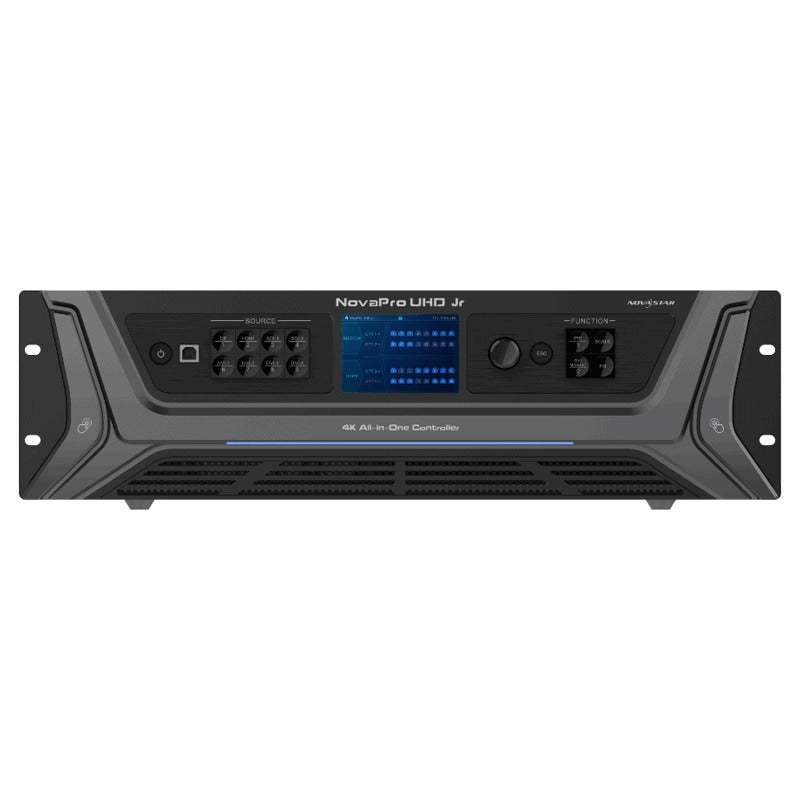

NovaPro UHD Jr - Professional All-in-one Video Controller

Product Description

Key Features:

• A variety of inputs and outputs
  Provides 1x DP 1.2, 4x DVI, 1x HDMI 2.0 with loop through and 2x 12G-SDI with loop through.
  The maximum width is 16K and maximum height
  is 8K.
• More output connectors, larger loading capacity
  Provides 16x Neutrik Ethernet output and 4x optical fiber output, with loading capacity up to 10,400,000 pixels.
• 3D mode
  Turning on 3D mode will halve the device output capacity.
• 3 layers
  Supports one main layer and two PIPs, with adjustable layer priority.
• DVI mosaic
  An input source can be made up of at most 4 DVI input sources.
• HDR output
  Greatly enhances display image quality, providing more clear and vivid image.
• Decimal frame rates
  The supported frame rates are 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.
• Low-latency output
  Realize 2 frame delay from sending card to receiving card when the device is used together with NovaStar Armor series receiving cards (A8/A8s/A9s/A10s Plus).
• Customized BKG settings
  Supports pure color and image BKGs.
• Personalized image scaling
  Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
• Capture function
  Captures input source image which can be used as a BKG image.
• Image mosaic
  Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
• V-Can (smart control software from NovaStar) control supported
• Up to 10 presets
  At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
• EDID management supported
  Supports custom EDID and standard EDID
