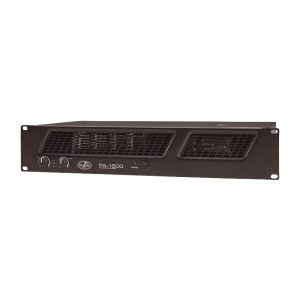

PA-1500 - Stereo Amplifier

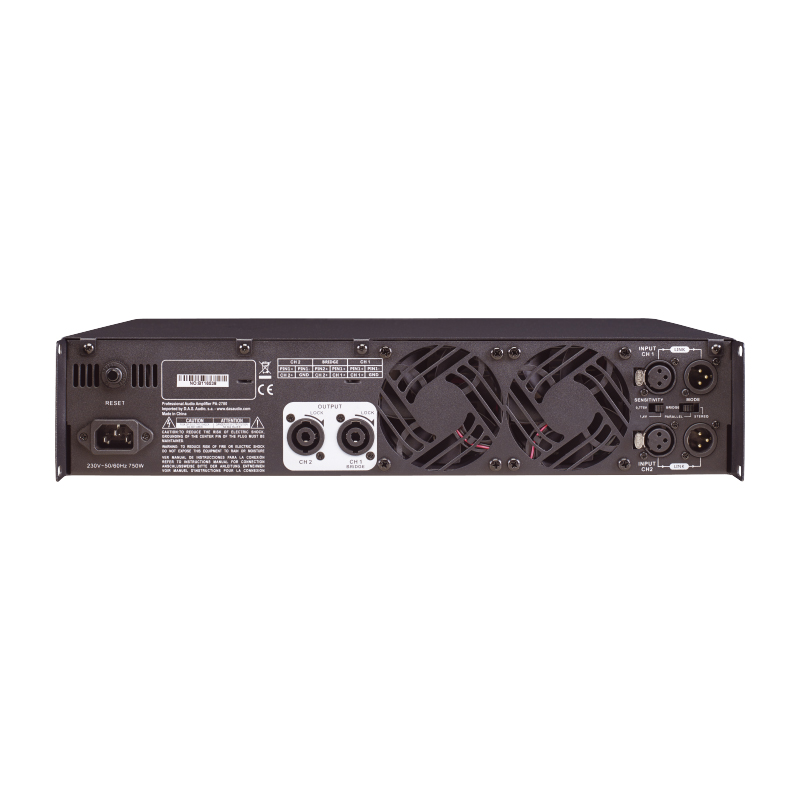

The PA 1500 stereo amplifier is for both installed or mobile sound reinforcement applications. The amplifiers incorporate a rugged 2 unit all-steel chassis ensuring structural rigidity. The low-noise fans offer both quiet and cool operation. The amplifier incorporates rear located switches which permit, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.

Categories: , Brand: Series:

Product Description

The PA 1500 stereo amplifier is for both installed or mobile sound reinforcement applications. The amplifiers incorporate a rugged 2 unit all-steel chassis ensuring structural rigidity. The low-noise fans offer both quiet and cool operation. The amplifier incorporates rear located switches which permit, operational mode selection (bridge, stereo or parallel) and input sensitivity selection. – 750 W x 750 W at 4 Ω – Input Sensitivity Selector – Stereo/Bridged/Parallel Operation – speakON output connectors – Clip, protection and Signal present LED indicators PA 1500 Features
Stereo Mode (both channels driven) 8 ohms EIA 1 kHz 1% THD 500 W
4 ohms EIA 1 kHz 1% THD 750 W
Bridge Mono Mode -8 ohms EIA 1 kHz 1% THD 1500 W
Frequency Response 20 Hz-20 kHz +0-1 dB
Signal to Noise Ratio (20 Hz-20 kHz) > 100 dB
Distortion (SMPTE-IM) ≤ 0.35%
Total Harmonic Distortion (20 Hz-20 kHz) ≤ 0.35%
Damping Factor @ 8 ohms > 200
Input Sensitivity @ 4 ohms 0.775 V o 1.4 V
Voltage Gain 33 dB
AC Requirements 230 V AC 50 Hz
Current Draw (1/3 power @ 230 V) 7.5 A
Dimensions (H x W x D) 8.8 x 48.2 x 22.7 cm
3.5 x 19 x 8.9 in
Weight 13.5 kg
29.8 lb
