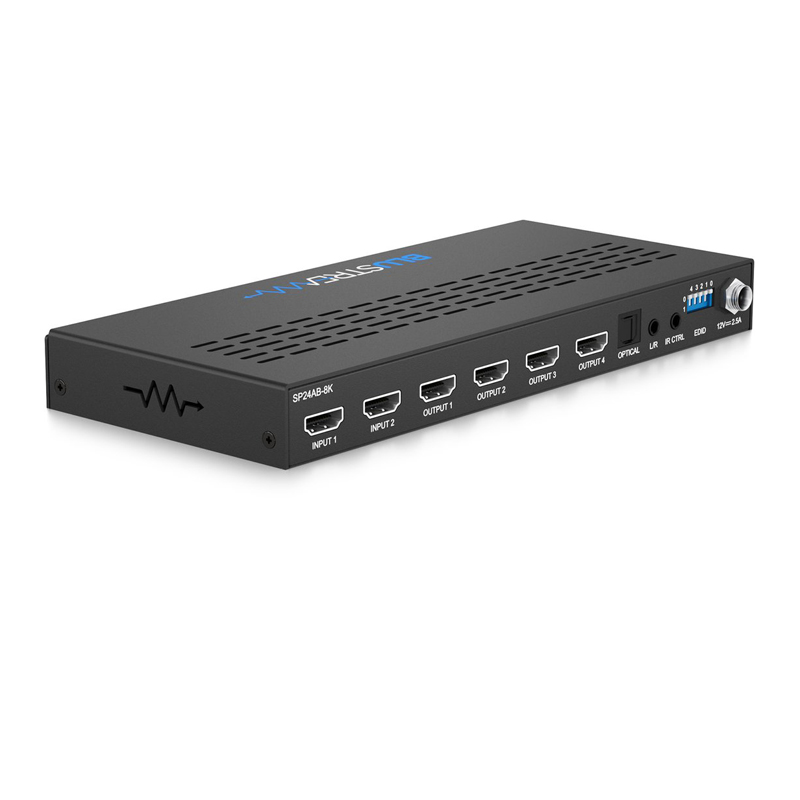

SP24AB-8K - 4-Way 8K HDMI Splitter

Product Description

With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5V hot plug, a new TMDS signal; or manually using IR or the front panel. Analogue and coaxial digital (S/PDIF) audio breakout allows for audio integration, HDCP2.3 compliant, and advanced EDID management.

Key Features:

• Features 2x selectable HDMI 2.1 inputs that are split to 4x HDMI outputs
• Supports HDMI 2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5V and / or TMDS signal sensing
• Manual HDMI source switching via front panel and IR
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• 5V / 12V IR Compatible
• HDCP 2.3 compliant with advanced EDID management

Specifications:

• Video Input Connectors: 2x HDMI Type A, female
• Video Output Connectors: 4x HDMI Type A, Female RJ45 connector
• Audio Output Connectors: 1x Analogue left / right audio (3.5mm stereo jack), 1x Optical S/PDIF socket
• IR Input Port: 1x 3.5mm stereo jack
• Upgrade Port: 1x Micro USB connector
• Casing Dimensions (W x D x H): 212mm x 94mm x 23mm
• Power Supply: 12V/2.5A DC connector
• Box Dimensions (W x D x H): 265 x 135 x 90mm
• Shipping Weight: 1kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)

Box Contents:

• 1 x SP24AB-8K
• 1 x 12V/2.5A DC power supply
• 1 x IR Receiver
• 1 x Mounting kit
• 4 x Rubber Feet
• 1 x Quick Reference Guide
