VANTEC-218A – Powered Subwoofer

The VANTEC-218A is a powered bass subwoofer system designed to provide extended bass response for the VANTEC full-range cabinets. A powerful 4000 Wpeak amplifier drives dual DAS 18LX-long excursion bass loudspeakers incorporating 4″ voice coils and massive magnet structures provide high power handling and impressive output.

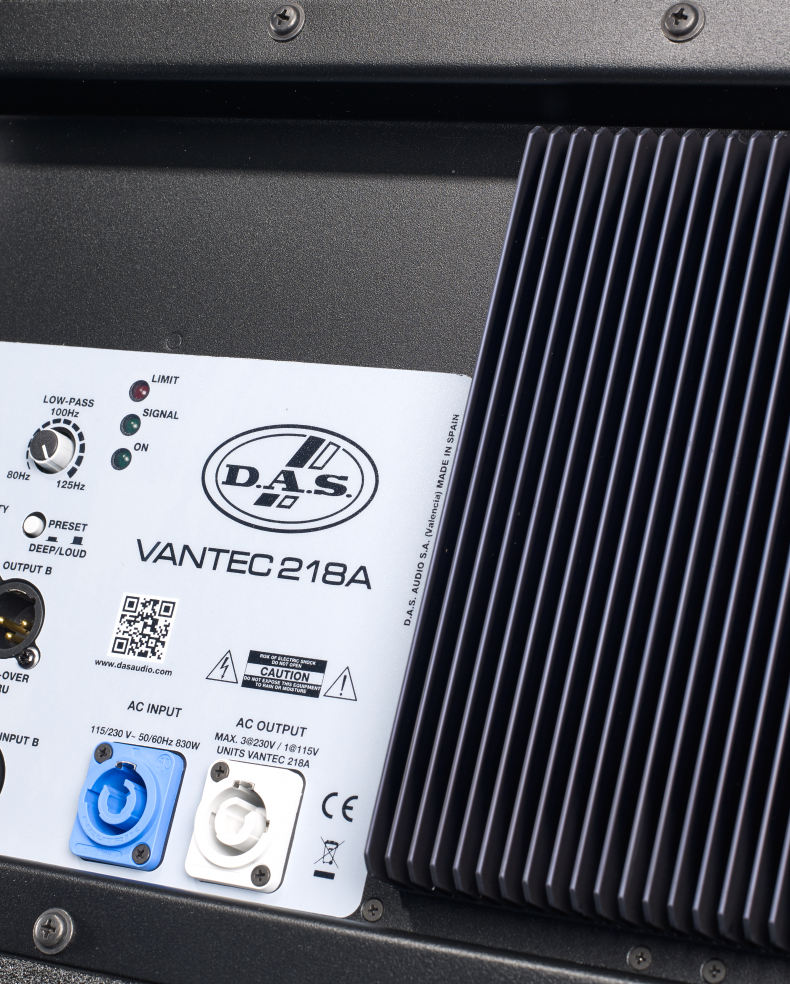

The VANTEC-218A is powered by a Class D amplifier with switch mode power supply, digital signal processing and a 4000 Wpeak power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.

The compact VANTEC-218A cabinet is manufactured using birch plywood and is finished with a coating of the highly resistant ISO flex black paint for durability. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier. The powder-coated steel front grille protects the DAS components.

Product Description

Features:
  • Powered subwoofer system
  • 4000 Wpeak Class D amplifier
  • EQ Presets: Deep, Loud
  • Variable Low Pass Filter
  • Sub level gain control, polarity reverse
  • Logo on/off switch
  • Rigging points
Applications:
  • Concerts and corporate A/V
  • Portable and live clubs
  • Theaters and auditoriums
  • Houses of worship

Downloads

Data Sheet
