VMX88 - Audio Installation Processor

Processing [96kHz]

• Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
• Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
• Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release,
• Ratio, Soft-Knee
• Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
• Input Dynamic EQ (per channel) : 2 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
• Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
• Routing Inputs to Outputs: Full matrix mixer including all local and Dante inputs to local outputs
• Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
• Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
• Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
• Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
• Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option
• Presets : Up to 30

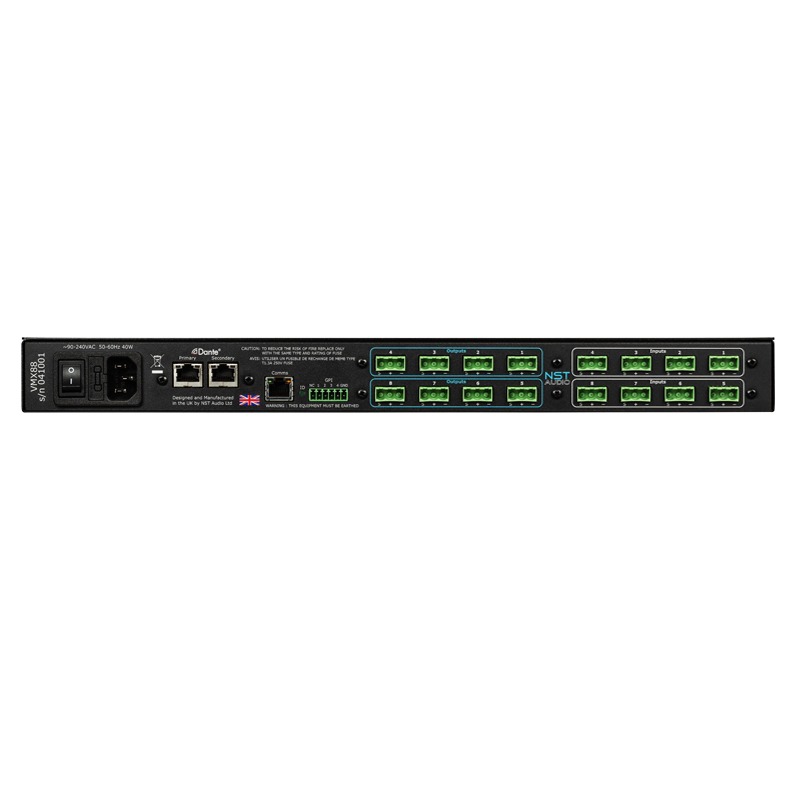

• Networked Audio : 8in / 8out Dante channels on dual redundant RJ45 connectors
• Comms : 100Mbps Ethernet on rear panel (RJ45 connector)

Power Requirements

• 3-pin IEC input, fused
• 90-250VAC, 50-60Hz < 40W

Dimensions

• Height : 44mm (1.75inch) 1U
• Depth : 170mm (6.75 inches)
• Width : 482mm (19 inches)

Weight

• Net : 2.2kg
• Shipping : 3.4kg

Due to continuing product improvement the above specifications are subject to change.
