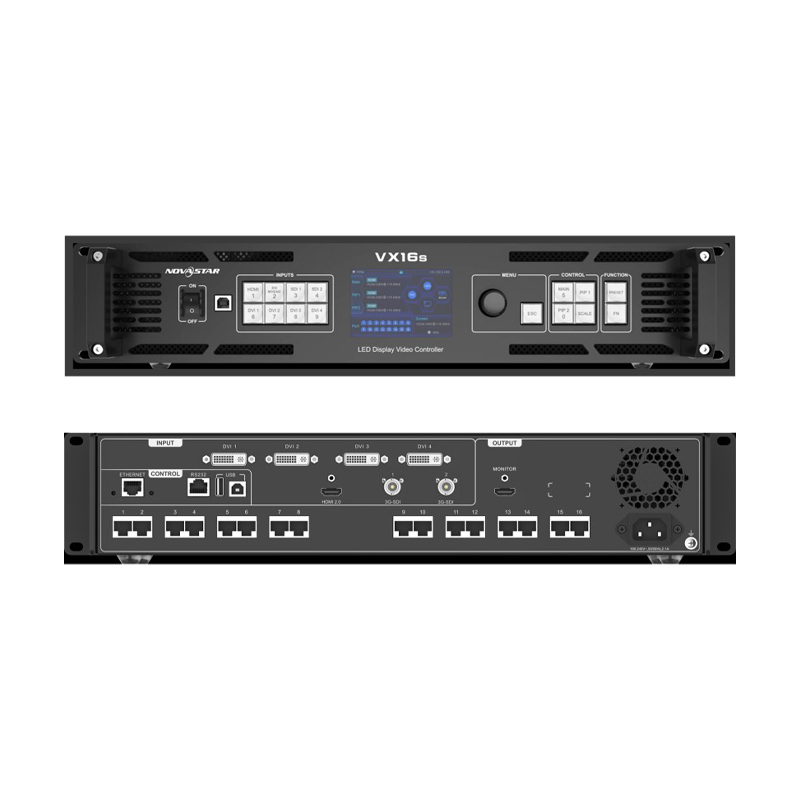

VX16S - Professional LED Video Processor

Product Description

Together with Novastar’s V-Can video control software, it enables richer image mosaic effects and easier operations.

The VX16s novastar led controller supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.

Thanks to its powerful image processing and sending capabilities, the Nova VX16S video screen controller ​can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.

• Industry-standard input connectors

2x 3G-SDI
1x HDMI 2.0
4x SL-DVI

• 16 Ethernet output ports load up to 10,400,000 pixels.

• 3 independent layers

1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
Adjustable layer priorities

• DVI mosaic

Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.

• Decimal frame rate supported

Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.

• 3D

Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.

• Personalized image scaling

Three scaling options are pixel-to-pixel, full screen and custom scaling.

• Image mosaic

Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

• Easy device operation and control through VCan

• Up to 10 presets can be saved for future use.

• EDID management

Custom EDID and standard EDID supported

• Device backup design

In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.

Key Features:

• Loading Capacity: 10.4 million pixel
• 2x 3G-SDI 1920×1080@60Hz
• 1x HDMI 2.0 3840×2160@60Hz
• 4x SL-DVI 1920×1080@60Hz
• DVI mosaic
• 3 independent layers
• 1x 4K×2K main layer
• 2x 2K×1K PIPs (PIP 1 and PIP 2)
• Adjustable layer priorities
