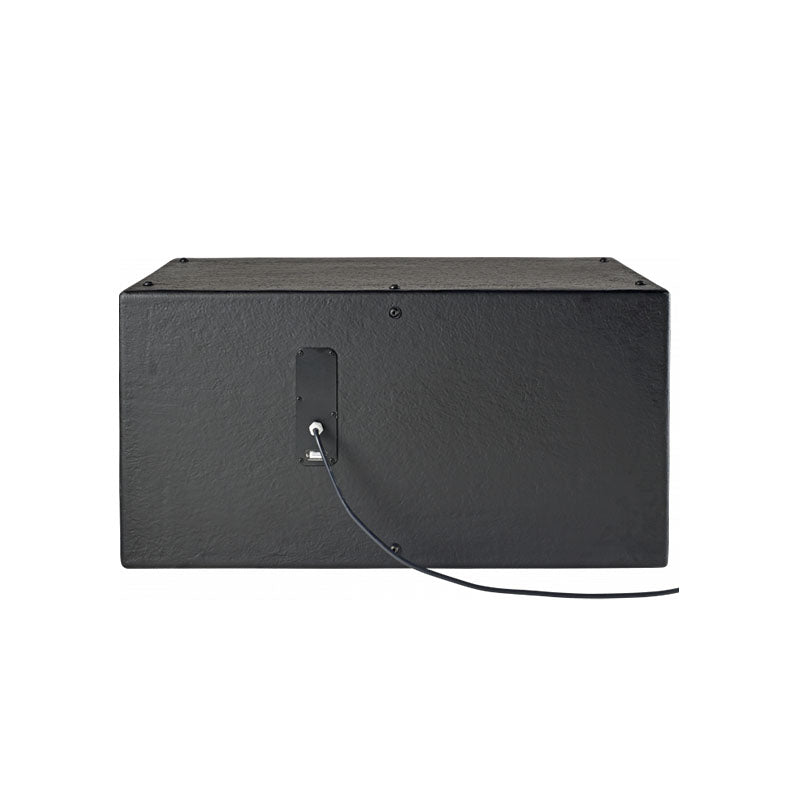

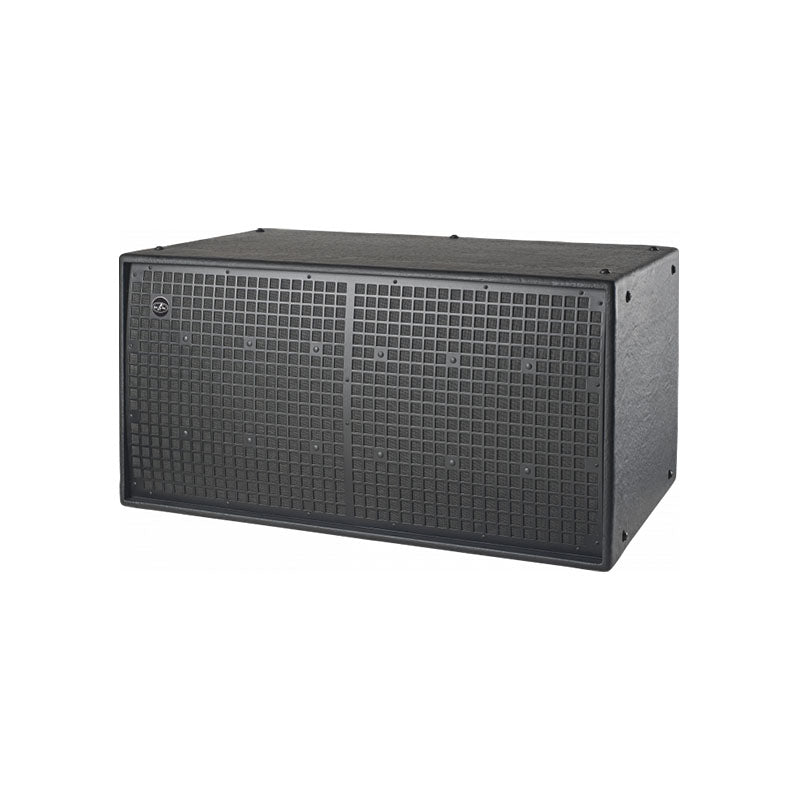

WR-218S-DX - Passive Subwoofer

WR-218S-DX is an externally powered, high-performance subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The WR-218S-DX incorporates two 18LX long excursion cone transducer.

Product Description

 WR-218S-DX is an externally powered, high-performance subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The WR-218S-DX incorporates two 18LX long excursion cone transducer.
Designed for the outdoor installation market, the WR-218S models are available in two finishes. The CX (covered exposure) finish for applications where cabinets are covered or protected, and DX (direct exposure) finish where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Performance
Frequency Range (-10 dB) 29 Hz – 160 Hz
Nominal Impedance 4 ohms
RMS Power Handling 2000 W
Peak Power Handling 8000 W
On-axis Sensitivity 1W/1 m 99 dB SPL
Maximum Peak SPL at 1 m 139 dB
Recommended Amplifier DX-100-230 DX-100-115
Recommended Processor DSP-2060A
Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish Fiberglass
Color Black
IP Rating IP54
Depth 675 mm (26,6 in)
Dimensions ( H x W x D ) 550 x 1.065 x 675 mm 21,7 x 41,9 x 26,6 in
Net Weight 76,0 kg ( 167,2 lb )
Components
LF Driver 18LX
Shipping
Carton Dimensions ( H x W x D ) 595 x 1.145 x 722 mm 23,4 x 45,0 x 28,4 in
Shipping Weight 80,0 kg ( 176,0 lb )

Download

Catalog
