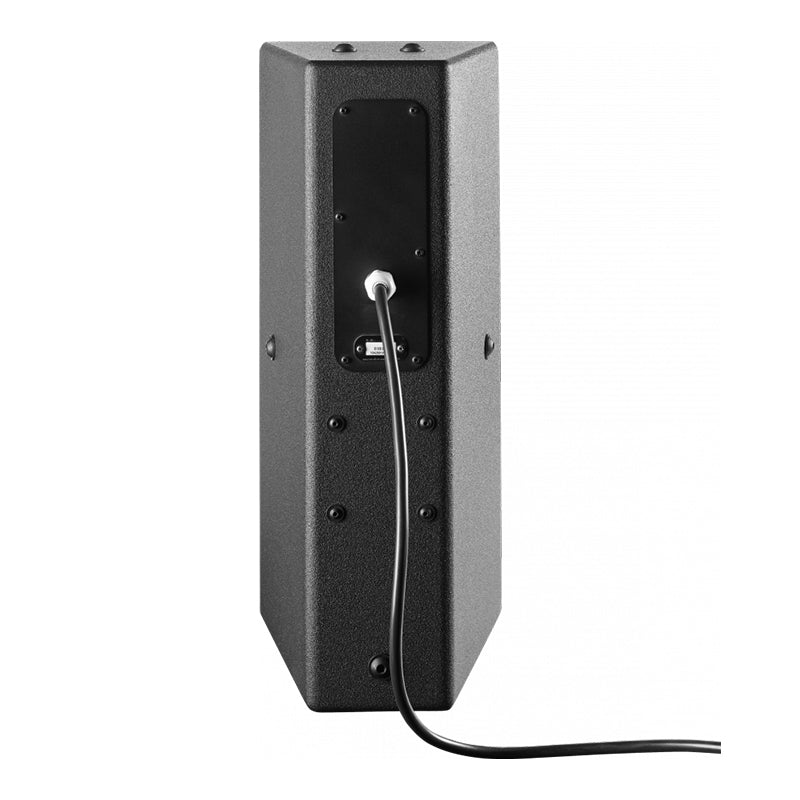

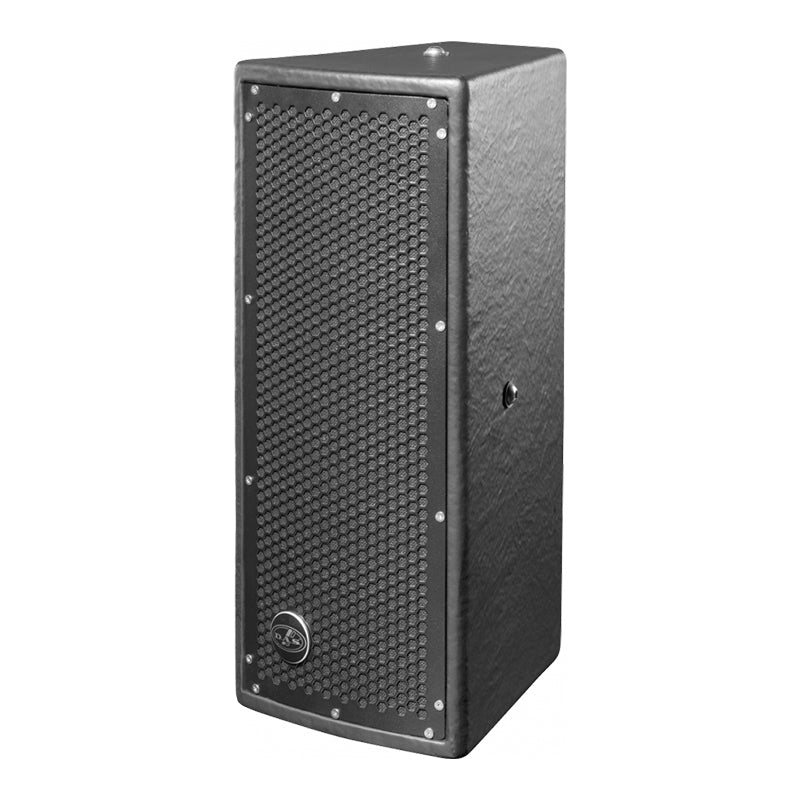

WR-8826-CX-Twin 6B Woofers

The WR-8826-CX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.

Product Description

The WR-8826-CX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.

The WR-8826-CX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.

Features

EN54-24 certified for use in voice alarm systems
Weather resistant, environmental performance IP56
Twin 6″ loudspeaker
1″ annular diaphragm compression driver
Threaded fixing points for wall mounts
Rating CX (covered exposure)
Rating DX (direct exposure)



Performance
Frequency Range (-10 dB) 70 Hz – 20 kHz
Horizontal Coverage (-6 dB) 80º
Vertical Coverage 80º
Nominal Impedance 8 ohms
RMS Power Handling 200 W
Peak Power Handling 800 W
On-axis Sensitivity 1W/1 m 93 dB SPL
Maximum Peak SPL at 1 m 122 dB
Recommended Amplifier DX-80-230
DX-80-115
Recommended Processor DSP-2040
Connectors
Audio Input Connector Barrier Strip
Audio Output Connector Barrier Strip
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
IP Rating IP-56
Dimensions ( H x W x D ) 550 x 230 x 270 mm
21,7 x 9,1 x 10,6 in
Net Weight 12,0 kg ( 26,5 lb )
Components
LF Driver 6B
HF Driver M-1
Horn/Waveguide BC-88
Shipping
Carton Dimensions ( H x W x D ) 608 x 274 x 345 mm
23,9 x 10,8 x 13,6 in
Shipping Weight 13,0 kg ( 28,7 lb )

Download

Catalogue
