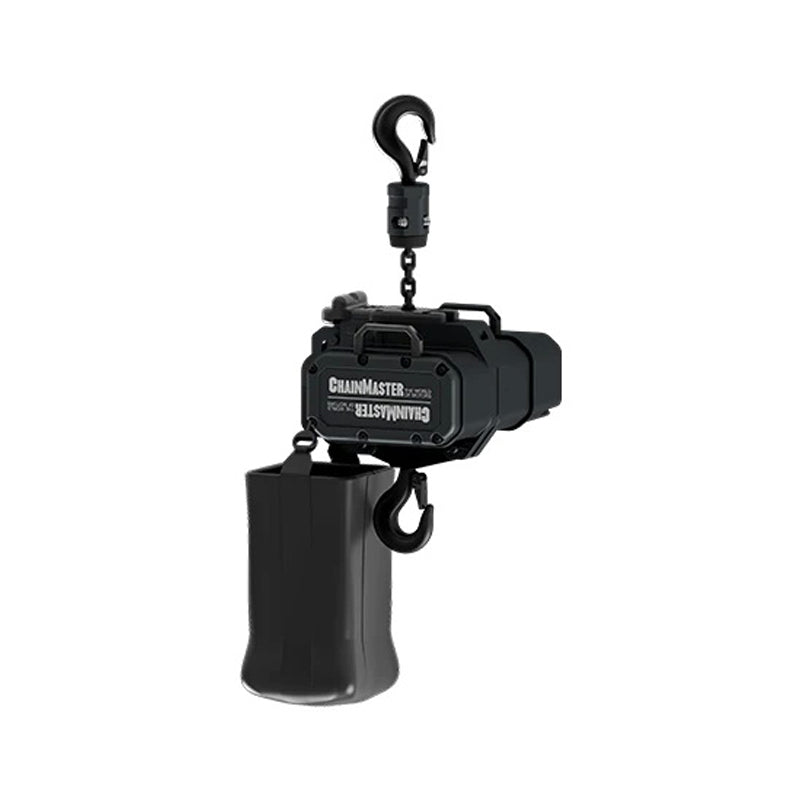

ChainMaster D8 1000 kg electric chain hoist (model SK070/16), handmade in Germany and built to the D8 (DGUV V54) standard for entertainment rigging. It lifts at 4 m/min, has two maintenance-free DC brakes and a patented friction clutch outside the load path, and works in both standard and climbing positions. Choose the chain length option you need.

Specifications

• Safe working load: 1,000 kg
• Lifting speed: 4 m/min
• Standard: D8 (DGUV V54), safety factor 5:1
• Chain: 7 x 22 mm black DAT, EN 818-7
• Chain length: 25 m or 32 m (32 m version: direct control, DC)
• Brakes: 2 maintenance-free DC brakes
• Clutch: patented friction clutch, not in the load path
• Position: climbing and standard
• Motor: 1.1 kW, duty cycle 40%
• Protection: IP55 (IP66 optional)
• Included: Flip-Bag chain bag
• Weight: 31 kg without chain, hook and suspension
