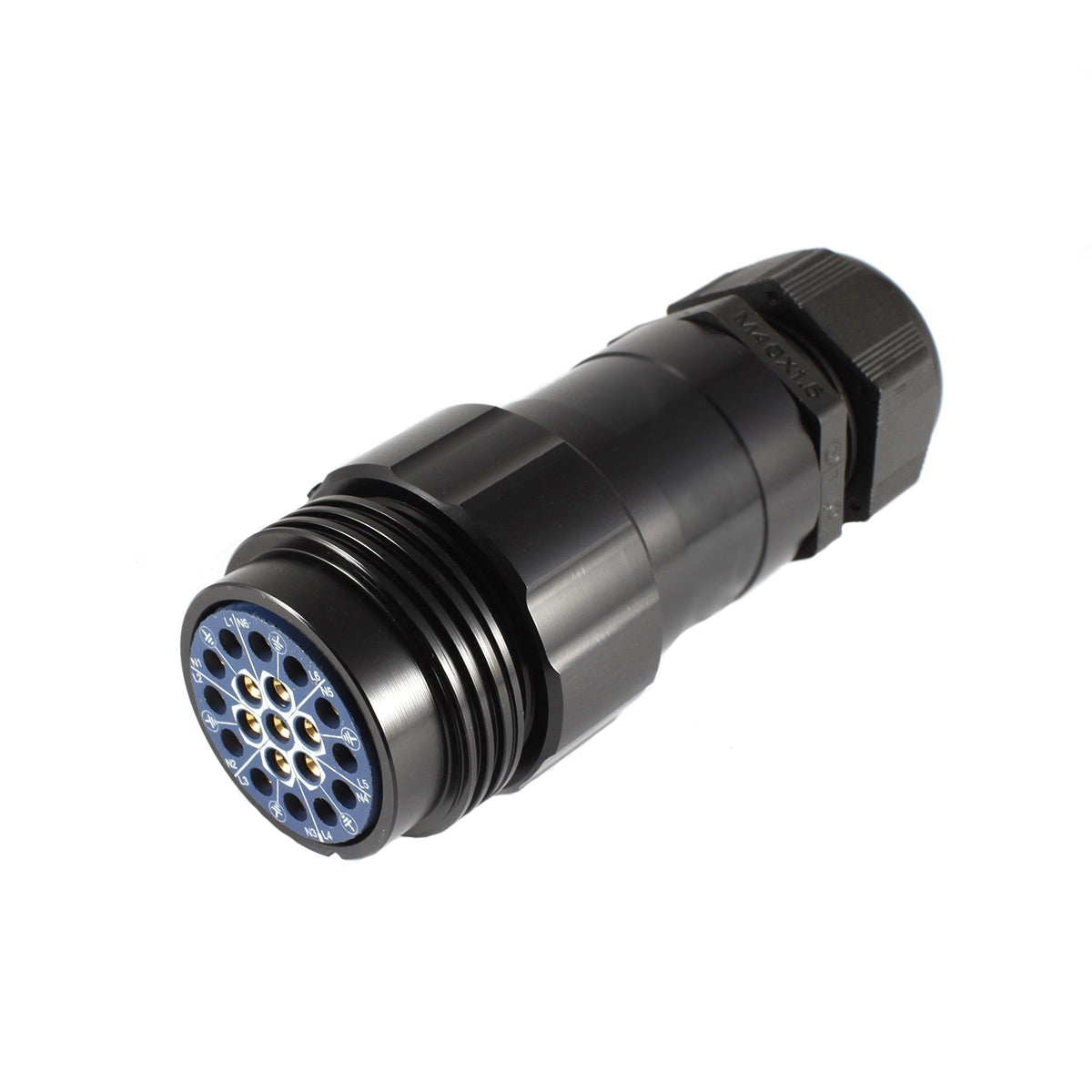

19 Pin Female InLine Solder connector with Lock Ring for 15-23mm Cable Glanding

Machined Aluminum Metal Shell, 600V, 23A per circuit, Solder termination, IP67 when Mated - Made in the UK

Grade 19 Pin Socapex connector has a machined aluminum metal shell for a reliable connection show after show. Comes with Silicone insert for a standard size Socapex cable.

Higher Rating

• SHL Connectors are rated 23 Amps, 600 VAC.
• Each circuit can carry up to a maximum of 23 Amps continuous load.
• Interiors are clearly and permanently marked on front and back for ease of wiring and circuit identification.

Specifications:

• Current Rating 23 Amps
• Voltage Rating 600 VAC Max
• Operating Temp –55°C / +60°C
• Ingress Protection IP67 watertight when mated
• Shells Machined Aluminum
• Finish Hard wearing Black
• Insert Silicone
• Cable Entry Standard M40 – 15–23mm
• M40 O/S – 26–32mm
• Conductor Size Standard 1.5 mm/2.5 mm
• Contacts Silver Plated Brass
