Technical Specifications

Description

Technical Specifications:

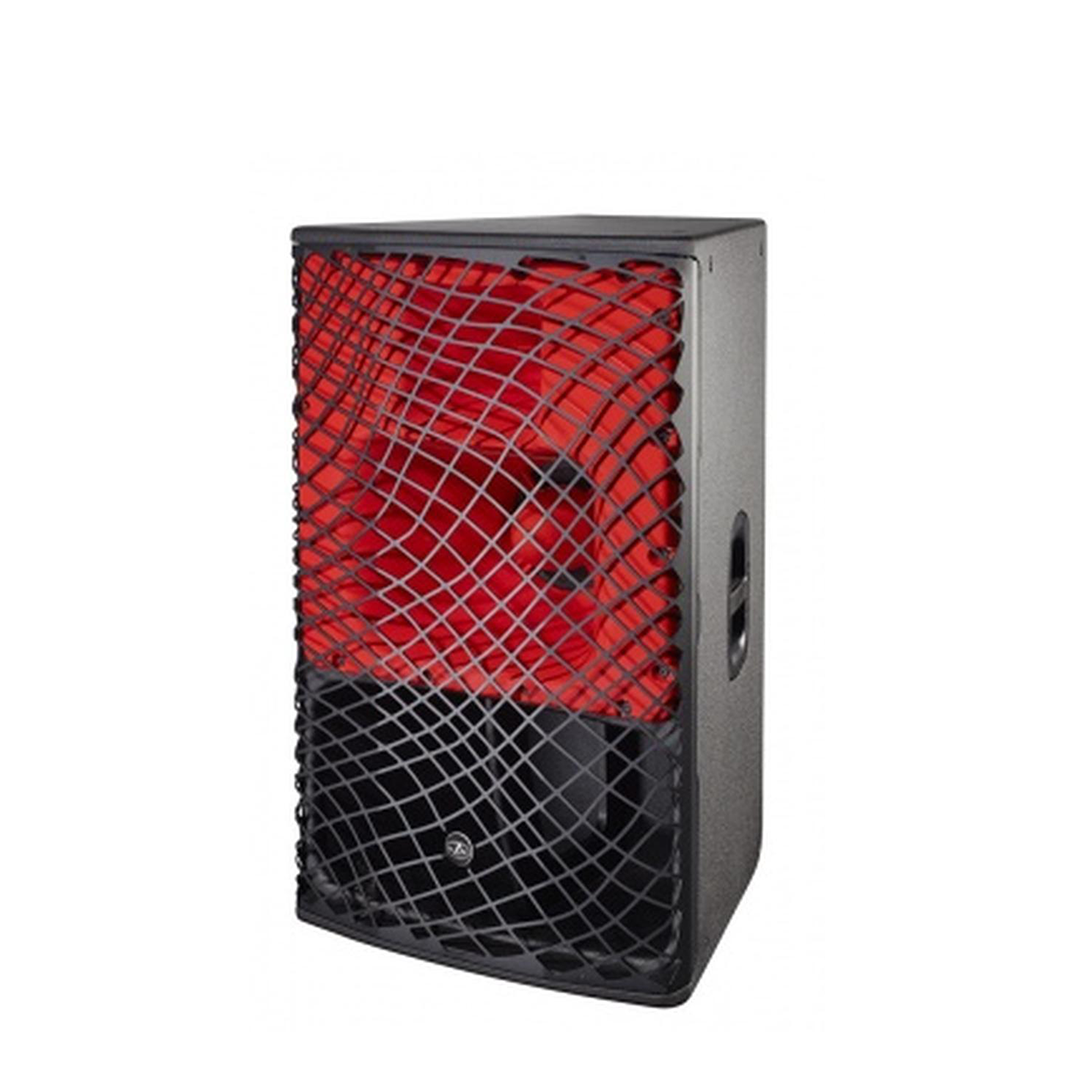

  • Three-way full-range system
  • 1 x 15GNR horn loaded bass
    loudspeaker
  • 1 x 8AN? horn loaded mid-range
    loudspeaker
  • M-75N neodymium compression driver
  • Selectable biamp/triamp operating
    modes
  • Tight 40º x 30º coverage angles
  • Rotatable horn for vertical or
    horizontal positioning
  • Loudspeaker Mount Type – Ceiling
  • Maximum Frequency Response
    (Bandwidth): 20 kHz
  • Maximum Frequency Response
    (Bandwidth): 20000 Hz
  • Minimum Frequency Response
    (Bandwidth): 70 Hz
  • Minimum Frequency Response
    (Bandwidth): 0.07 kHz
  • Impedance: 8 ohm
  • Maximum SPL (Sound Pressure
    Level): 140 dB
  • Power Handling: 700 Watt
  • Sensitivity: 106 dB
  • Depth: 23 in
  • Height: 38.60 in
  • Width: 24 in
  • Product Weight: 167.55 lbs
