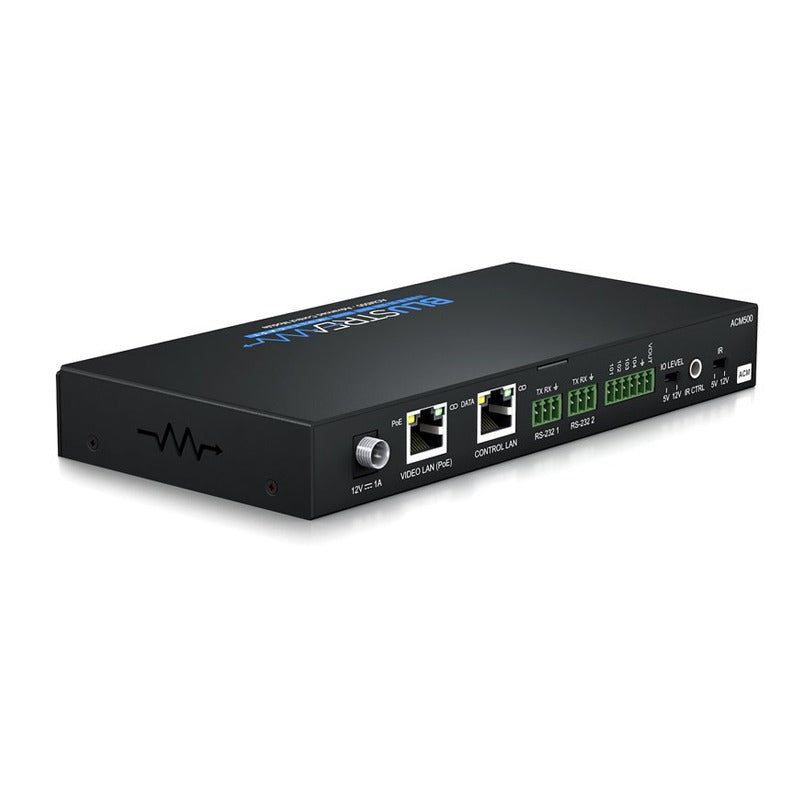

The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.

Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Key Features:

• Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast system
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• Auto system configuration
• 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:- Better system performance as network traffic is separated- No advanced network setup required- Independent IP address per LAN connection- Allows simplified TCP/IP control of Multicast system
• Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
• 5V/12V IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should Ethernet switch not support PoE
• Support for iOS and Android App control
• 3rd Party drivers available for all major control brands

Specifications:

• Ethernet Port: 2 x 1Gb LAN RJ45 connector (1x PoE support)
• RS-232 Serial Port: 2 x 3-Pin Phoenix connector
• I/O Port: 1 x 6-Pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• PoE draw: 7.9W (typical), 8.4W (max load)
• Product Upgrade: 1 x Micro USB, female
• Dimensions (W x D x H): 190.4mm x 93mm x 25mm
• Shipping Weight (Kit): 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: PoE or 12V/1A DC

Box Contents

• 1 x ACM500
• 1 x IR Control Cable - 3.5mm to 3.5mm Cable
• 4 x Rubber Feet
• 1 x Mounting Kit
