Key Features

• Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
• Dual HDMI / HDBaseT™ on output 2
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
• Independent video scaling on outputs
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Seamless source switching with manual or auto source selection
• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
• Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
• ARC breakout available via S/PDIF when using RX70CS receiver
• Analogue audio inputs and output support both balanced and unbalanced audio
• Features MIC mixer over source audio with independent level adjustment
• MIC input supports line level or 48V Phantom power
• Configurable source and display control via CEC, RS-232 and IR
• Web interface module for control and configuration of matrix
• 3rd party drivers available for major control brands
• HDCP 2.2 compliant with advanced EDID management

*All features designed to work with the Blustream RX70CS HDBaseT™ receiver. HDBaseT™ output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.

Specifications

• Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
• Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
• Audio Input Connectors: 2 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio)
• MIC Input Connectors: 1 x 3-pin phoenix connector
• Audio Output Connectors: 1 x 5-pin phoenix connector (2ch balanced unbalanced analogue audio), 1 x Optical Toslink (S/PDIF)
• RS-232 Serial Ports: 1 x 3-pin phoenix connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 2 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Product Upgrade: 1 x USB Type A female
• Rack Mountable: 1U rack height, rack ears included
• Casing Dimensions (W x H x D): 437mm x 44mm x 265mm
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 24V/5A DC

Box Contents

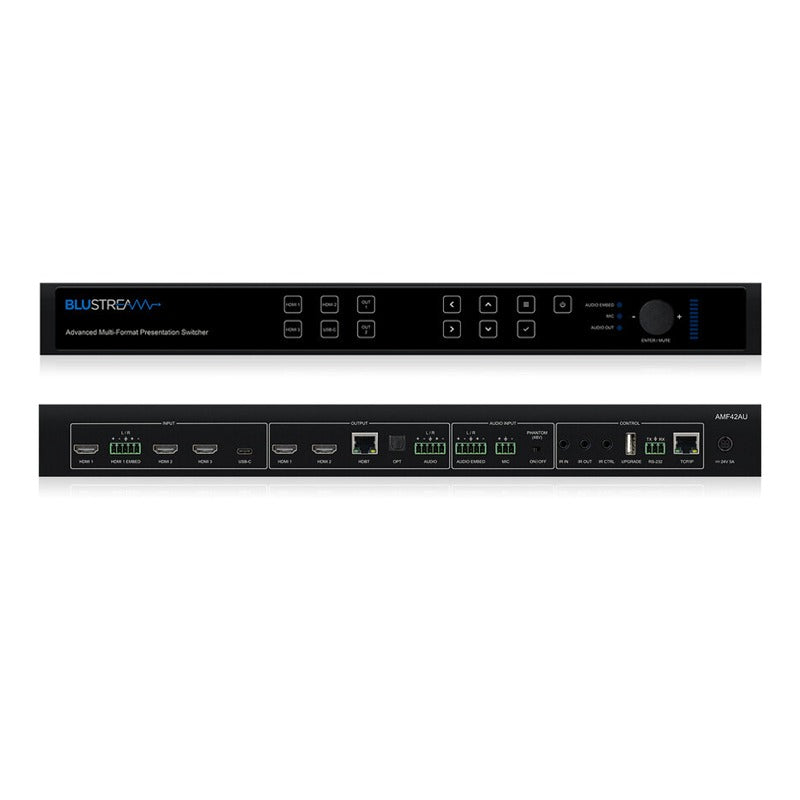

• 1 x AMF42AU
• 1 x IR Remote Control
• 1 x 24V/5A DC Power supply
• 1 x Rack Mounting Kit
• 1 x IR Receiver
• 1 x IR Emitter
• 1 x RS-232 Control Cable
• 1 x Quick Reference Guide
