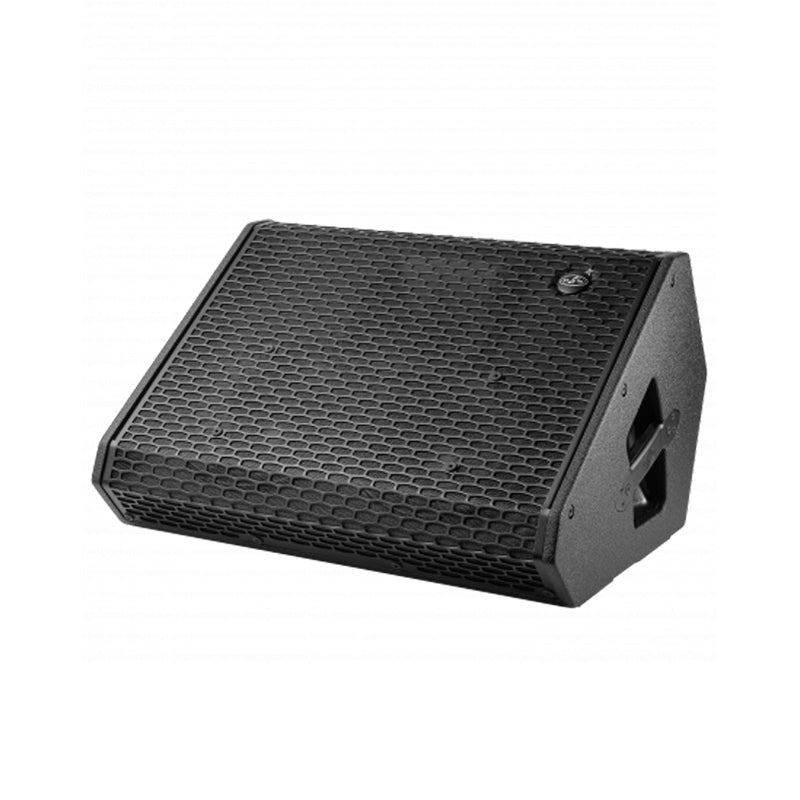

This monitor operates within a frequency range of 55 Hz to 20 kHz and is powered by a class D amplifier capable of delivering 1200 W continuously and 2400 W at peak. The maximum SPL of 143 dB ensures ample volume and clarity for live performance settings.

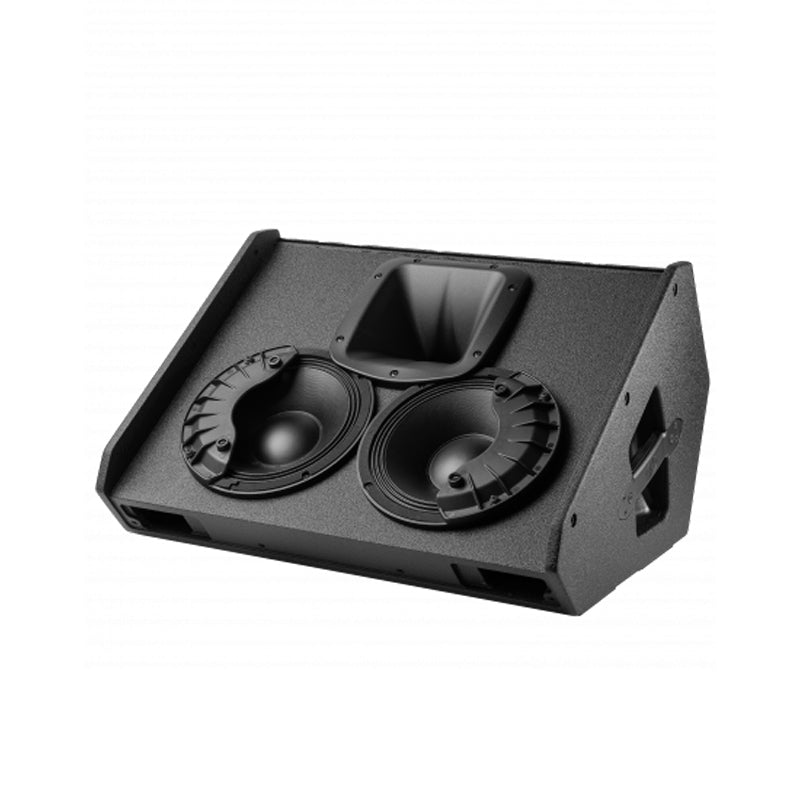

The custom-designed 10GXN transducers handle mid and low frequencies, while the M-78N compression driver manages the high frequencies, together providing a clear and reliable sound output. The ARA-M210’s enclosure, made from durable birch plywood and finished with ISO-flex paint, is built to withstand the rigors of touring and frequent use.

The monitor’s electronic architecture includes a 96kHz sampling rate with advanced digital signal processing. The inclusion of Finite Impulse Response (FIR) filters ensures acoustically flat magnitude and phase response, facilitating coherent audio output.

Sound control and management are accomplished through the ALMA software interface, allowing for precise adjustments to fit any performance requirement. The ARA-M210 is designed with both functionality and performance in mind, offering balanced sound delivery for professional stage applications. Its robust construction and advanced technology make it a reliable choice for sound reinforcement in different live settings.

Key Features:

• Self-powered stage monitor system.
• 2-channel Class D amplifier, 1200Wrms.
• 96kHz FIR processing.
• Control, monitoring, and EQ via IP through ALMA™.
• 2 x 10″ (10GXN) + Compression driver, 3″ VCD (M-78N)
• Latest generation transducers with Neodymium.
• Coverage: Horizontal 50º x Vertical 40º down/ 30º up

Applications:

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services
