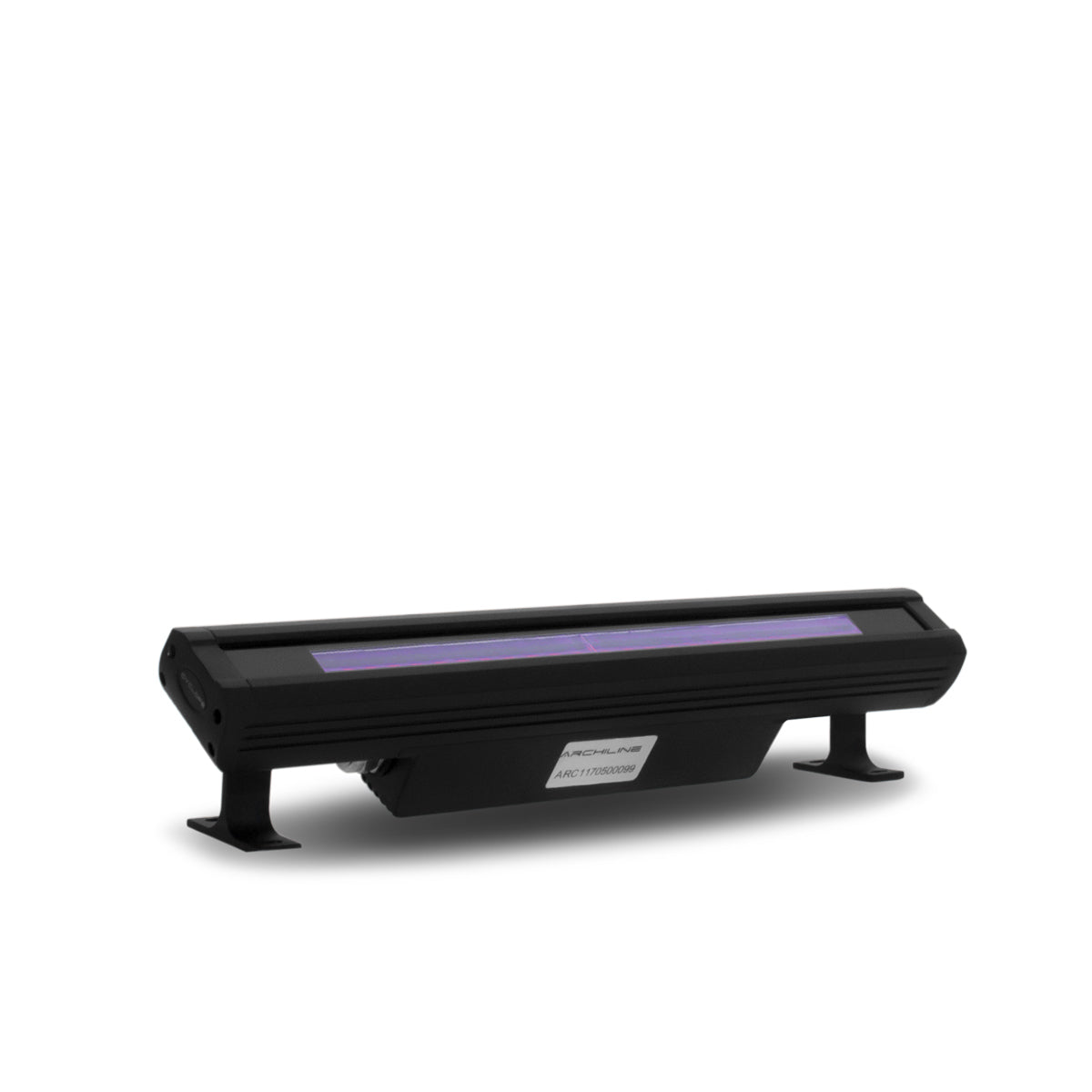

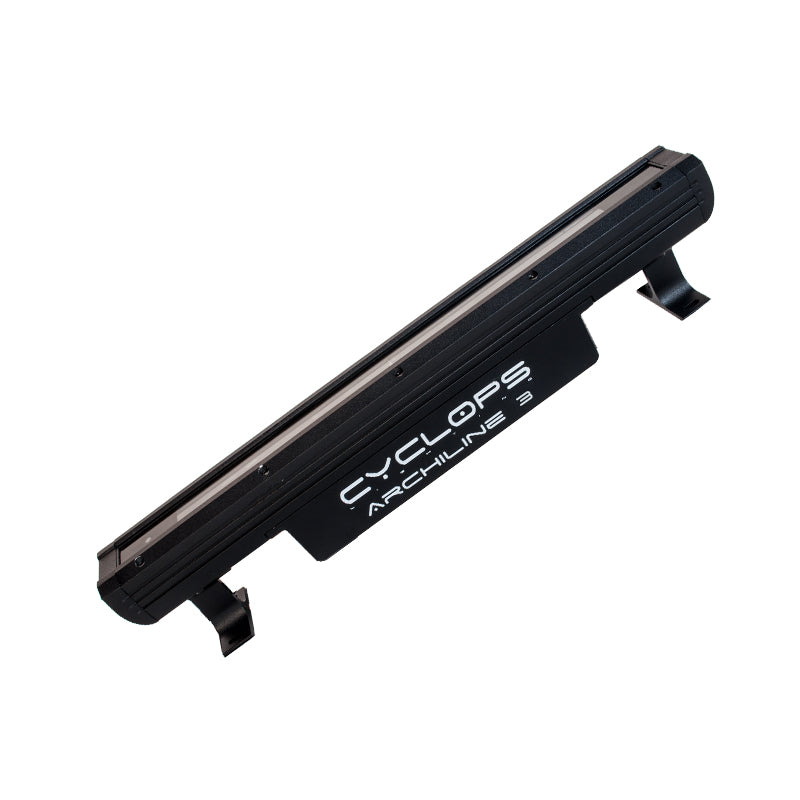

Archiline 3 is a 24 x 3 watts outdoor UV LED bar. This IP rated linear bar wash has high brightness output and is de­signed in a compact size to fit any indoor or outdoor architectural application.

SOURCE

• Light source: 24 x 3 watts, UV LED
• Lamp type: SMD LED, 35 x 35mm
• LED life expectancy: 50,000 Hrs

OPTICAL SYSTEM

• Beam angle: 60° x 10°
• Light output: 61 Lux @ 2m

ELECTRICAL

• Input voltage: 100-250V/50-60Hz
• Power consumption: 40 watts

 CONNECTIONS

• Power connections: IP rated screw type In/Out cable connectors

PHYSICAL

• Dimensions: 395 x 53 x 81mm
• Net weight: 2.1 Kg
• Color: Black
• Housing: Die cast aluminum cover
• IP rating: 66
• Operating temperature: -20°C/45°C
