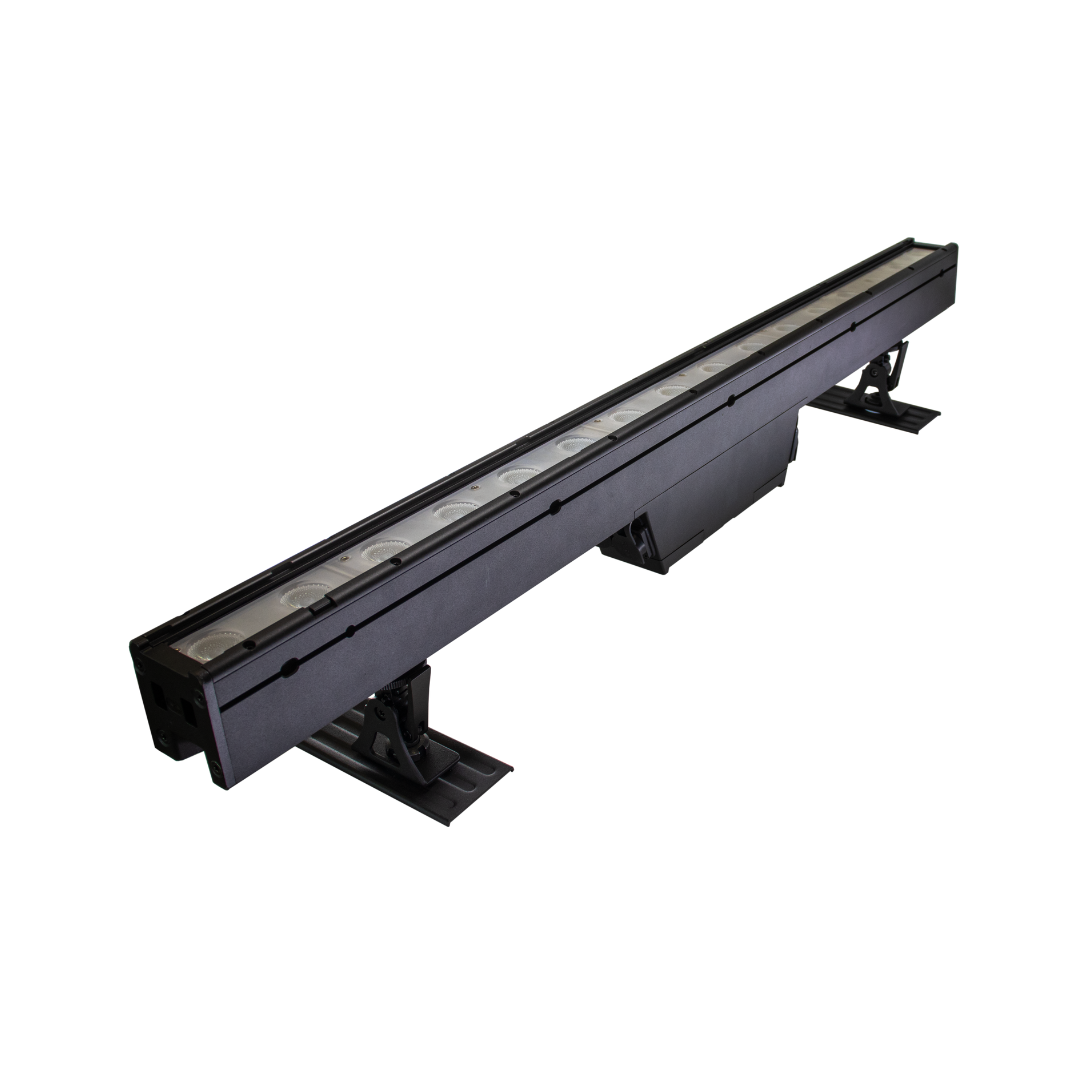

The AX2 PixelBar 100 is a wireless linear wash fixture with a built-in battery, designed for stage, event and film lighting. Sixteen pixels can be addressed individually, and the Gaggione precision optics give a native 21° beam with colour mixing starting just above the lenses.

Units connect with BarConnect+ without tools and set their own DMX addresses when linked. Multi-functional feet, an airline track on the bottom and back, and optional filters and barndoors allow it to be used as a wallwasher, side light or foot light. A JumpCable is available for connecting AX2-100 units without sagging.

Technical Specifications:

LED ENGINE
• Titan LED Engine, 16 pixels
• Colours: RGB, Mint, Amber
• Total LED power: 160 W (16 × 10 W)
• LED power draw: 80 W
• Light output: 3600 lm (2700 K), 4460 lm (3200 K), 4530 lm (5500 K)
• Light output at 1 m: 17,995 lx (2700 K), 22,125 lx (3200 K), 22,025 lx (5500 K)
• CRI (Ra) / TLCI: ≥96 (3200–6500 K)
• Strobe: 0–25 Hz, flicker-free

OPTICS
• Beam angle: 21°
• Gaggione precision optics

BATTERY
• Built-in battery, runtime up to 20 hours
• Runtime at maximum brightness: 2 h 50 min
• Battery lifetime: 70% capacity after 300 cycles
• Charging time (nominal): 5 hours

CONTROL
• Wired DMX (5-pin XLR in/out)
• Built-in CRMX receiver (2.4 GHz) and UHF module
• Wireless range: up to 300 m
• AsteraApp control
• Infrared control and auto-addressing
• On-fixture control panel with brightness and HSI buttons

POWER
• Input voltage: 96–264 VAC, 50/60 Hz, 2 A, 104 W
• Mains connectors: powerCON TRUE1 in/out

PHYSICAL
• IP rating: IP65 (indoor and outdoor use)
• Ambient temperature: 0–40 °C / 32–104 °F
• Weight: 7.4 kg / 16.3 lbs
• Dimensions with hook: 1020 × 165 × 65 mm / 40.1 × 6.5 × 2.6 in
• Dimensions without hook: 1000 × 165 × 65 mm / 39.4 × 6.5 × 2.6 in
• Multi-functional feet included
