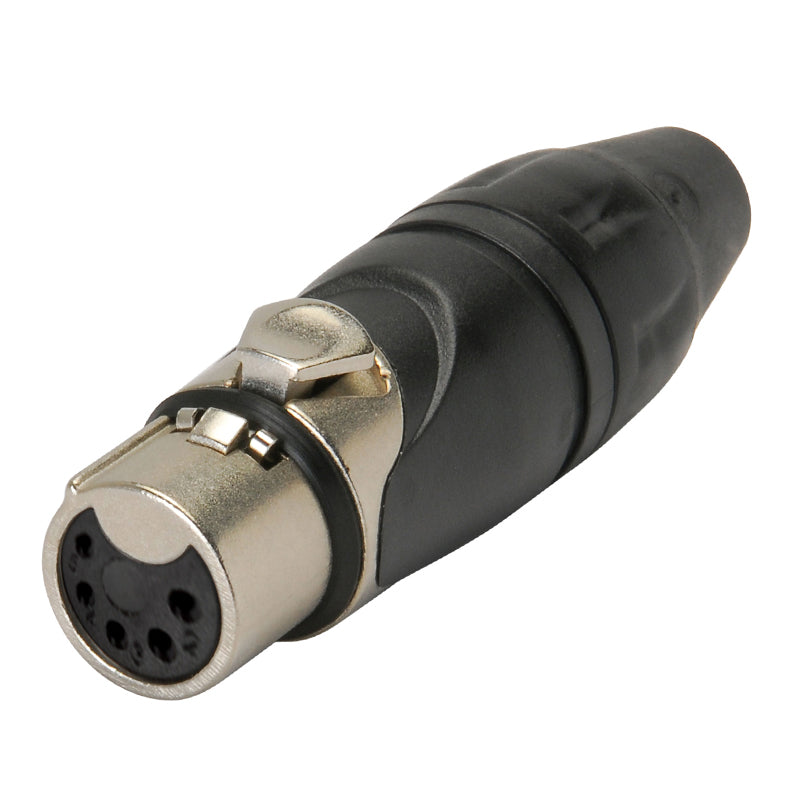

The AX5F is a 5pin female connector of the Amphenol AX series with standard nickel plating. The AX series XLR Cable Connectors introduce a contemporary look and feel to the professional audio industry. Theirfeatures guarantee quality sound performance in the most demanding applications. The design includes twin wipe contacts for a direct connection path providing ultimateconnection and EMI performance.

Product features

• Unique Australian designed shell and housing
• One piece ground / latch spring design incorporating twin wipe contacts for a direct connection path from mating shell to ground providing enhanced connection and EMI performance
• Ergonomic sleeve design for improved grip
• Channel I.D capability with coloured sleeves
• Oversized ergonomic latch for quick and easy mating
• Leading first mate last break pin 1 on socket connectors
• Chuck style cable clamp to suit 3mm – 8mm (0.118” – 0.314”) cable O.D. with integrated split to allow inclusion after soldering
• Concealed latching point for improved aesthetics, sealing and strength
• Overmolded boot with flex bend relief for improved aesthetics, cable protection and boot retention
• Concentric socket contact design provides optimal contact resistance
• Precision machined pin contacts as standard
• Compact solder buckets to reduce termination time and material wastage during the soldering process
• Zinc die-cast shell housing for robustness and wear with Satin nickel or Black finish
