Name: Azimut-KAMUT2V25 - Discreet Installed Audio System
Brand: K-Array

Brand: K-Array

Categories: Installed Sound

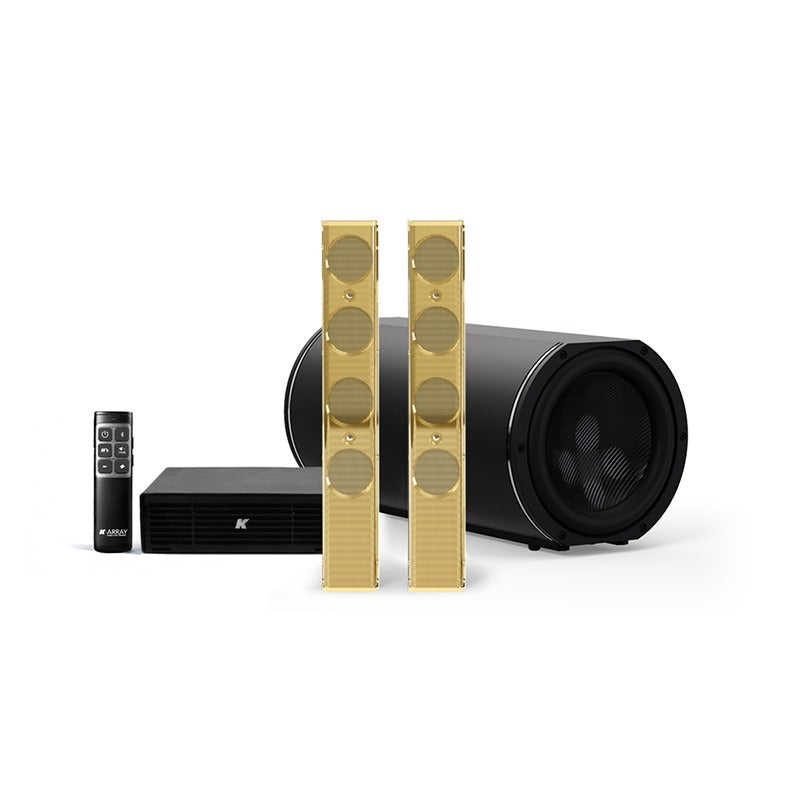

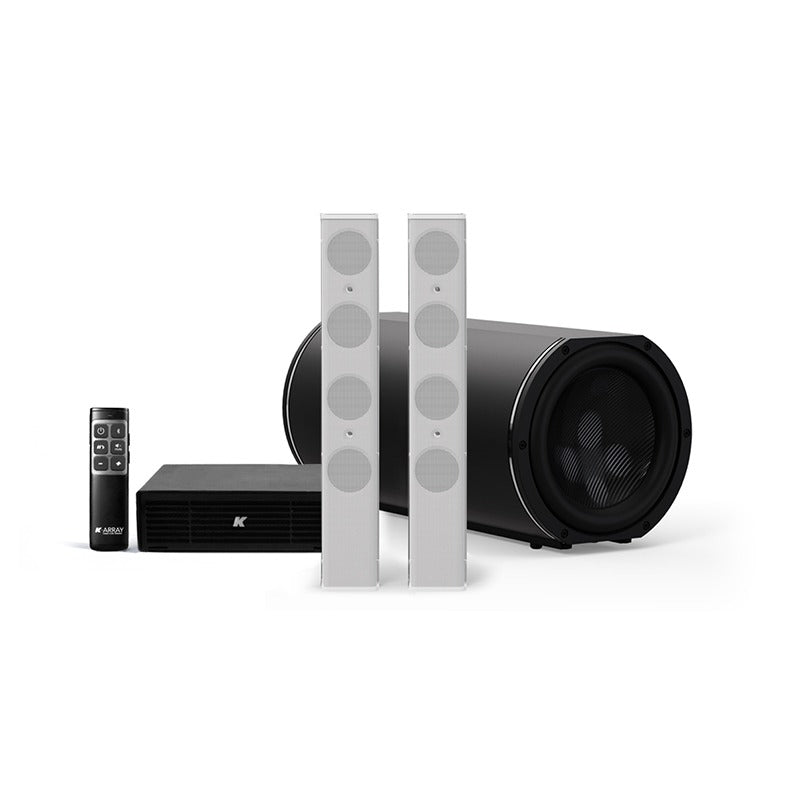

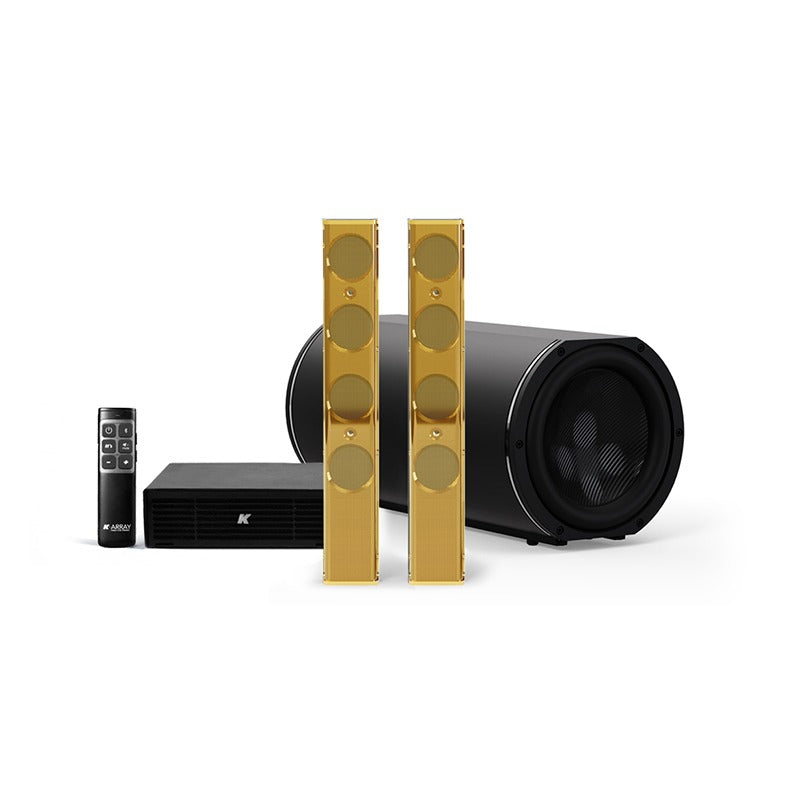

The largest system of the discreet line is the Azimut-KAMUT2V25, designed for when more power and a longer throw is required from an invisible profile, composed of two 25cm-long Vyper-KV25 loudspeakers, an ultra-compact Truffle-KTR26 subwoofer and a 144x144x26mm (5.7x5.7x1.8in) Kommander-KA02 amplifier and a covert remote control.

The Azimut-KAMUT2V25 is designed for larger rooms with higher sound requirements needed in a compact form, such as pubs, small conference and boardrooms, lounges and hotel lobbies.

Color: White

White

Product variants

Available

Pairs well with

Technical Specifications

Description

GENERAL

Power HandlingVyper-KV25 (mid-high): 75W, Truffle-KTR26 (subwoofer): 100W
ImpedanceVyper-KV25 (mid-high): 8 Ω / 32 Ω selectable
Truffle-KTR26 (subwoofer): 2 Ω
Frequency range (1)45 Hz – 18 kHz (-6 dB)
Maximum SPLVyper-KV25 (mid-high): 108 dB SPL (peak) (2)
Truffle-KTR26 (subwoofer): 120 dB SPL (peak) (3)
CoverageVyper-KV25 (mid-high): V. 25° | H. 140°
Truffle-KTR26 (subwoofer): omni

TRANSDUCERS

Subwoofer6.5" woofer + passive radiator
Mid-High frequency4 x 1" neodymium magnet woofers

AUDIO INPUT

Analog Balanced2 x 3-pin euroblock (Phoenix MC 1,5/ 3-ST-3,81)
Analog Unbalanced3.5 mm Jack Stereo
OpticToslink Connector
USB4 x USB 2.0
Bluetooth4.1 Bluetooth Low Energy

REMOTE

Remote Controllerwired or wireless
Hardware Control4 x GPIO ports (Phoenix MC 1,5/ 5-ST-3,81 BK)
Network10-100 Mbps Ethernet (RJ45), Wirelss LAN 802.11n

DSP PROCESSING

Sample Rate96 kHz
Bit Depth32 bit
Processingloudspeaker preset, EQ, signal routing, local streaming

AMPLIFIER

Type4-channel Class-D audio amplifier
Power4 x 50W @ 4Ω
ProtectionOutput Short Protection, DC Offset, Overtemperature, Undervoltage and Overvoltage, Open Ground and Power Tolerant
PowerDedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output

PHYSICAL OVERVIEW

DimensionsVyper-KV25: 40 x 260 x 22 mm (1.6 x 10.2 x 0.9 in)
Truffle-KTR26: 182 x 176 x 341 mm (7.1 x 6.9 x 13.4 in)
Kommander-KA02: 144 x 144 x 46 mm (5.7 x 5.7 x 1.8 in)
WeightVyper-KV25: 0,4 kg (0.88 lb)
Truffle-KTR26: 3,5 kg (7.72 lb)
Kommander-KA02: 0.5 kg (1.10 lb)
