Key Features

• Extends HDMI 1080p up to a distances of 120m over a single Coaxial cable
• Supports the following video resolutions: 480i, 576i, 720p, 1080i and 1080p
• Supports Bi-directional IR from input and output locations
• Supports audio formats up to 7.1ch
• Supplied with Blustream IR receiver and emitter
• Requires local power at both transmitter and receiver
• Smart EDID management
• HDCP 1.4 compliant

Specifications

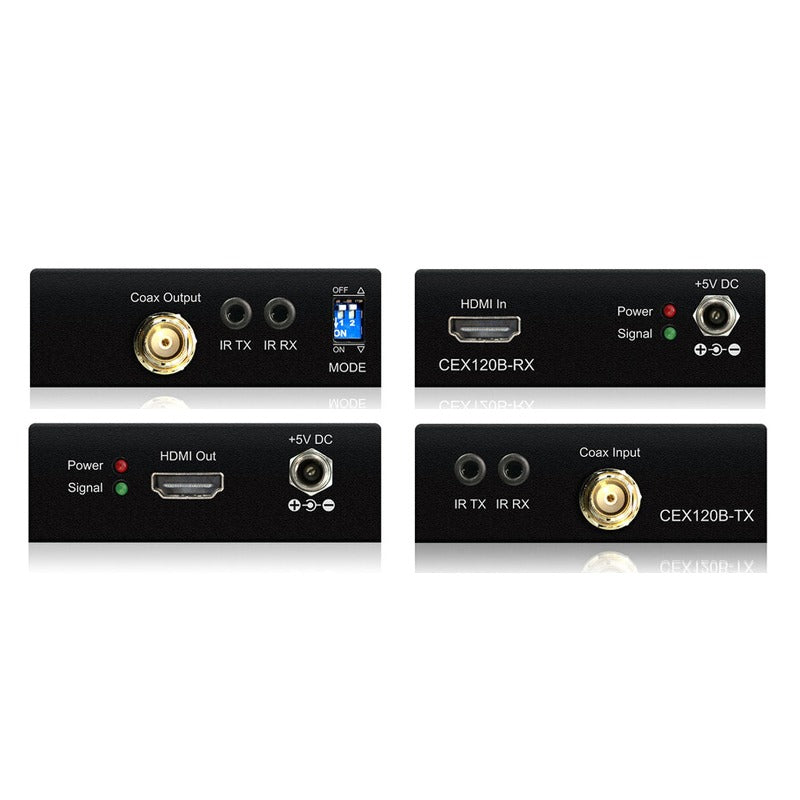

• CEX120B-TX:

- Video Input Connectors: 1 x HDMI Type A

- Video Output Connectors: 1 x BNC connector

- IR Input Ports: 1 x 3.5mm stereo jack

- IR Output Ports: 1 x 3.5mm mono jack

- Dimensions (Casing - W x D x H): 79mm x 84mm x 28mm

• CEX120B-RX:

- Video Input Connectors: 1 x BNC connector

- Video Output Connectors: 1 x HDMI Type A

- IR Input Ports: 1 x 3.5mm stereo jack

- IR Output Ports: 1 x 3.5mm mono jack

- Dimensions (Casing - W x D x H): 79mm x 84mm x 28mm

• Supported Video Resolutions: 480i 30Hz, 576i 25Hz, 720p 50Hz, 720p 60Hz, 1080i 25Hz, 1080i 30Hz, 1080p 24HZ, 1080p 30Hz, 1080p 60Hz
• Note:4K, 3D and 480i/p Video isnotsupported
• Supported Audio Resolutions: Dolby Digital (up to 7.1CH), DTS ES (up to 7.1CH), 2CH PCM
• Unit Weight: 2 x 0.25Kg
• Shipping Weight: 1.1Kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Box Contents

• 1 x CEX120B-TX
• 1 x CEX120B-RX
• 2 x 5V/1.2A DC Power Supply
• 1 x IR1 Emitter
• 1 x IRR Receiver
• 2 x Mounting Brackets
• 2 x F-type to BNC Adaptor
• 1 x User Manual
