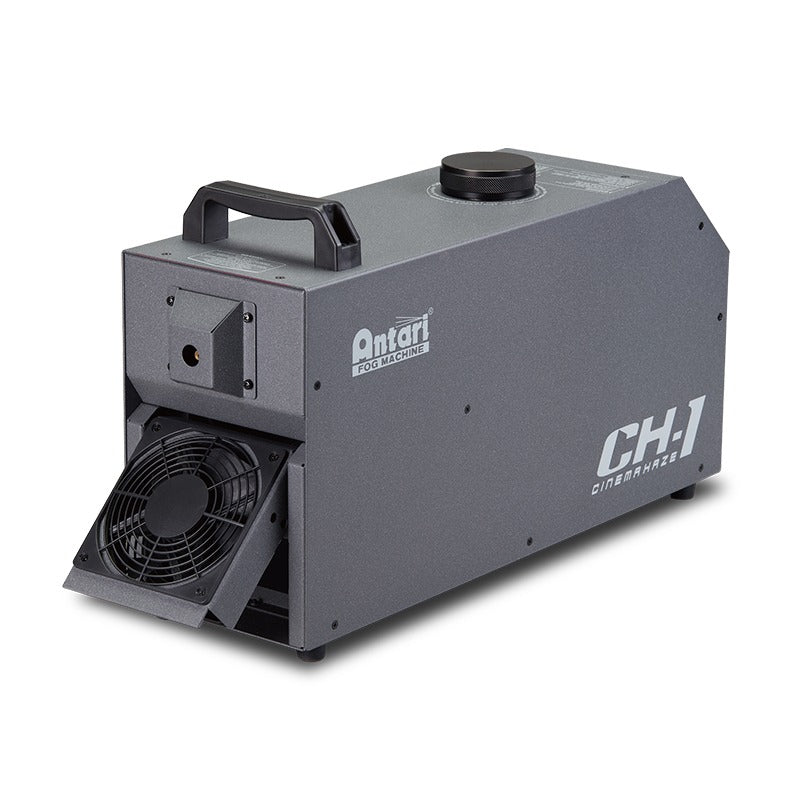

Antari CH-1 - CO2 Haze Machine

Name: Antari CH-1 - CO2 Haze Machine
Brand: Antari
SKU: CH-1U

Brand: Antari

Categories: Haze

SKU: CH-1U

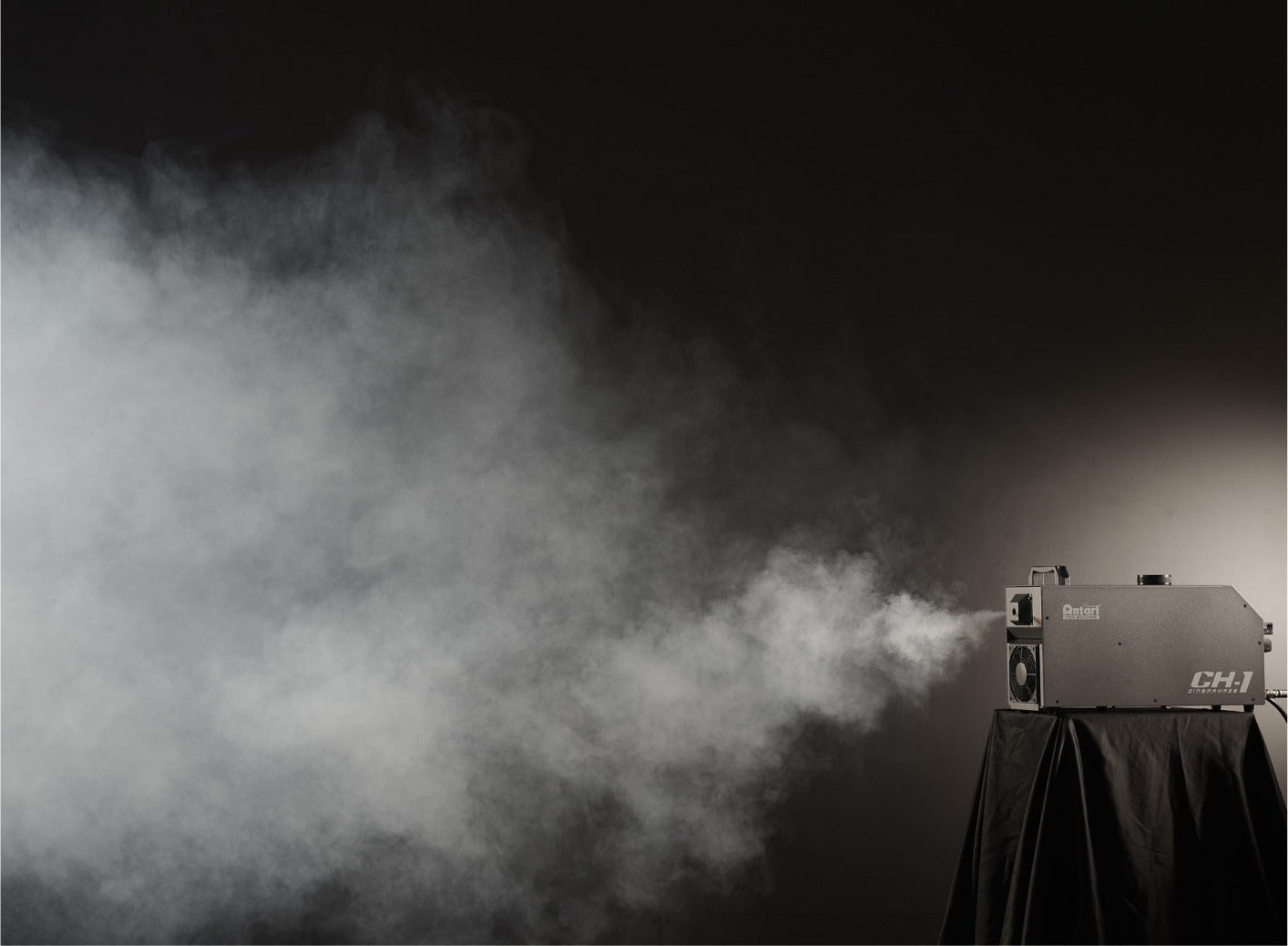

The CO2 model produces high volume of fine haze smoothly with little working sound , Comes with an adjustable fan to bring the haze in different angle. Equipped with color touch panel for intuitive operation , Connected with a CO2 gas bottle, mixing the gas and liquid together to provide a longer hanging time.

Product variants

Available

Pairs well with

Technical Specifications

Description

Key Features:

Long hanging time
Little working sound
Low fluid consumption
Ease operation by using color touch panel
Adjustable fan

Specifications:

Input voltage: AC 100-240V, 50/60HZ 6A
Rated power: 120V 600W, 240V 1250W
Warm-up time: 8 minutes (approx)
Fluid consumption: 2 ml/min @40 psi / 2.76 bar
Fluid tank capacity: 2.5 Liters (0.66 gallon)
Compatible fluid: Antari CHL-2 Haze Fluid
Gas type: CO2 , N2
Gas pressure range: 50 – 60psi / 3.4 bar – 4.1bar
Gas consumption: 0.36 Kg / hr @ 40 psi, 0.18 Kg / hr @ 20psi
Control interface:TFT LCD Touch Screen
Ambient temp.range: 0°C – 40°C (32°F – 104°F)
Control: Manual , Timer , DMX 512, Wireless DMX (Optional)
DMX channels: 1 / 3 / 5 Channels
Connection: Neutirk TRUE 1 Connector (Power), XLR 3-pin and 5-pin (DMX), 9/16 -18 R.H (Gas inlet)
Optional Accessories: W-DMX-PCBR, FCH-1 Flight Case
Dimension:L 579 W 164 H 311 mm, (L 22.79 W 6.46 H 12.25 inch)
Weight:17 kg (37.48 lbs)

Downloads

CH-1-User-Manual.pdf
