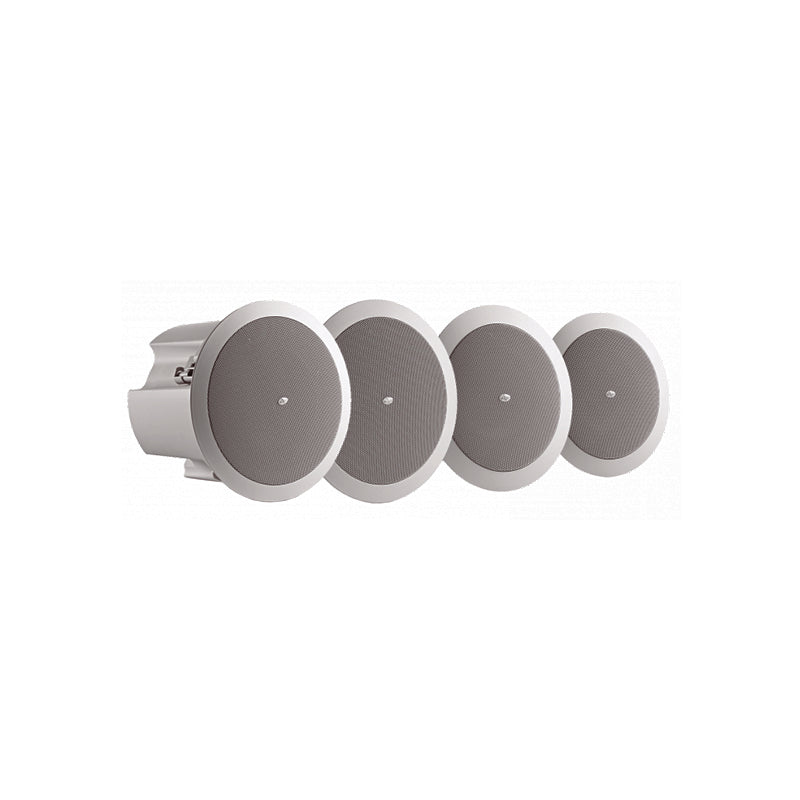

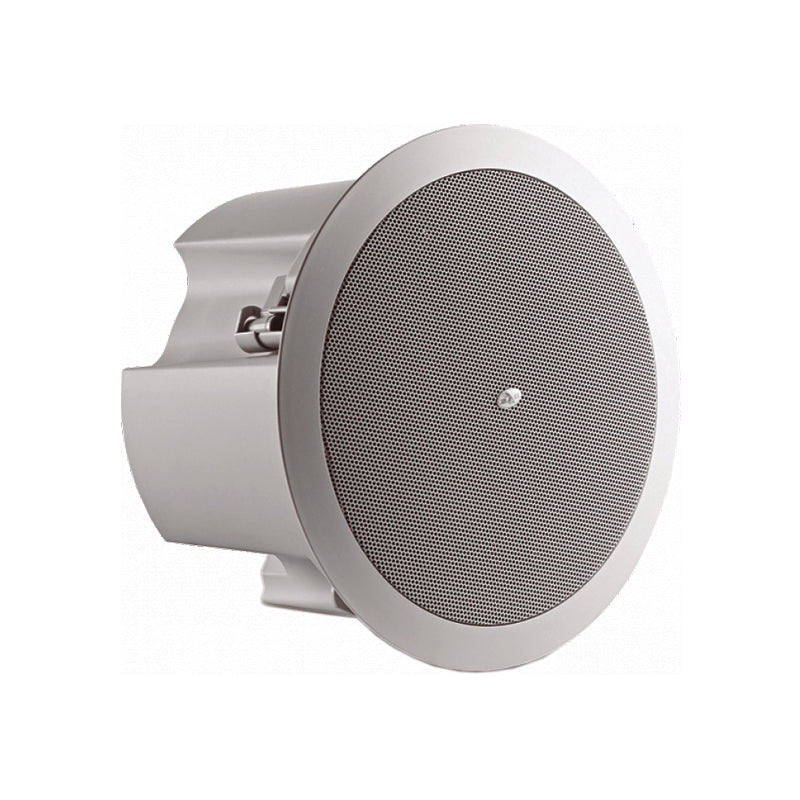

The CL-6TB is a 2-way passive full-range ceiling loudspeaker incorporating a 6.5″ cone low frequency transducer and a ferrofluid cooled soft dome high frequency unit with integral diffraction-ring. The unit is equipped with a multi-tap line transformer and back can. The system´s low frequency driver is mounted on a plastic support with mounting tabs for fixing to ceiling surfaces. The front of the system is covered with a perforated metal grille.

Features

Performance
Frequency Range (-10 dB): 70 Hz – 20 kHz
Horizontal Coverage (-6 dB): 95º
Nominal Impedance: 8 ohms
Transformer Taps 70 V: Tap0, Low Z. Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
Transformer Taps 100 V: Tap0, Low Z. Tap1, 5 W. Tap2, 10 W. Tap3 15 W.
On-axis Sensitivity 1W/1 m: 90 dB SPL
Recommended Amplifier: IA-402
IA-404
Connectors
Audio Input Connector: Spring Terminals
Audio Output Connector: Spring Terminals
Enclosure
Enclosure Construction: Plastic
Enclosure Geometry: Round
Color: White
Net Weight: 2,3 kg ( 5,1 lb )
Shipping
Carton Dimensions ( H x W x D ): 310 x 300 x 450 mm
12,2 x 11,8 x 17,7 in
Shipping Weight: 2,8 kg ( 6,1 lb )
