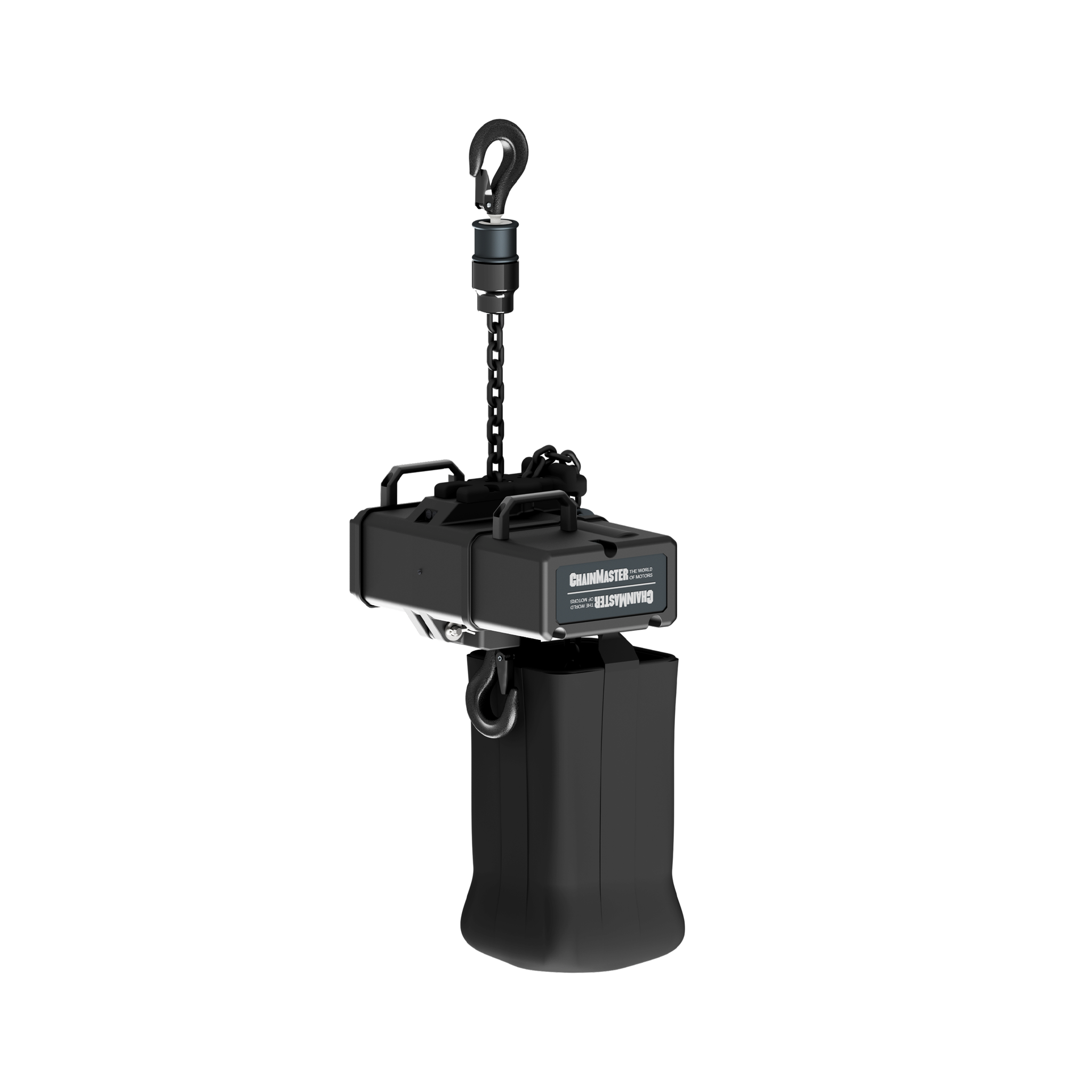

ChainMaster D8Plus electric chain hoists are handmade in Germany and built to the D8Plus standard (VPLT SR2.0). A second brake and C1-level safety features mean loads can be held without additional securing. All models have two maintenance-free DC brakes, a patented friction clutch outside the load path, a 4 m/min lifting speed and a 40% duty cycle, and work in both standard and climbing positions. A Flip-Bag chain bag is included.

Common specifications

• Standard: D8Plus (VPLT SR2.0), safety factor 8:1
• Lifting speed: 4 m/min
• Brakes: 2 maintenance-free DC brakes
• Clutch: patented friction clutch, not in the load path
• Position: climbing and standard
• Protection: IP55 (IP66 optional)
• Duty cycle: 40%
• Included: Flip-Bag chain bag

320 kg - LV, 18.75 m chain, limit switches (CM-960321-18)

• Model: D8Plus ULTRA LV, SK030/10
• Chain: 5.2 x 15 mm black DAT, EN 818-7, 18.75 m
• Control: 24 V AC contactor control
• Limit switches: external, up and down
• Motor: 0.37 kW
• Weight: 21 kg without chain, hook and suspension

500 kg - LV, 12.5 m chain, limit switches (CM-960505-12.5)

• Model: D8Plus ULTRA LV, SK030/76
• Chain: 5.4 x 15 mm black DAT, EN 818-7, 12.5 m
• Control: low voltage, 24 V AC
• Limit switches: 2-channel gear limit switch
• Motor: 0.37 kW
• Weight: 21 kg without chain, hook and suspension

500 kg - DC, 18.75 m chain (CM-960505-18)

• Model: D8Plus ULTRA DC, SK030/76U
• Chain: 5.4 x 15 mm black DAT, EN 818-7, 18.75 m
• Control: direct control
• Motor: 0.37 kW
• Weight: 17 kg without chain, hook and suspension

1000 kg - DC, 25 m chain (CM-961004-25)

• Model: D8Plus ULTRA DC, SK070/76U
• Chain: 7.4 x 21.1 mm black DAT, EN 818-7, 25 m
• Control: direct control
• Motor: 1.1 kW
• Weight: 31 kg without chain, hook and suspension
