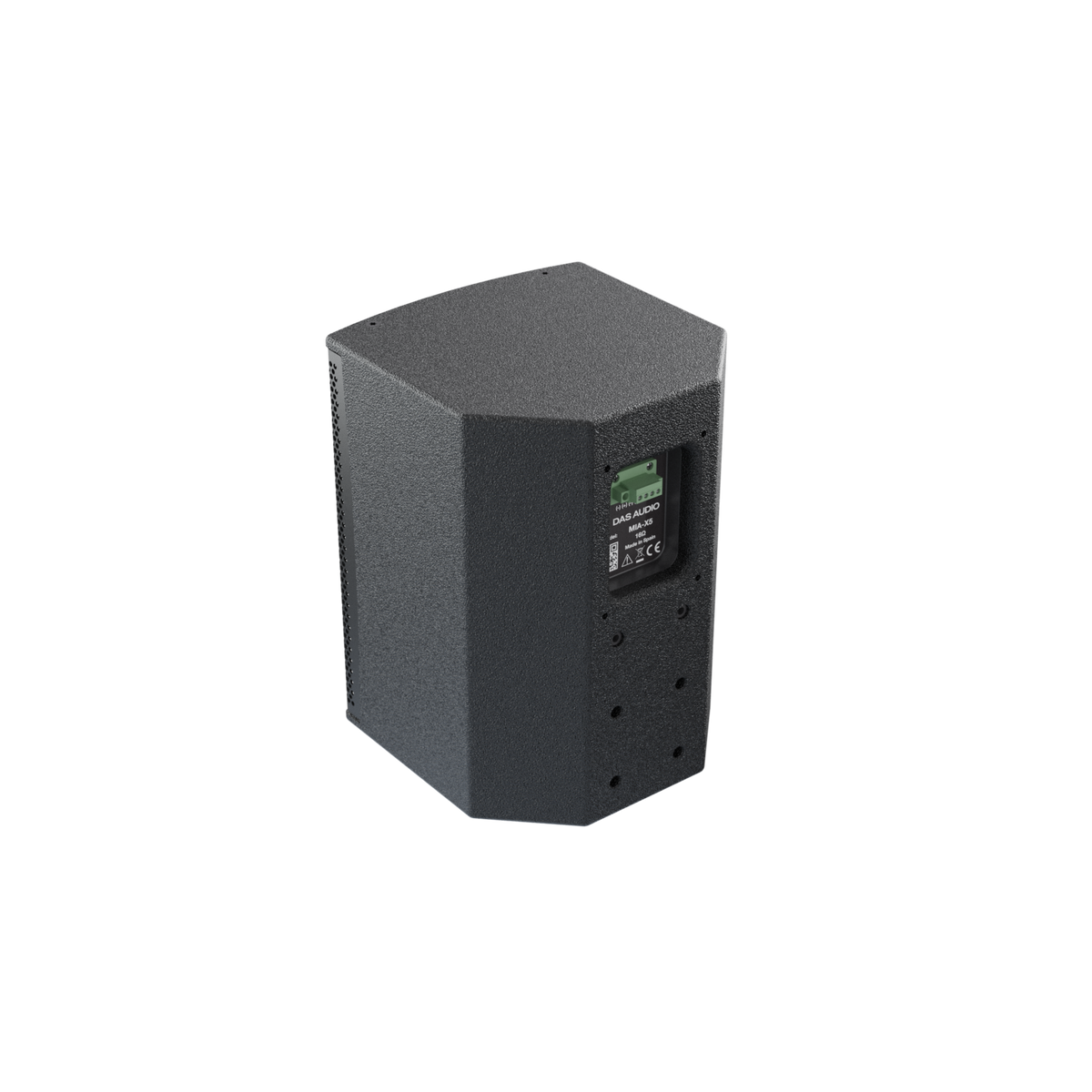

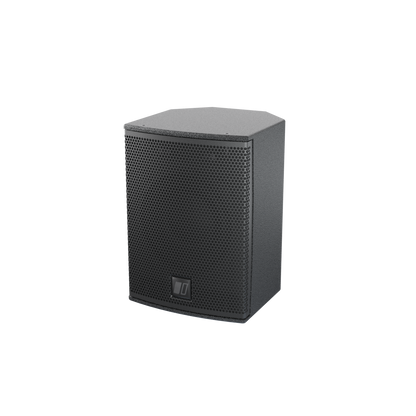

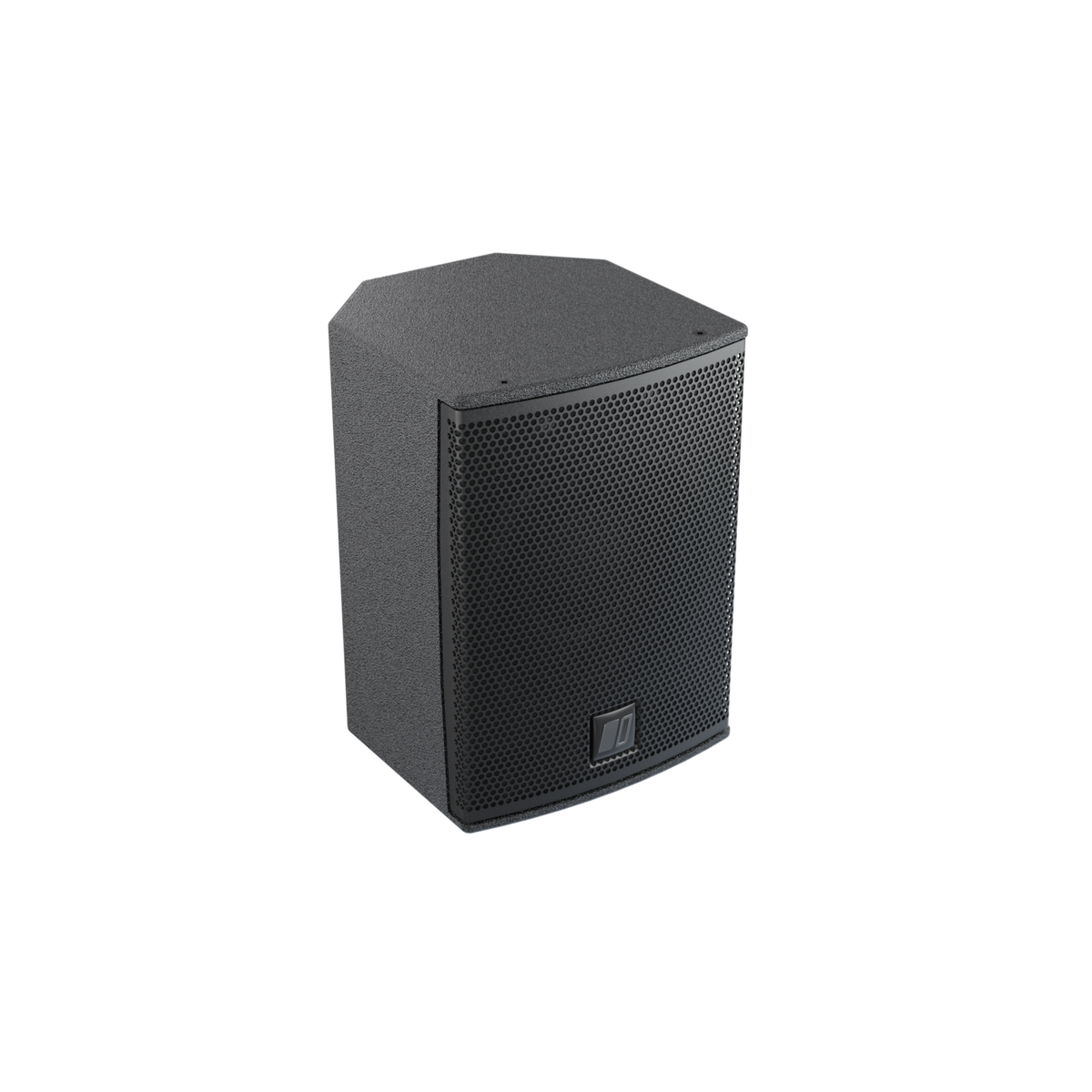

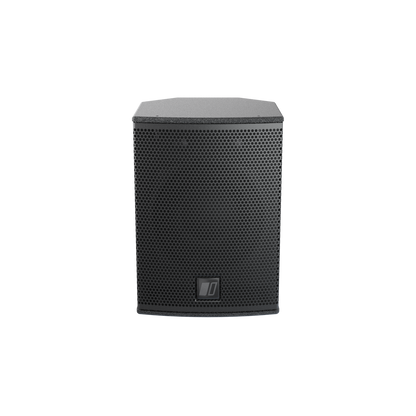

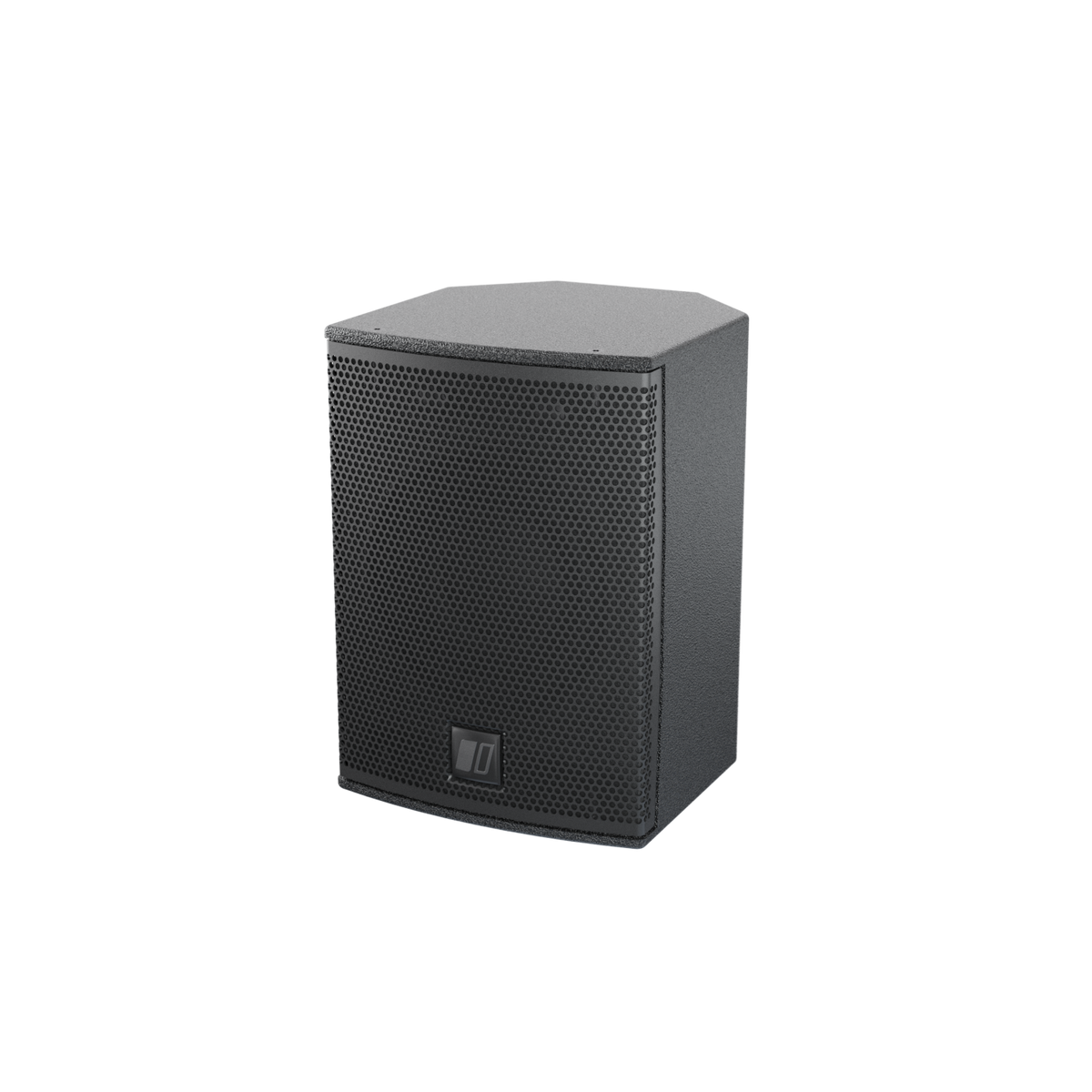

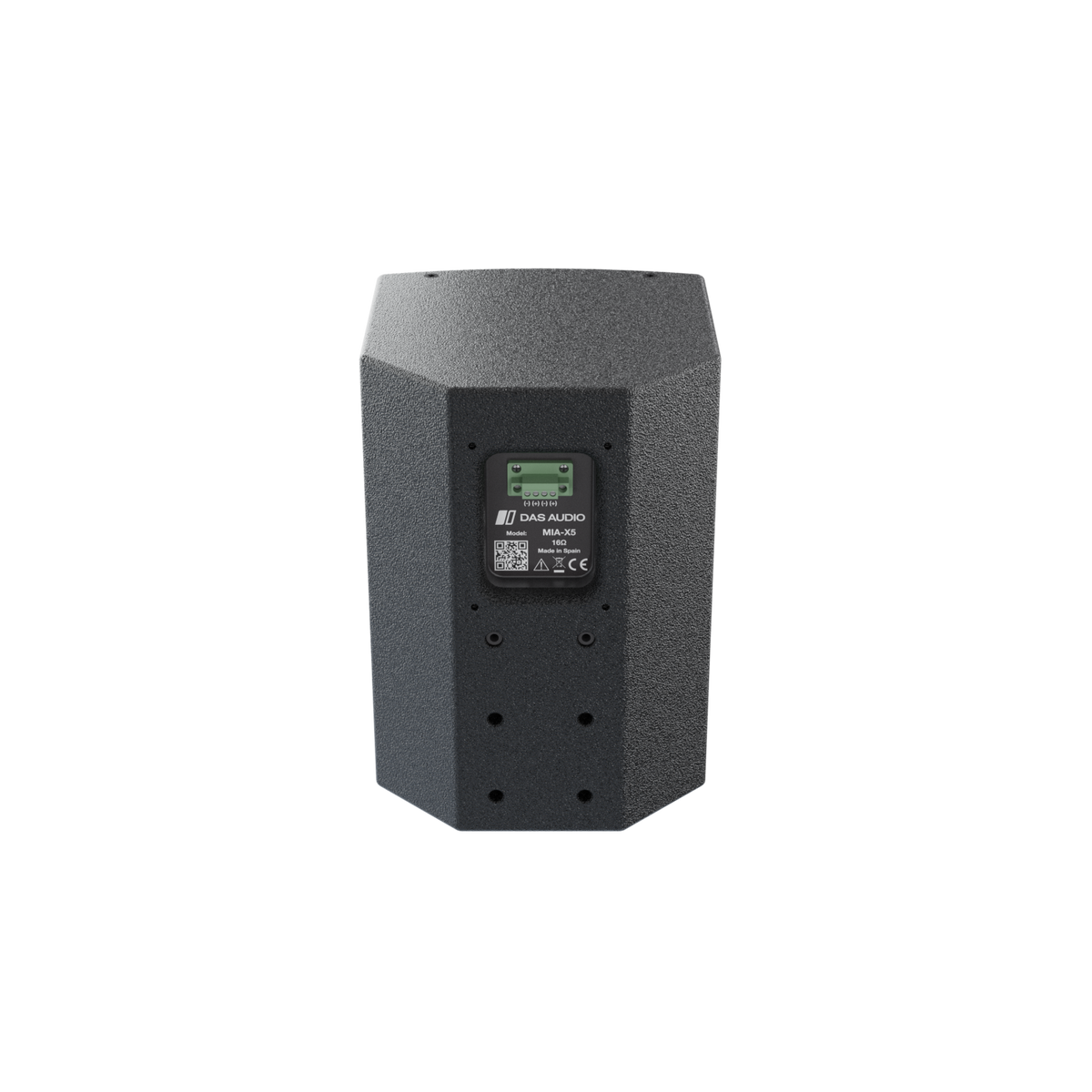

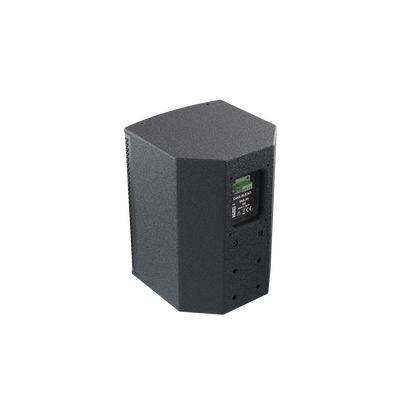

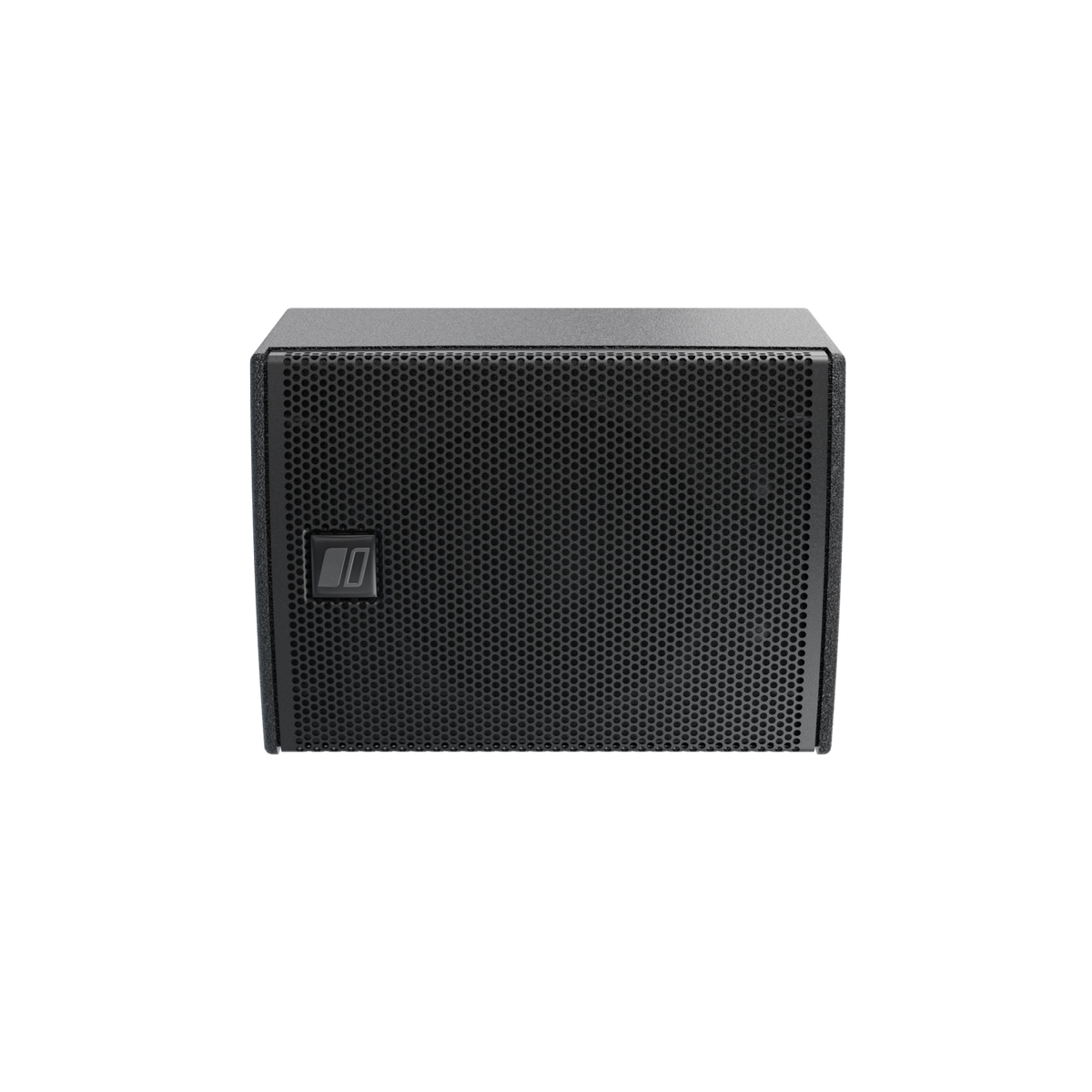

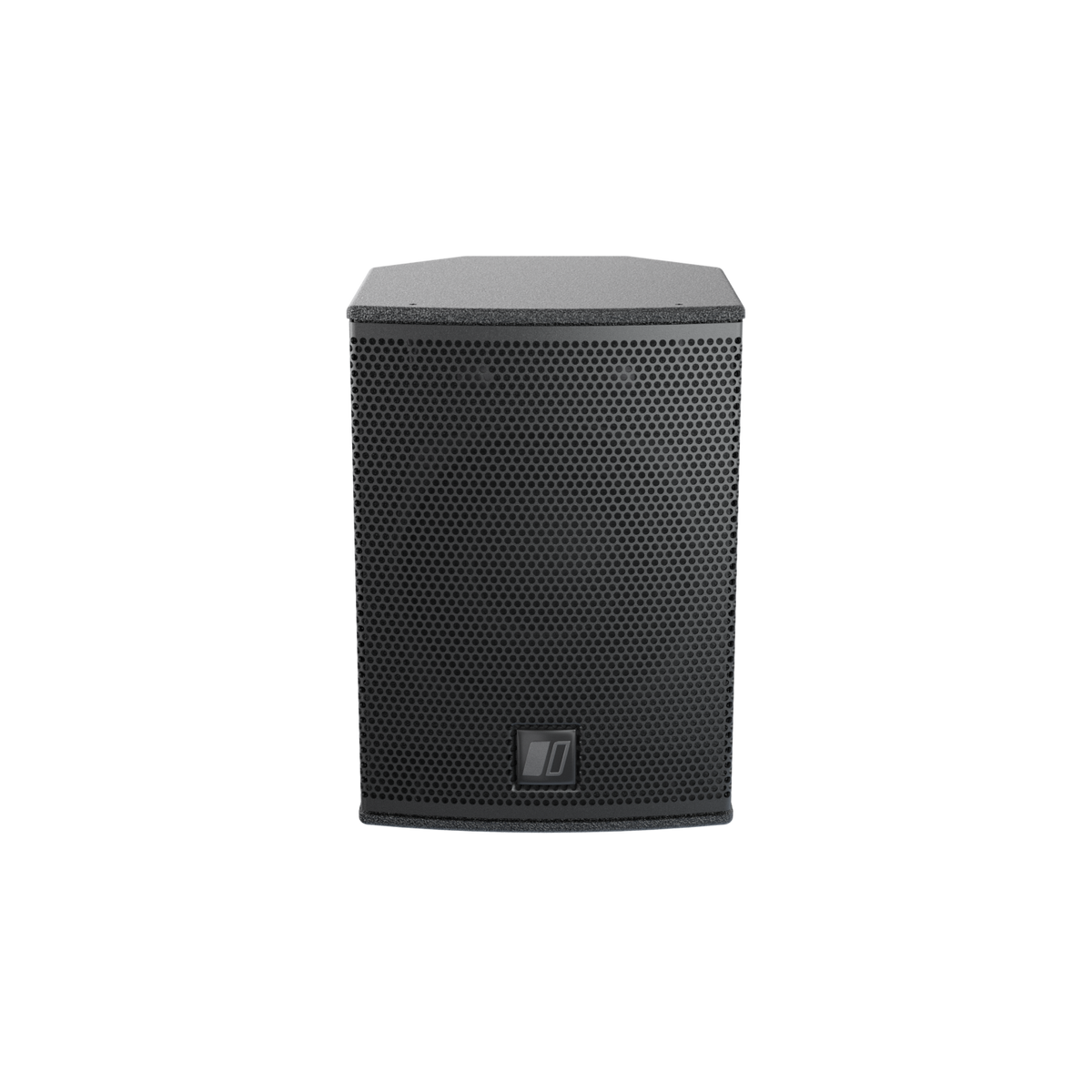

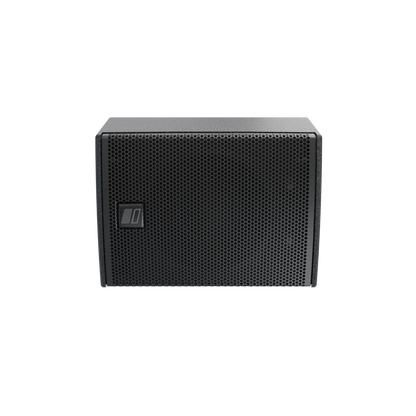

DAS Audio MIA-X5 - Point Source, 2-way passive 5” coaxial, 120º conical coverage

New

DAS Audio MIA-X5 - Point Source, 2-way passive 5” coaxial, 120º conical coverage

Name: DAS Audio MIA-X5 - Point Source, 2-way passive 5” coaxial, 120º conical coverage
Brand: DAS Audio
SKU: MIA-X5

Brand: DAS Audio

Categories: Passive Point-Source Speakers

SKU: MIA-X5

The MIA-X5 is DAS Audio's compact 5" coaxial point source system, delivering 120-degree conical coverage from 80 Hz to 20 kHz at up to 124 dB SPL. With 16-ohm impedance allowing up to 8 units per amplifier channel, it's built for discreet, multi-location installed sound at just 4.3 kg.

Product variants

Pairs well with

DAS Audio MIA-X5 - Point Source, 2-way passive 5” coaxial, 120º conical coverage

Technical Specifications

Description

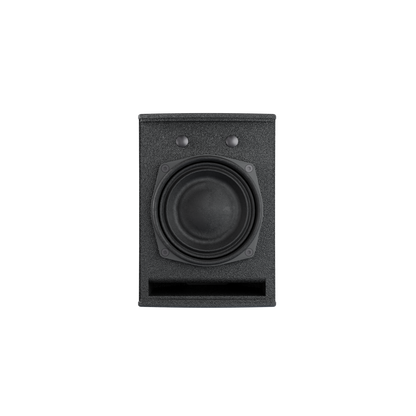

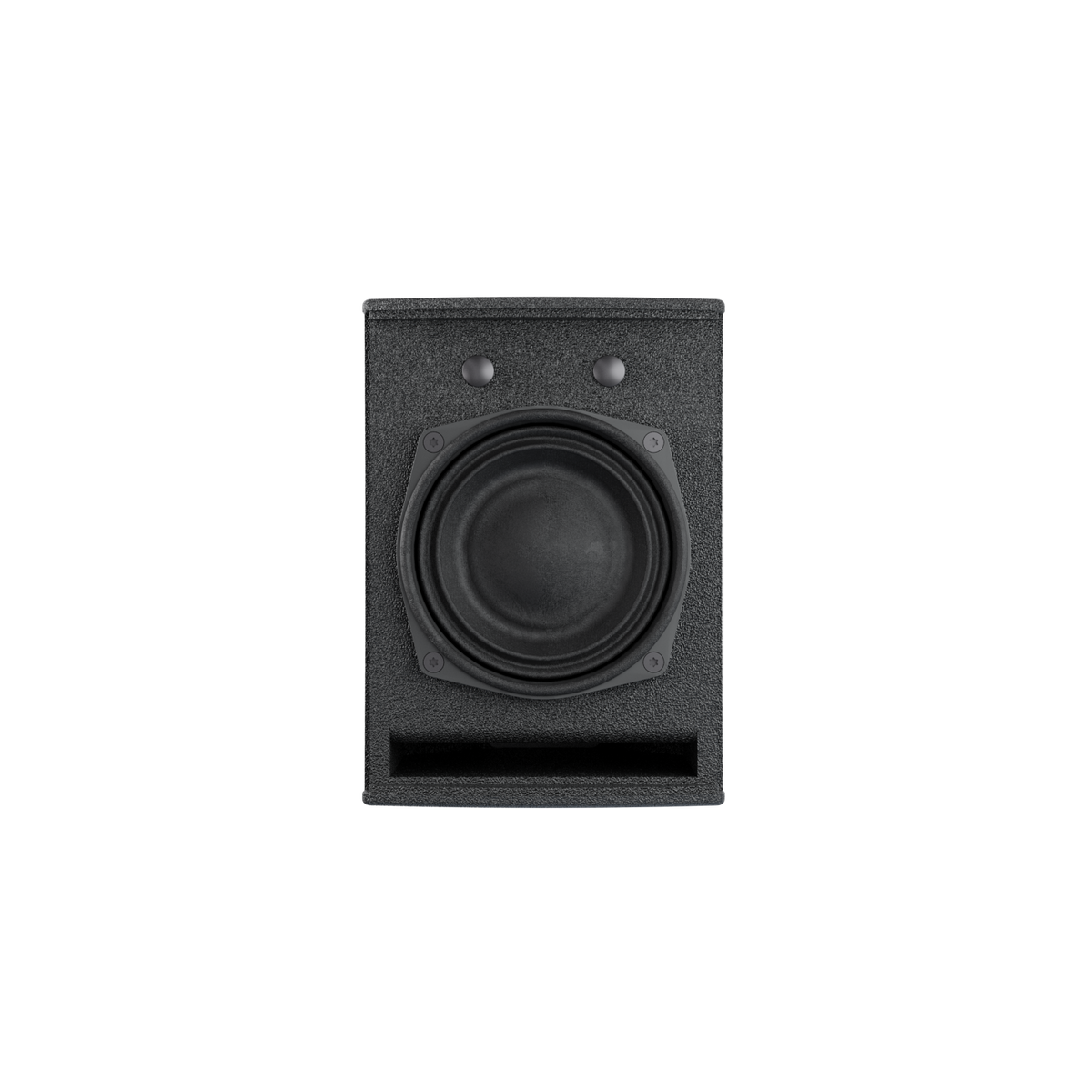

Components:

5CX16 coaxial transducer

Frequency Range (-10 dB):

80 Hz – 20 kHz

Conical Coverage:

120°

Maximum SPL:

124 dB

Maximum Linear SPL:

120 dB

On-axis Sensitivity (1W/1m):

90 dB SPL

Nominal Impedance:

16 ohms

RMS Power Handling:

120 W

Peak Power Handling:

480 W

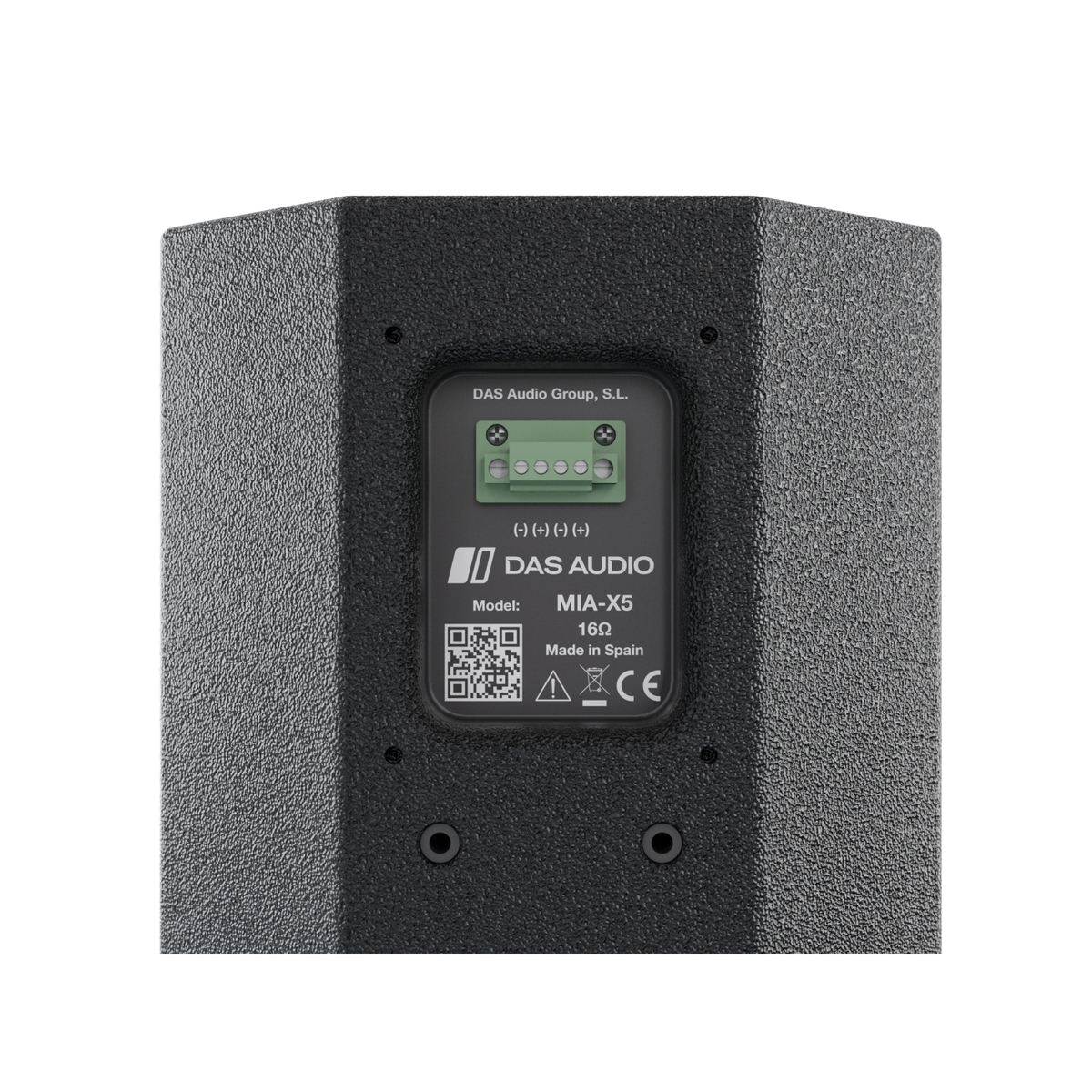

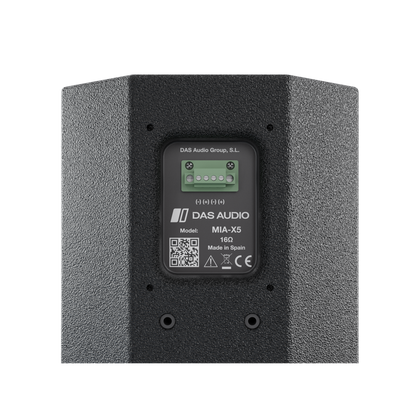

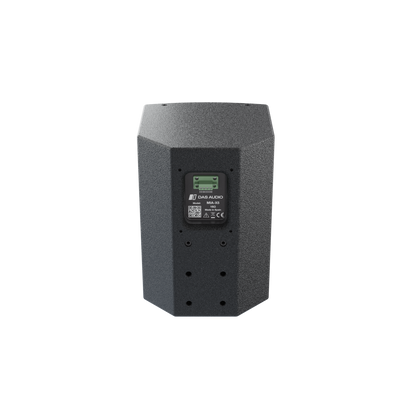

Audio Input Connector:

4-way Phoenix 3.8 mm

Enclosure Construction:

Birch Plywood, trapezoidal, ISO-flex paint, black

Rigging:

M5 Thread Inserts

Dimensions H x W x D (mm):

230 x 165 x 170

Net Weight (kg):

Downloads

Das_Audio_MIA-X5_Datasheet.pdf
