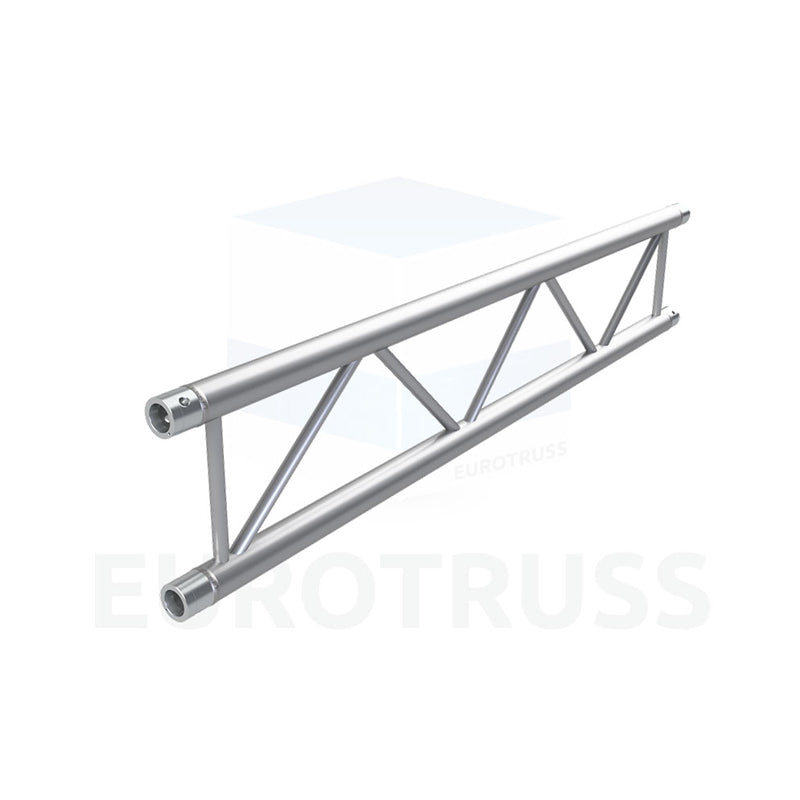

FD32 straight elementsare usedas span exposed to bending stress, cantilevered up to 4m. They may also be used for decorative purpose.

The FD32 Serie is suitable for hanging rigs in horizontal and vertical way. Made with the fast connection system and tested according to the Din 4113/VBG 70 specifications by the TuV.

Product features

• FD32
• Height:290
• Width:50
• Weight:~3kg/mtr
• Main tube:50x2 mm
• Braces:20x2 mm
• Material:AlMgSi 1 F31/EN AW 6082 T6
• Connection System:Eurotruss FD
• Tolerance free connection with conical connector
• Compatible with FD34
• Optimum manufacturing quality
• TuV Tested
• Available in any non-standard length and shape
