Key Features

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI up to a distance of 100m over single CAT cable
• Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4,and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Features 1 x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional RS-232 pass-through
• Bi-directional IR from all input and output locations
• Bi-directional PoC (Power over Cable) to power extenders from either Blustream matrix products or transmitterend
• HDCP 2.2 support

Specifications

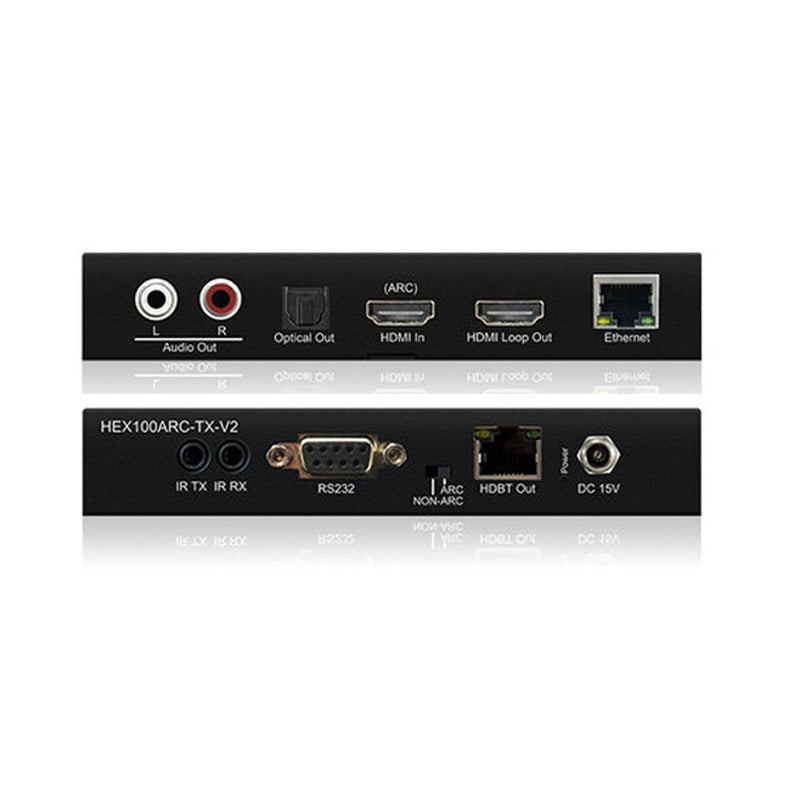

• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female
• Audio Output Connectors: 2 x RCA (L/R), 1x Optical (SPDIF)
• Ethernet Port: 1 x RJ45 connector
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output orts: 1 x 3.5mm mono jack
• 2 x Mounting Bracket
• Ind. Unit Dimensions (W x D x H): 143mm x 135mm x 25mm (TX), without connections
• Ind. Unit Dimensions (W x D x H): 143mm x 140mm x 25mm (TX), with connections
• Box Dimensions (W x D x H): 340mm x 285mm x 60mm
• Shipping Weight (Kit): 0.9kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 1 x 15V/2A DC, screw type connector

Box Contents

• 1 x HEX100ARC-TX-V2
• 1 x Mounting Kit
• 1 x User Manual
