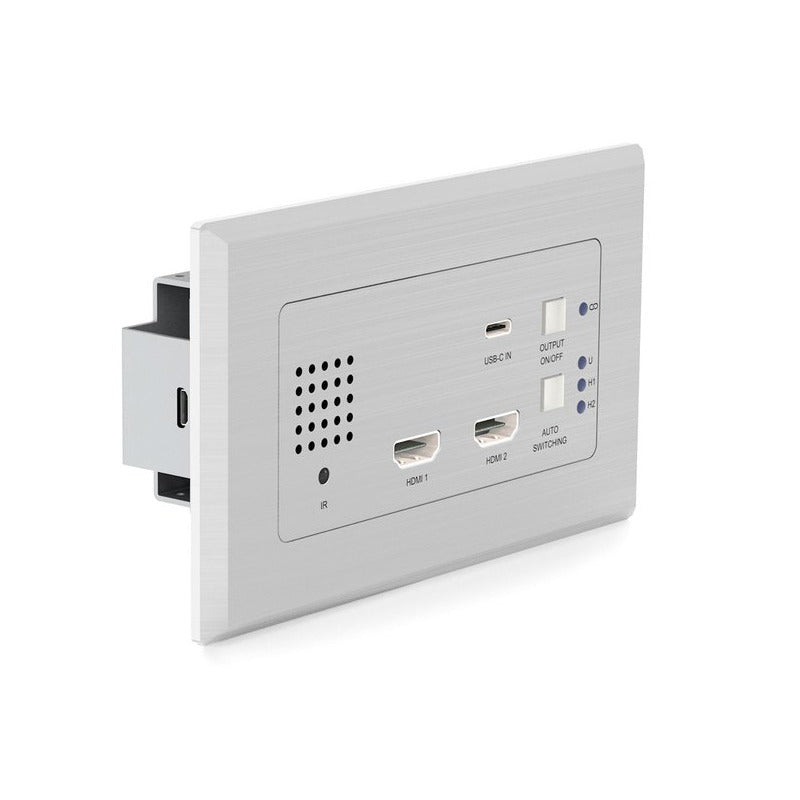

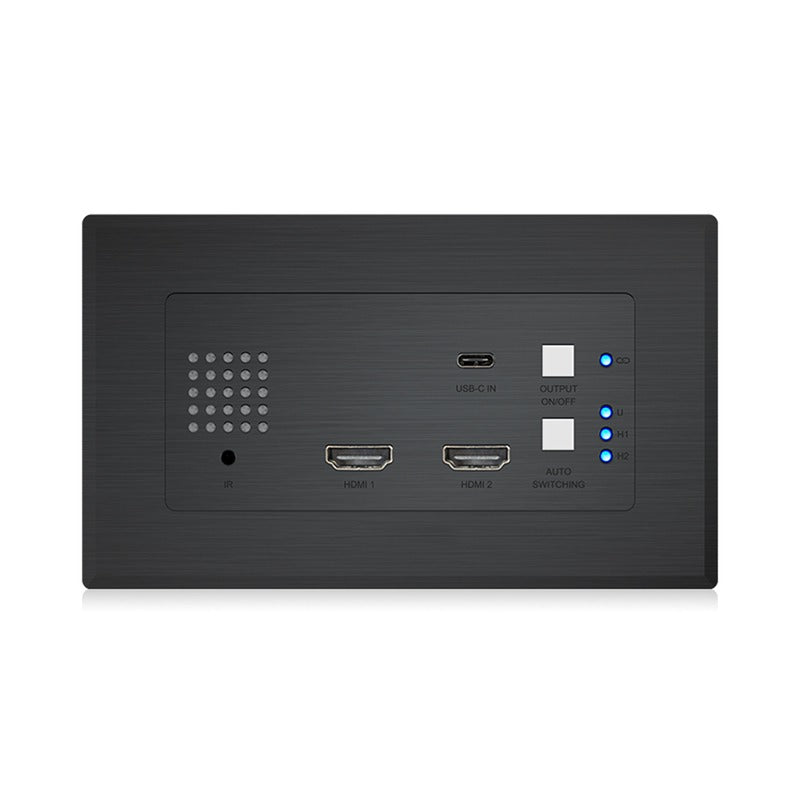

HEX31WP-TX - HDMI/USB-C Wall Plate HDBaseT™ Transmitter

HEX31WP-TX - HDMI/USB-C Wall Plate HDBaseT™ Transmitter

Dhs.2,672.38

Categories: HDBaseT™ Matrix, Video Signal Distribution

SKU: HEX31WPB-TX

The HEX31WP HDMI/USB-C wall plate HDBaseT™ transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m 1080p (40m 4K). The HEX31WP-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers).
The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ receiver solutions, be installed in both UK and European backboxes and can be powered locally or from compatible Blustream HDBaseT™ products.

Color: Black

Black
White

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

HEX31WP-TX - HDMI/USB-C Wall Plate HDBaseT™ Transmitter

Black

Dhs.2,672.38

Technical Specifications

Description

Key Features

Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Input selection via front panel, IR or RS-232
Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
Bi-directional RS-232 pass through
Supports IR pass-through to HDBaseT™ device
Compatible with all Blustream HDBaseT™ receiver / matrix products *
Magnetic faceplate surround allowing both UK & EU back box compatibility
HDCP 2.2 support

* Technical performance is subject to the features supported on the connected HDBaseT™ device

Specifications

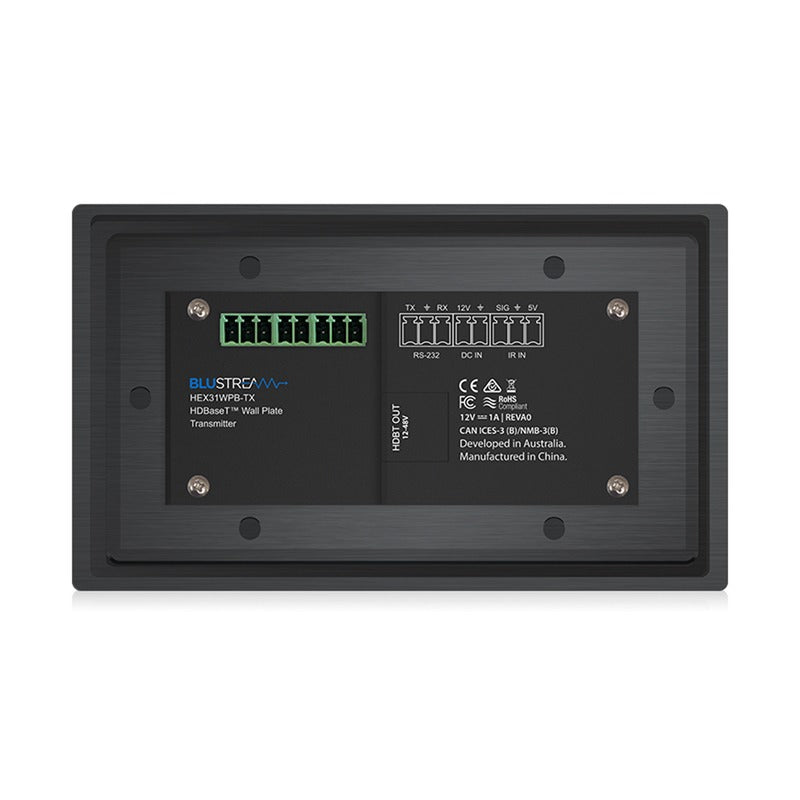

Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
Video Output Connectors: 1 x HDBaseT™ RJ45 connector
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
IR Input Port: 1 x 3-Pin Phoenix connector
Product Upgrade: 1 x Micro USB female
Local Power Input: 1 x 2-Pin Phoenix connector
Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
Casing Dimensions (W x H x D): 146mm x 86mm x 44mm (with faceplate)
Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
Backbox Housed Unit Dimensions (W x H x D): 109mm x 49mm x 35mm (part of unit housed inside backbox)
Backbox Mounting Depth: 40mm (minimum) – backbox not supplied
Shipping Weight: 2.8kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 12V/1A DC

Box Contents

1 x HEX31WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x RS-232 Control Cable
1 x Quick Reference Guide
