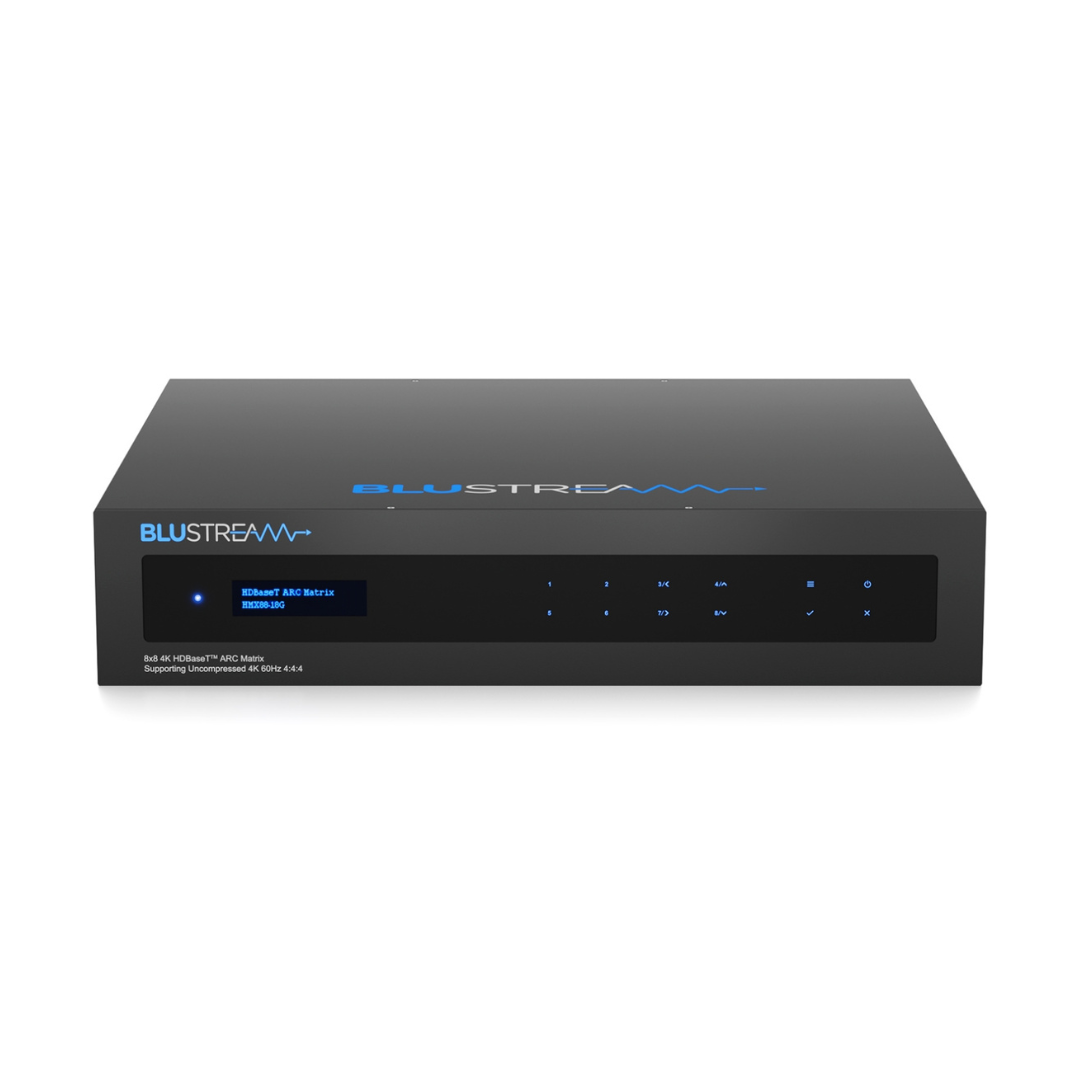

HMX88-18G - 8x8 HDBaseT3™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4

Name: HMX88-18G - 8x8 HDBaseT3™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4
Brand: Blustream
SKU: HMX88-18G
Price: 15108.59 AED
Availability: OutOfStock

Brand: Blustream

Categories: Video Signal Distribution

SKU: HMX88-18G

The HMX88-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT3™ technology to deliver HDMI, Bi-directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.

The HMX88-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on outputs 1 & 2, video smart scaling on HDBaseT outputs, and an independent 26x8 audio matrix and ARC. The HMX88-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and Ethernet pass through to enable seamless 3rd party control integration.

Product variants

Need Help:

Pairs well with

Technical Specifications

Description

Key Features:

• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs• Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*• Supports distribution of the latest HDR resolutions including HDR10/10+• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:- 8 x audio breakout from HDMI source inputs- 8 x audio breakout from zone outputs- 8 x audio return from zone outputs*- 1 x Optical and 1x Analogue audio input• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)• Web interface module for control and configuration of the Matrix• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers• Advanced EDID management and HDCP 2.3 compliant

* Transmission distance is subject to video format, cable type and installation environment.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

Specifications:

• Video Input Connectors: 8 x HDMI Type A, 19-pin, female• Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)• RS-232 Serial Port: 9 x 3-pin phoenix connector• TCP/IP Control Port: 1 x RJ45, female• Ethernet Passthrough Port: 1 x RJ45, female• IR Input Ports: 10 x 3.5mm stereo jack• IR Output Ports: 9 x 3.5mm mono jack• Product Upgrade Port: 1 x Micro USB, female• Rack Mountable: 2U rack height, rack ears included• Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)• Shipping Weight: 10.5kg• Operating Temperature: 23°F to 131°F (-5°C to +55°C)• Storage Temperature: -13°F to 158°F (-25°C to +70°C)• Power Supply: Internal 100-240V AC• HDBaseT Power Output: 24V DC 0.75A per port
