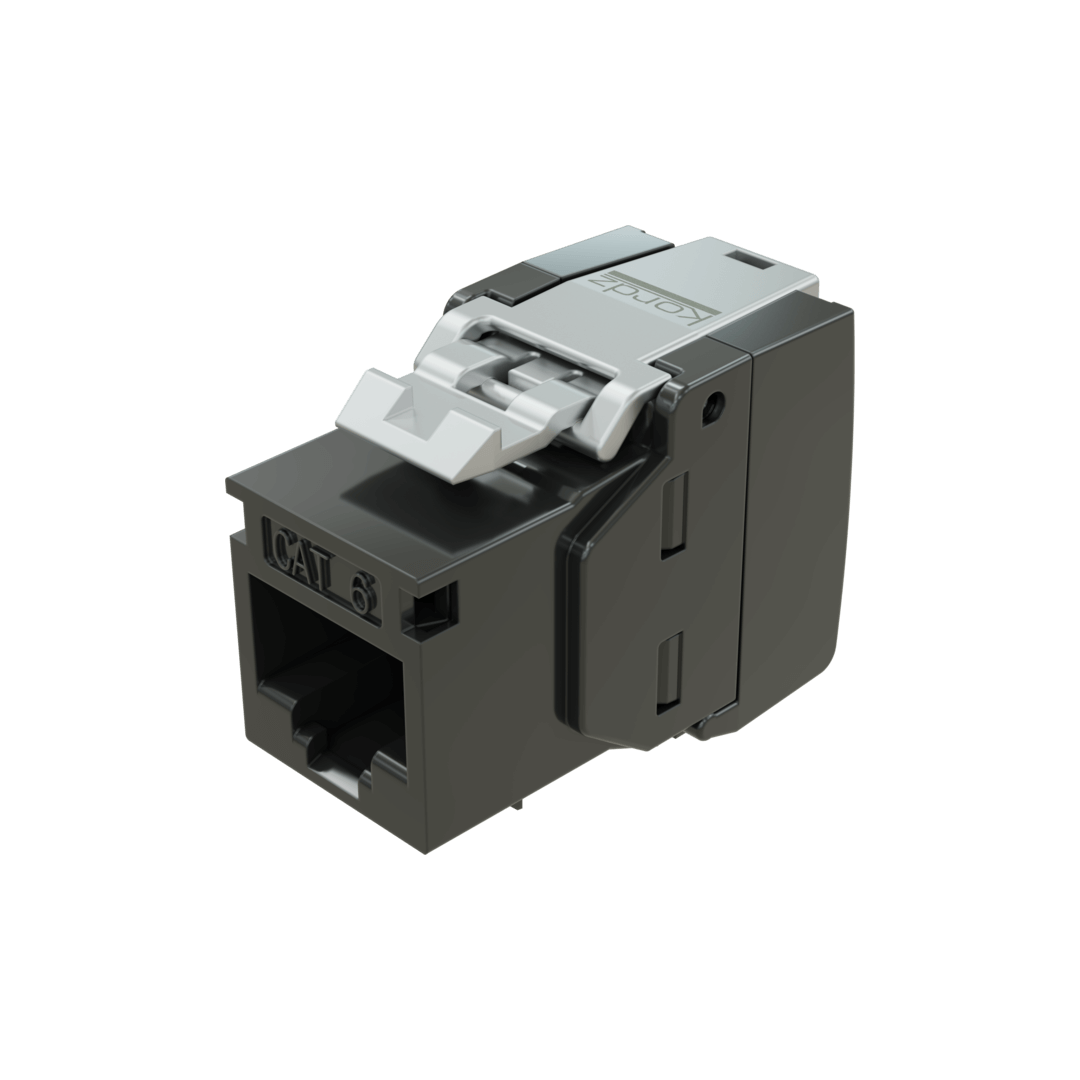

Kordz - PRO Keystone RJ45 Socket

Name: Kordz - PRO Keystone RJ45 Socket
Brand: Kordz
SKU: P1R45M-C6AS-BK
Price: 66.33 AED
Availability: InStock

Brand: Kordz

Categories: Electrical Connectors

SKU: P1R45M-C6AS-BK

Keystone RJ45 Sockets perfectly complement Kordz ONE Series Bulk Category Cabling and give the professional integrator total confidence to deliver an end-to-end cabling solution. Featuring an ABS clamshell with a metal latching mechanism, Keystone RJ45 Sockets are very easy to fit. Match them with Kordz PRO Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Product variants

Need Help:

Pairs well with

Kordz - PRO Keystone RJ45 Socket

Dhs.66.33

Technical Specifications

Description

Connector Part No.: T2R45S-C6XU-XXGuaranteed Performance Category: Category 6Applicable Standards: ANSI/TIA-568-C.2Housing material: PolycarbonateFlammability Rating: UL 94 V-0Contact Material: CopperContact Plating IDC: Phospher bronze, Tin PlatedContact Plating RJ45: Gold Plating 50µ” [1.27µm]Housing Colour: White / BlackShielding Type: UnshieldedOperating Temperature: -40° to 66°C

Voltage/Current rating UL Applications: 125 Volts AC / 1.5 AmpsDielectric Withstanding Voltage: 1500 Volts DC / AC PeakContact Resistance: ≤ 20mΩInsulation Resistance: ≥ 500MΩRJ45 Cycle: 750 timesInsertion IDC: 20 timesWire Gauge min/max: min: 26AWG / max: 23AWGConductor Diameter: max:8.5mm ØCable Jacket Diameter max: 6.5mm Ø
