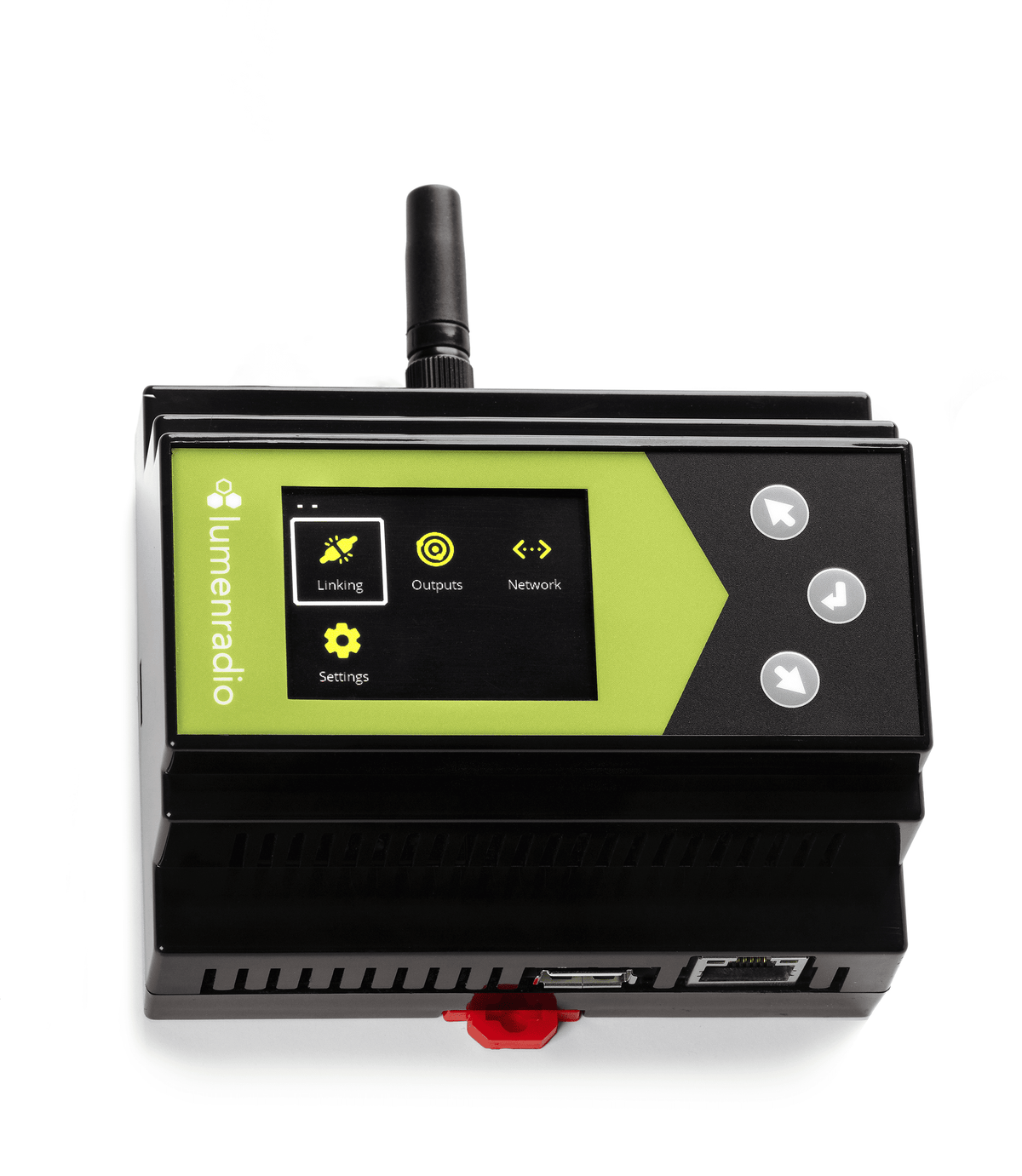

Galileo MAX is LumenRadio's multiple-universe wireless DMX transmitter for architectural lighting. Built on CRMX technology, it replaces DMX cabling over a wide area, with a radio range of hundreds of metres, so a single transmitter can feed an unlimited number of CRMX receivers, whether fixtures from LumenRadio's OEM partners or LumenRadio's own products.

It mounts on a DIN rail indoors or outdoors, takes Art-Net or streaming ACN over Ethernet, can be powered over PoE, and can be set up, monitored and status-checked remotely. A fixed 5 ms latency, 128-bit encryption and DMX512-A with RDM support keep large installations reliable and easy to manage.

Technical Specifications:

POWER
• Power supply: 12–24 VDC ±10%
• PoE: IEEE 802.3af

RADIO
• Supported RF protocols: CRMX, CRMX2, W-DMX G3 & G4S
• Frequency range: 2402–2480 MHz, 5170–5330 MHz, 5490–5590 MHz (ISM bands)
• Max. RF output power: 100 mW at 2.4 GHz (280 mW in the US), 50 mW at 5 GHz
• Fixed latency: 5 ms
• Encryption: 128-bit

PROTOCOLS
• Art-Net, streaming ACN, DMX512-A, RDM

CONNECTIONS
• Ethernet: 10/100 Mbps via RJ45
• USB 2.0 (software updates only)

ENVIRONMENT
• Humidity: 0–90% non-condensing
• Suitable for indoor and outdoor installation
