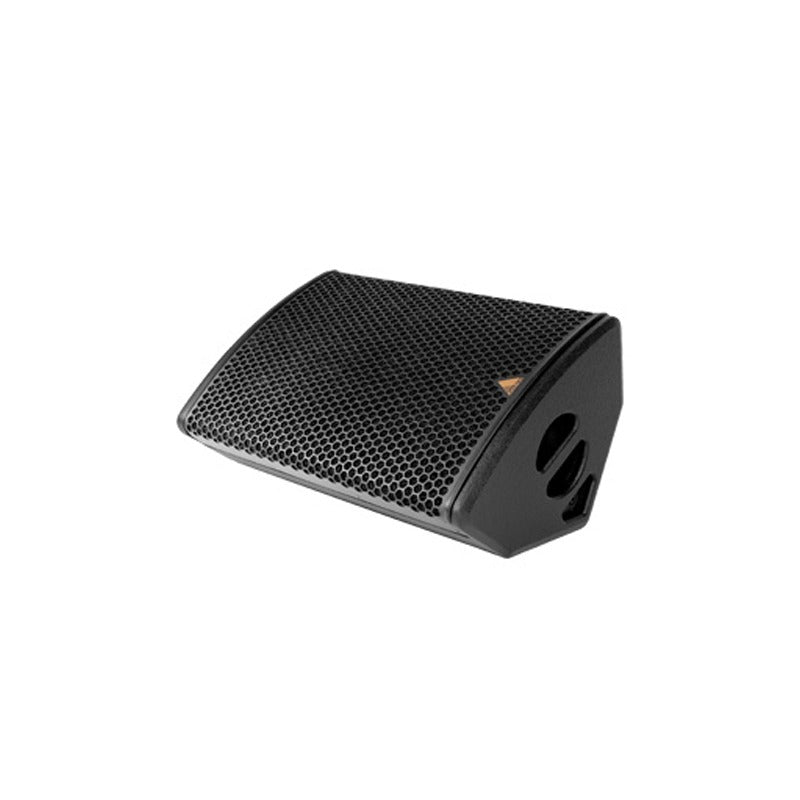

Adamson’s first lightweight, long-excursion 12” Kevlar Neodymium driver supplies exceptional power handling with outstanding mid-frequency response, ideal for demanding vocal performances. Adamson’s Advanced Cone Architecture dramatically increases the linearized mid-range response by reducing the radial and chaotic modes in the ND12-L’s passband. The Kevlar cone design also enforces extreme durability in wet conditions making the M12 an ideal solution for outdoor events.

The M12 is available in Active (Bi-amped), or Active / Passive switchable configurations.

Specifications:

• Frequency Range (+/-3 dB): 60 Hz - 18 kHz
• Nominal Directivity (-6 dB): H x V 65° x 65°
• Maximum Peak SPL**: 136.9 dB Active, 136.7 dB Passive
• Components LF: 12" ND12-L Kevlar Neodymium Mid-Bass Driver
• Components HF: B&C DE920TN 3" Diaphragm / 1.4" Exit Compression Driver
• Nominal Impedance LF: 8 Ω
• Nominal Impedance HF: 8 Ω
• Nominal Impedance Passive: 8 Ω
• Power Handling (AES / Peak) LF: 500 / 2000 W
• Power Handling (AES / Peak) HF: 110 / 440 W
• Power Handling (AES / Peak) Passive: 610 / 2440 W
• Connection: 4x Speakon™ NL4
• Height Front (mm / in): 343 / 13.5
• Width (mm / in): 638 / 25.1
• Depth (mm / in): 401 / 15.8
• Weight (kg / lbs): 19.3 / 42.5
• Supported Processing: Lake, XTA**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
