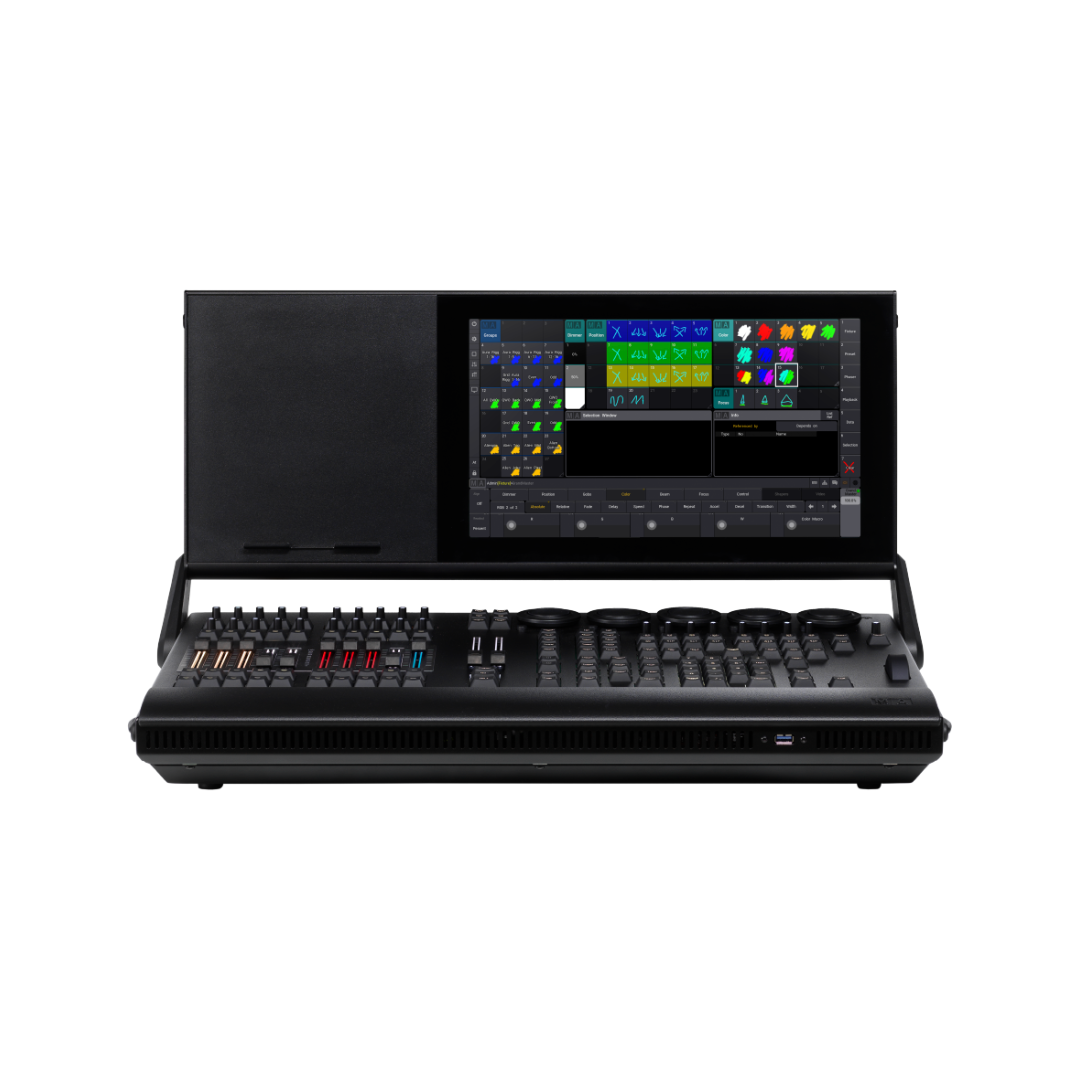

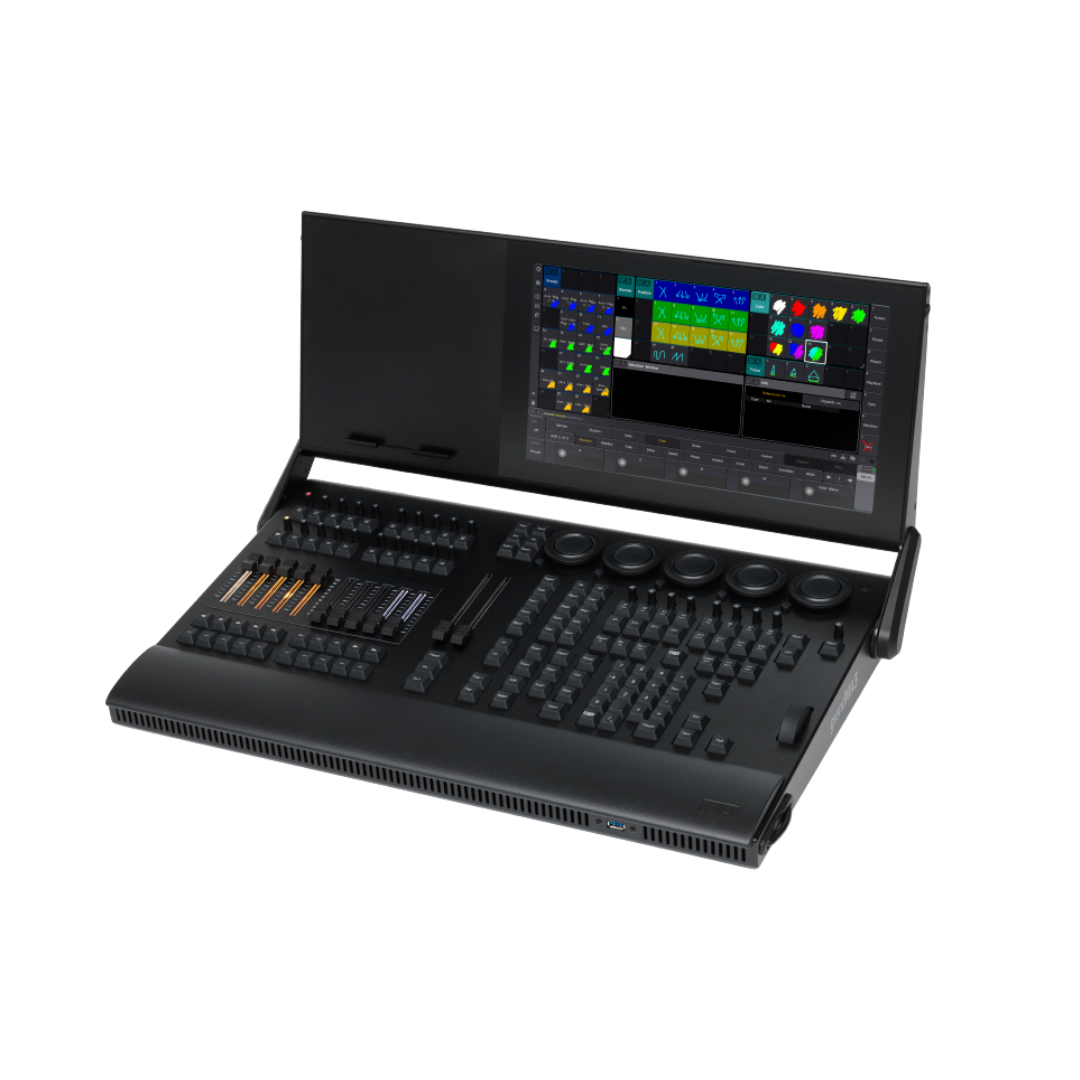

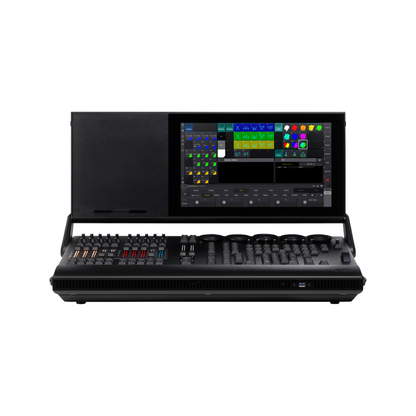

The grandMA3 compact boasts a large multi-touch screen, 5 dual encoders, and a comprehensive command area. With 40 physical playbacks, 16 assignable x-keys, and a dedicated master area, it offers ample control options.  The console supports up to 8,192 control parameters standard, expandable to 250,000 with additional processing units. Compatible with both grandMA2 and grandMA3 software, it features a user-friendly interface with customizable dual encoders and long-life motorized faders with color-changing light pipes and rotary RGB backlit encoders

Features

• Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
• 6 DMX outputs, 1 DMX input
• 2 internal foldable monitor multi-touch screens
• 1 external multi-touch screen can be connected
• 39 rotary RGB backlit encoder
• 5 dual encoders
• 15 backlit motorized 60 mm faders
• 60 separate playbacks
• 16 assignable x-keys
• 3 etherCON connectors, 5 USB connectors
• 2 backlit motorized A/B faders 100 mm
• Individually backlit and dimmable silent (clickless) keys

Technical Specifications

PARAMETERS

• 8192 (HTP/LTP)

PARAMETERS MODE2

• 4096 (HTP/LTP)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 250 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

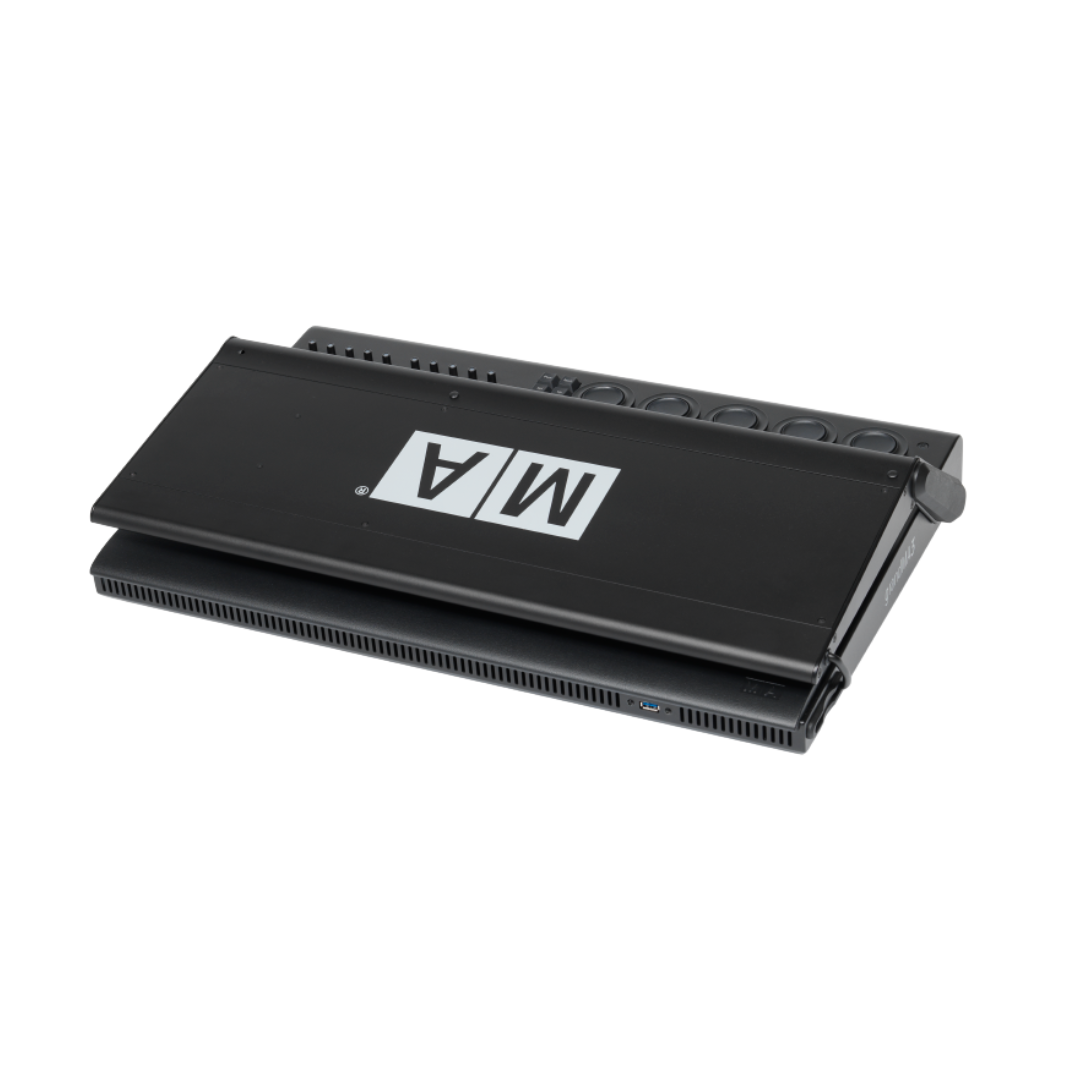

•  661 x 429 x 160 mm (width x depth x height, folded)
• 661 x 563 x 325 (max. 410) mm (width x depth x height, unfolded)


NET WEIGHT

• 16 kg

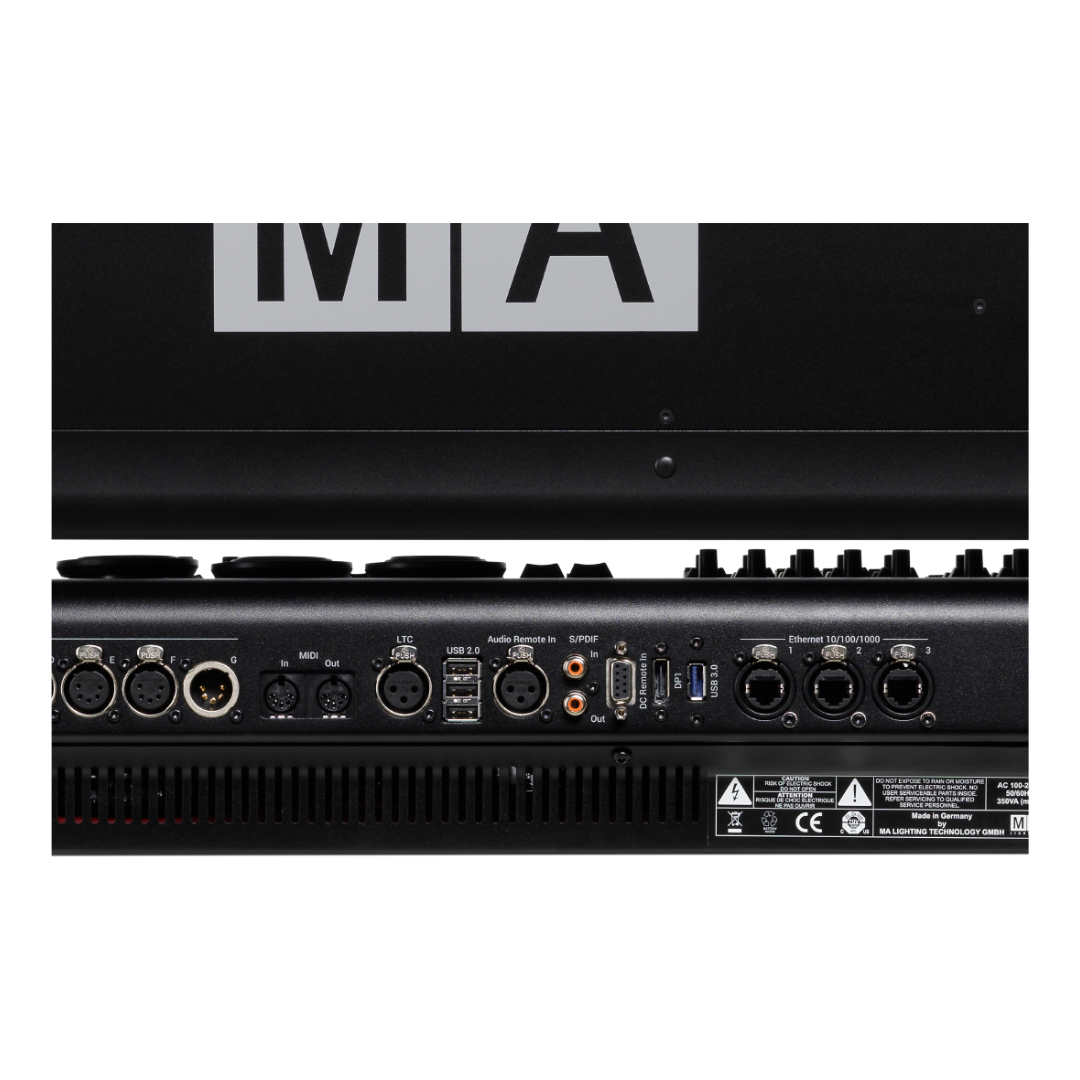

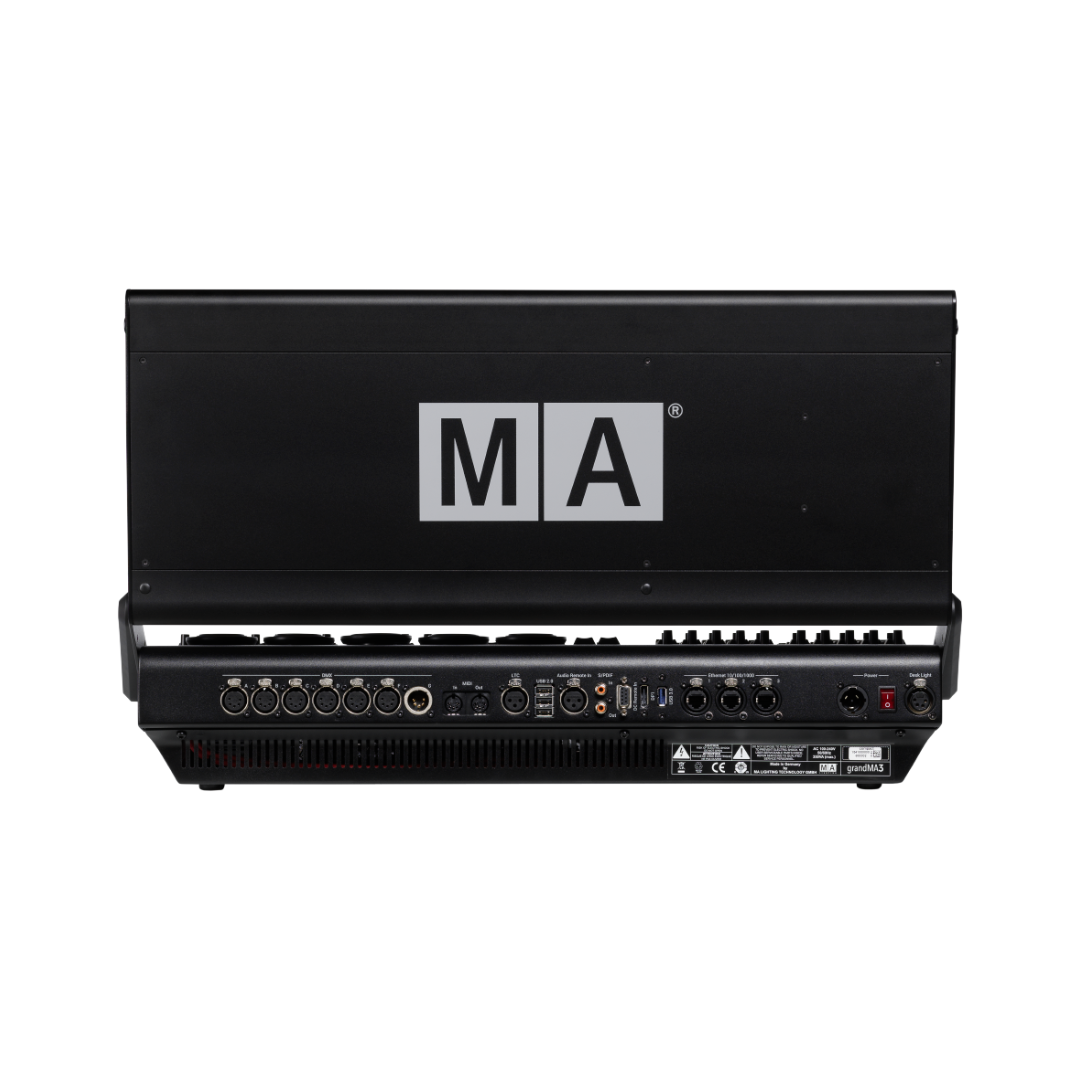

CONNECTORS

• 1 x powerCON TRUE1
• 3 x etherCON/RJ45
• 6 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode (3pin XLR female)
• 1 x Audio In (3pin XLR female)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 1 x DisplayPort 1.2 for external screens
• 2 x S/PDIF In and Out
• 3 x USB 2.0 (type A)
• 2 x USB 3.0 (type A)
• 1 x LED desk light (4pin XLR female)
